─ 13 ─

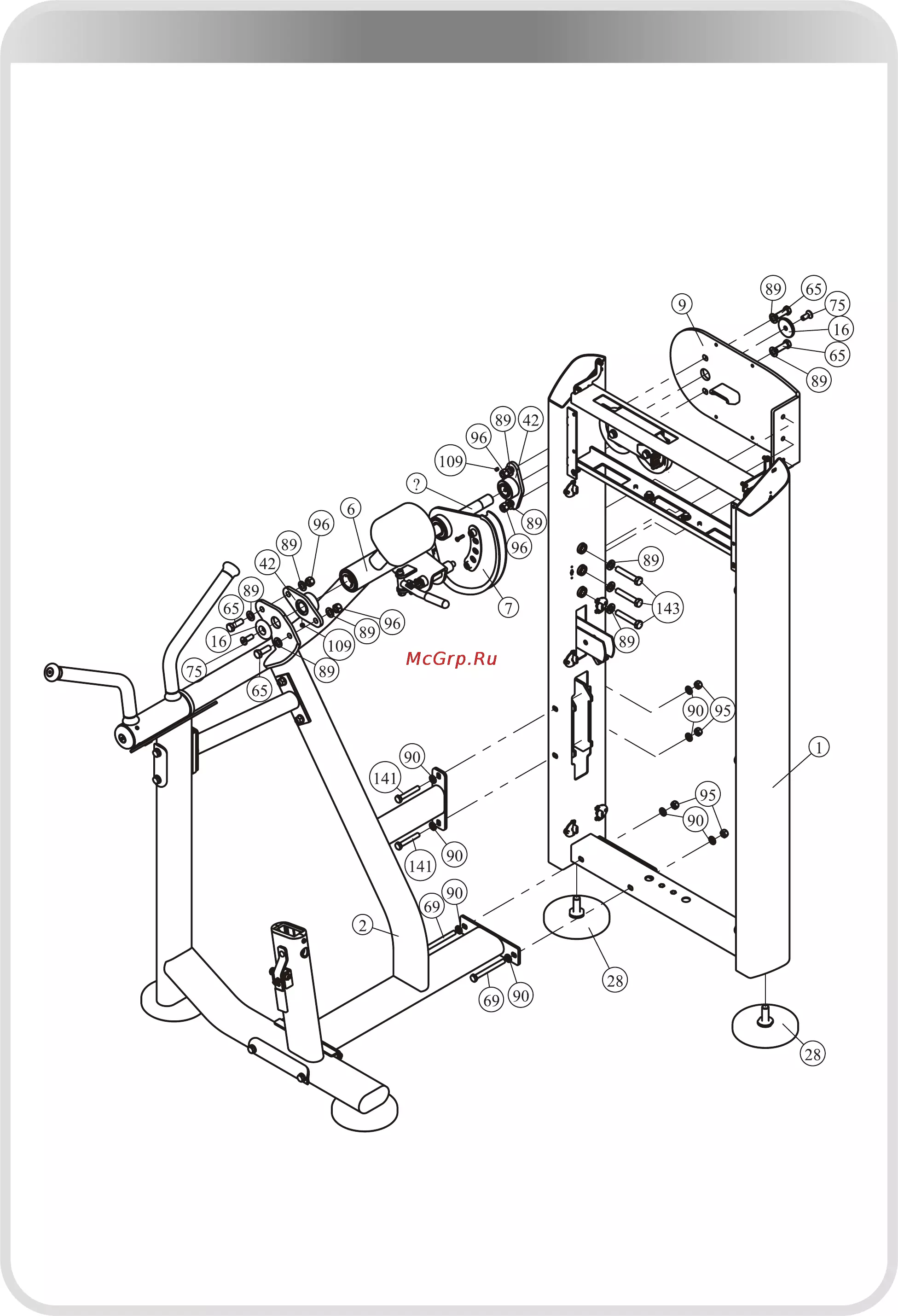

Assembly

Here is the assembly instruction for 150LBS Weights !

150LBS Weight

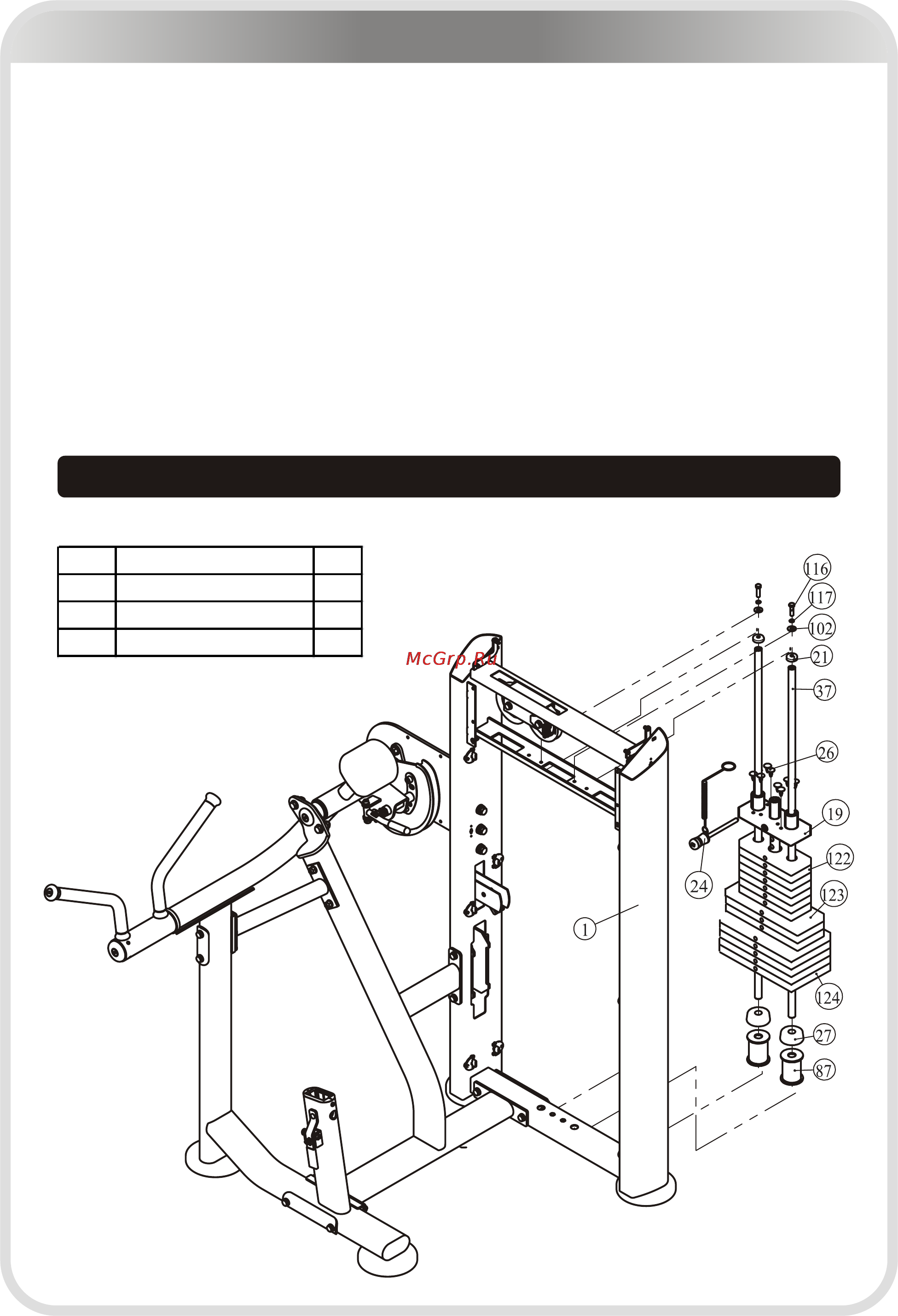

STEP 3

1. Attach:

two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#27)

●

two 19*1177 Guide Rods (#37)

● two Weight Stack Spaces (#87) ● five Weight Plate 15LBS (#124)

● three Weight Plate 10LBS (#123) ● seven Weight Plate 5LBS (#122)

● one Top Plate (#19)

to the Weight Stack Frame (#1) using:

●

two 8 Spring Washers (#117)

two M8*30 HHB (#116)

● two Φ9*Φ22*1.6 Flat Washers (#102) ● two Φ29*Φ19*10 Rubber Plugs (#21)

2. Attach the Selector Pin W/Coil (#24) to the Top Plate (#19).

3. Attach eight Φ8*Φ20*23 Buttons (#26) to the Top Plate (#19).

Note: Wrench Tighten bolts and Nylon Lock nuts.

Item Description Qty

122 Weight Plate 5LBS 7

123 Weight Plate 10LBS 3

124 Weight Plate 15LBS 5
