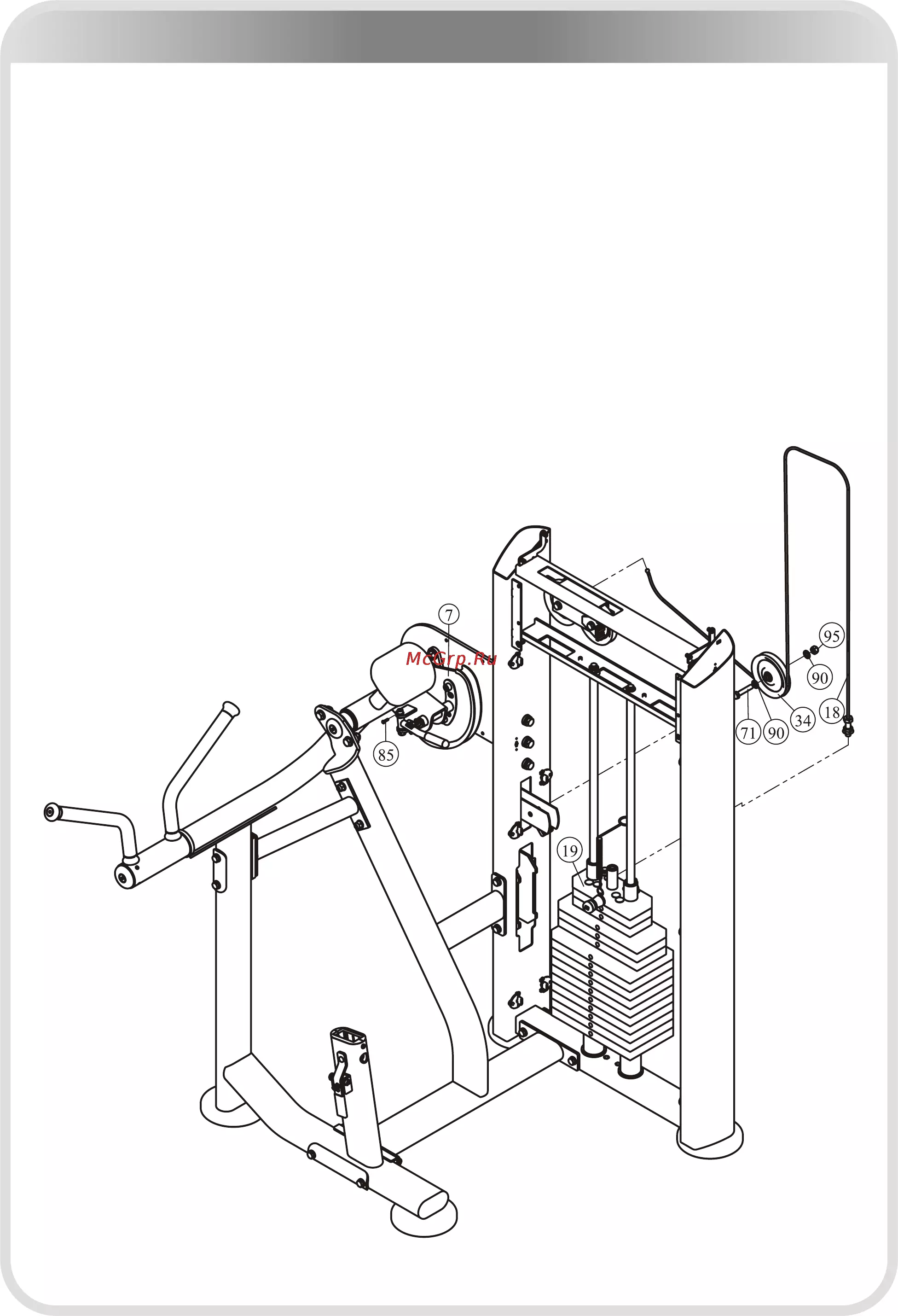

Assembly

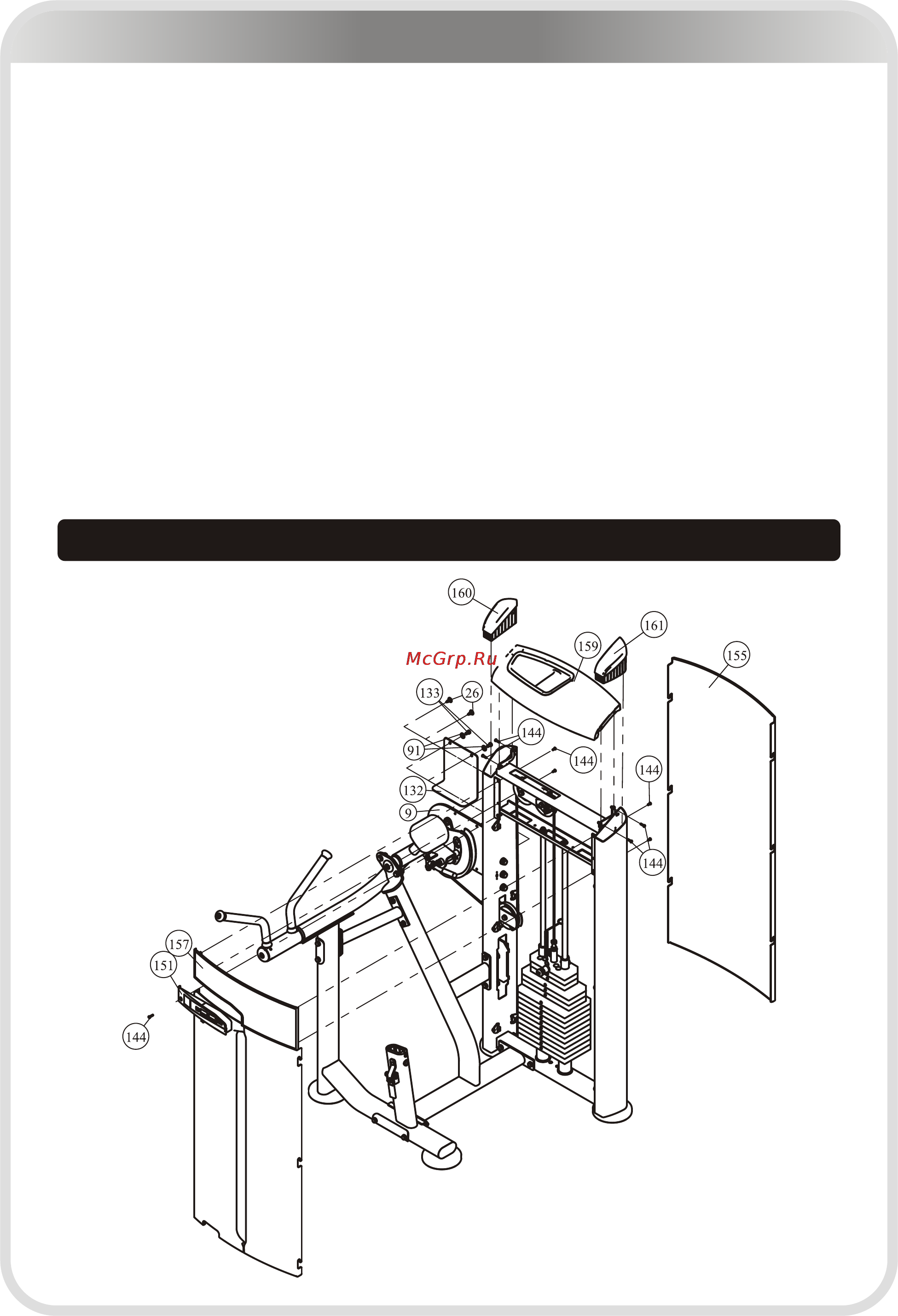

STEP 5

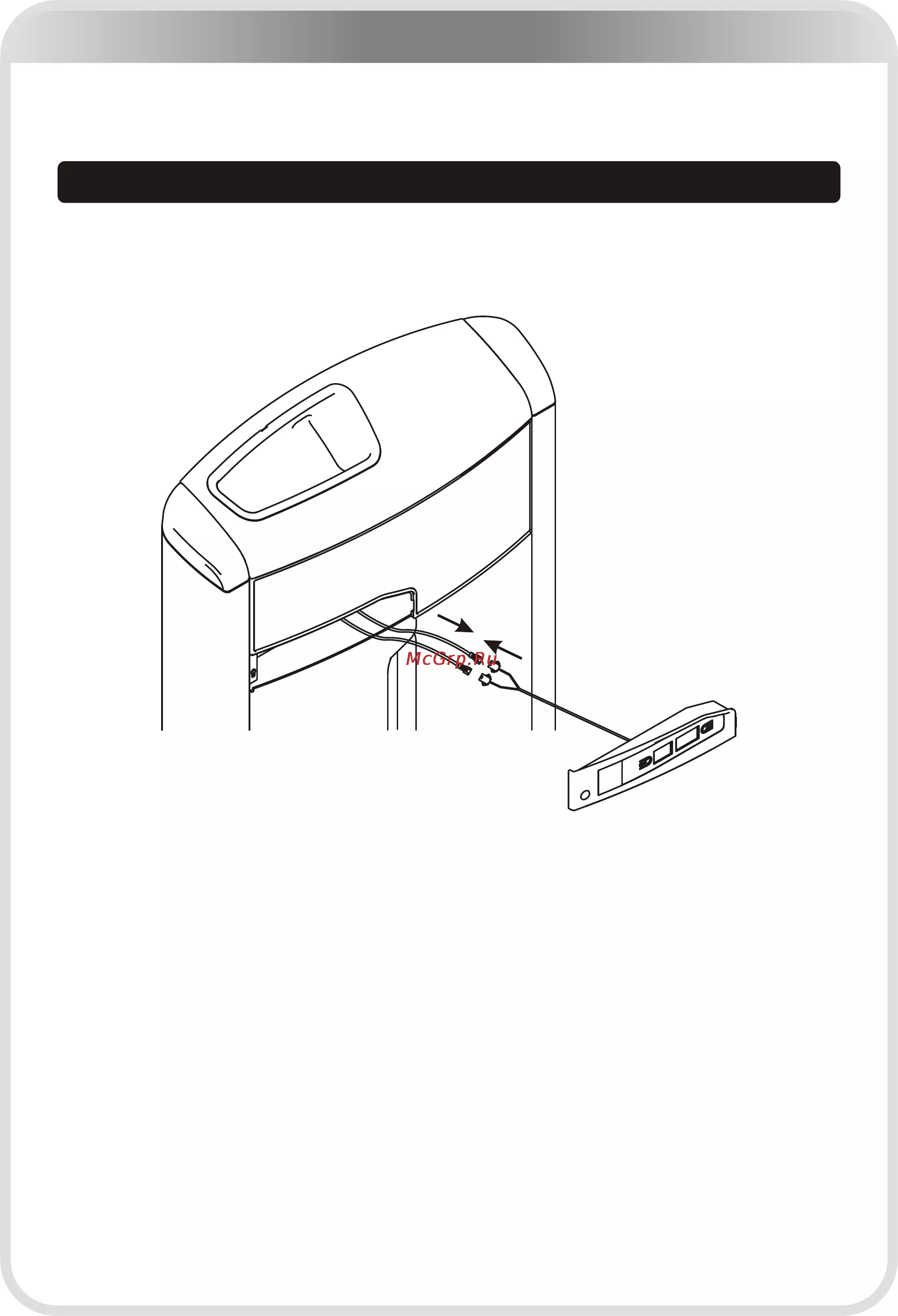

Here is the assembly instruction for Console PCB !

1. Attach one Front Shroud (#156) to the Weight Stack Frame (#1).

2. Attach one Rear Shroud (#155) to the Weight Stack Frame (#1).

3. Attach the Top Front Shroud (#157) and Console PCB (#151) to the Weight Stack

Frame (#1) using:

● five M5*12 Screws (#144)

4. Attach the Top Cover (#159) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#144)

5. Attach the Left Plug (#160) and Right Plug (#161) to the Weight Stack Frame (#1).

6. Attach one Baffle Plate (#132) to the Main Bracket (#9) using:

● two Hex Head Bolt M8*15 (#133)

● two Flat Washer Φ9*Φ16*1.6 (#91)

7. Attach two Button (#26) to the Main Bracket(#9).

Note: Wrench Tighten bolts and Nylon Lock nuts.
