─ 12 ─

Assembly

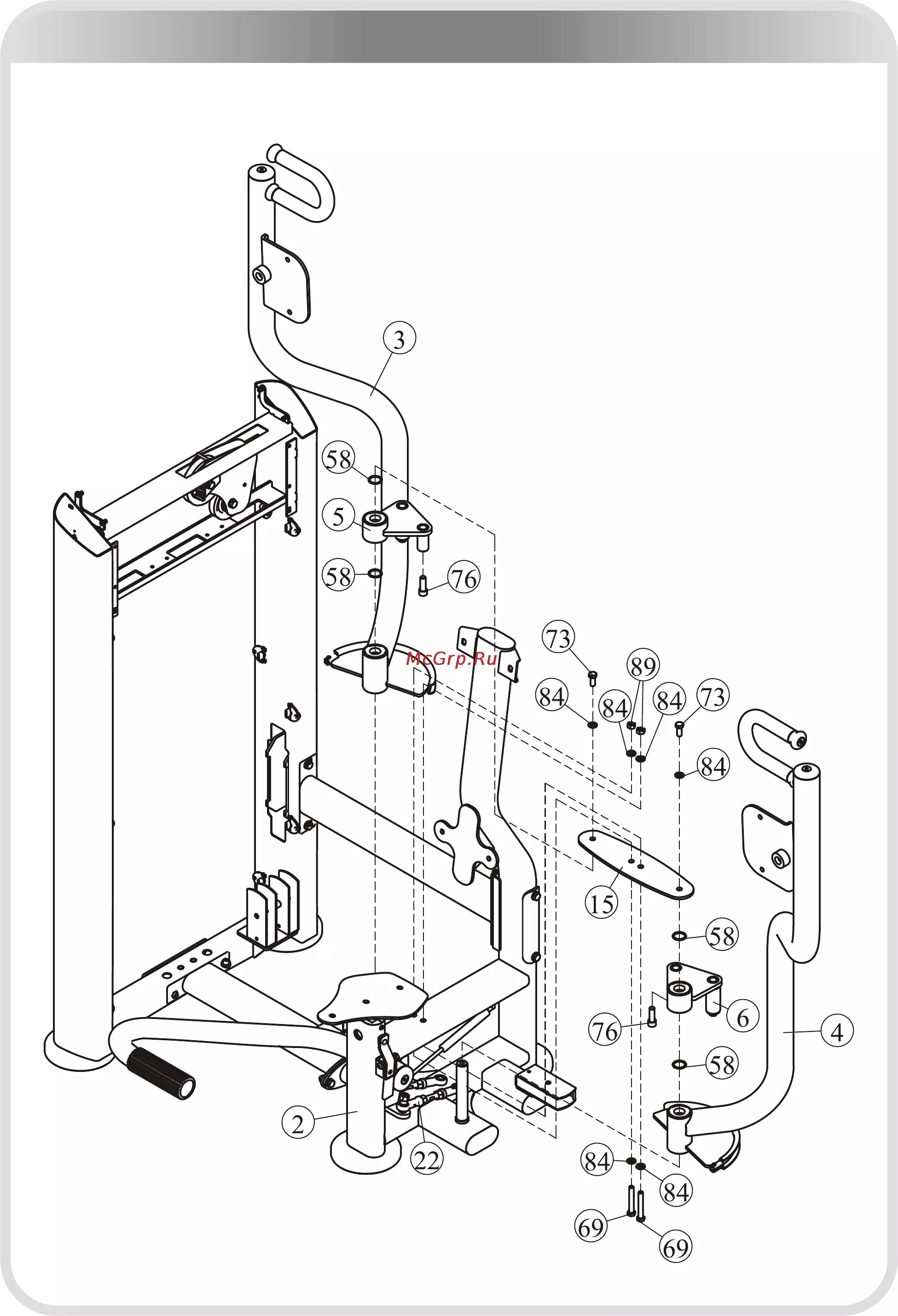

1. Attach the Right Lat Arm (#3) & Right Bracket (#5) to the Main Frame (#2) using:

● two Φ31*Φ25.5*1.5 Big Washers (#58)

2. Attach the Left Lat Arm (#4) & Left Bracket (#6) to the Main Frame (#2) using:

● two Φ31*Φ25.5*1.5 Big Washers (#58)

3. Attach the Oval Flat (#15) to the Main Frame (#2) using:

● two M10*75 HHB (#69)

● two M10*25 HHB (#73)

● six Φ11*Φ20*2 Flat Washer (#84)

● two M10 Nylon Lock Nut (#89)

4. Attach the Right Bracket (#5) to the Rod Assembly (#22) using:

● one M12*35 SHCS (#76)

5. Attach the Left Bracket (#6) to the Rod Assembly (#22) using:

● one M12*35 SHCS (#76)

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 4

1. Attach:

● two Φ19*1177 Guide Rod (#27)

● two Weight Stack Space (#29)

● two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#35)

● ten Weight Plate 15LBS (#106)

● three Weight Plate 10LBS (#105)

● two Weight Plate 5LBS (#104)

● one Top Plate (#26)

to the Weight Stack Frame (#1) using:

● two M8*30 HHB (#110)

● two Φ8 Spring Washers (#111)

● two Φ9*Φ22*1.6 Flat Washer (#115)

● two Φ29*Φ19*10 Rubber Plug (#109)

2. Attach the Selector Pin W/Coil (#25) & eight Button (#32) to the Top Plate (#26).

Note: Wrench Tighten bolts and Nylon Lock nuts.

STEP 3
