Assembly

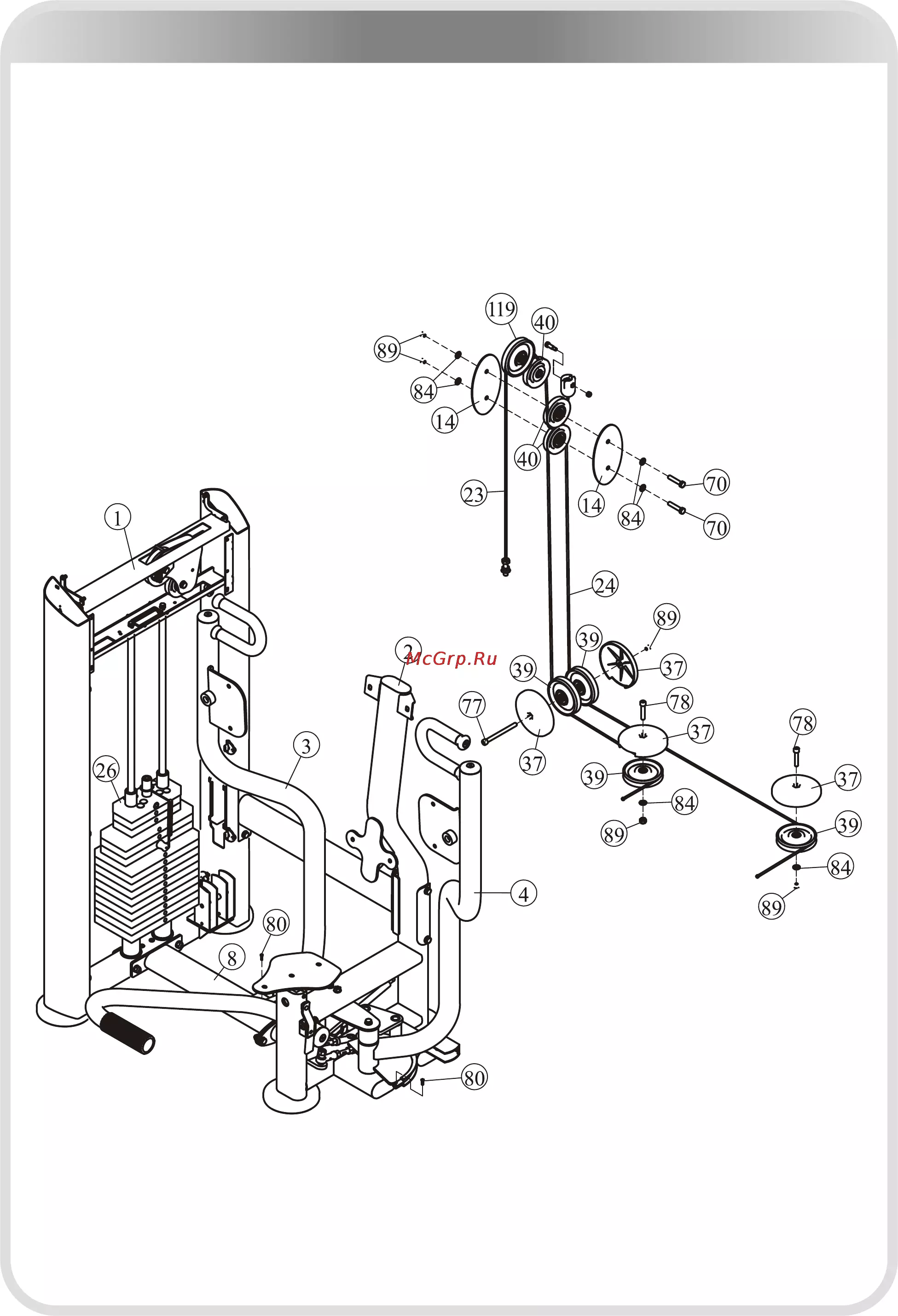

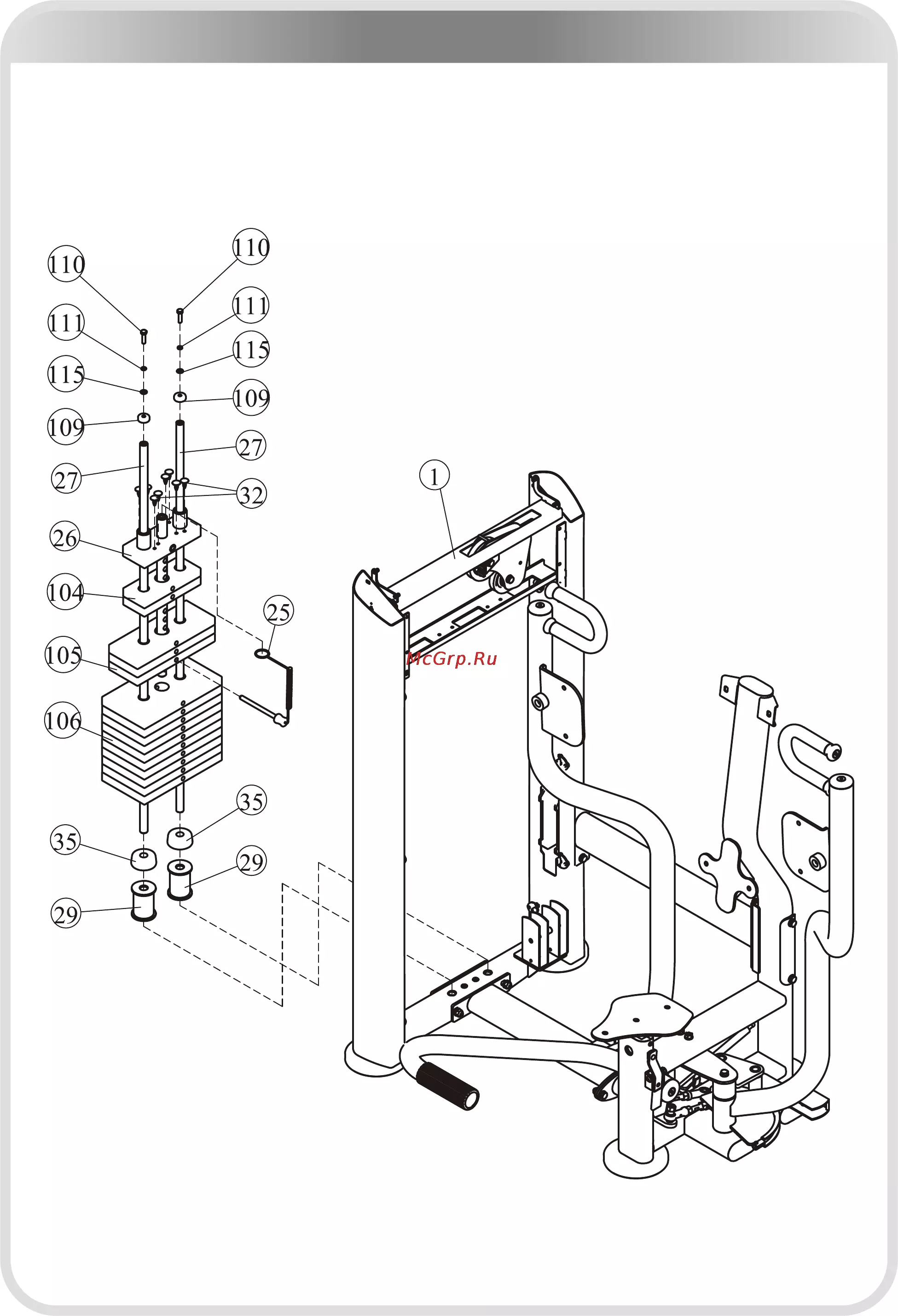

STEP 5

1. Attach the Cable_1 (#23) to the Top Plate (#26), and go through two 4.5" Pulley

(#119 & #40).

2. Attach the Cable_1 (#23) to the Weight Stack Frame (#1) using screw on the

Cable_1.

3. Attach two 3.5" Pulley (#40) to two Mobile Bracket (#14) using:

● two M10*50 HHB (#70)

● four Φ11*Φ20*2 Flat Washer (#84)

● two M10 Nylon Lock Nut (#89)

4. Attach two 4.5" Pulley (#39) to the Weight Stack Frame (#1) using:

● two Pulley Cover (#37)

● one M10*120 SHCS (#77)

● one M10 Nylon Lock Nut (#89)

5. Attach one 4.5" Pulley (#39) to the Main Frame (#2) using:

● one Pulley Cover (#37)

● one M10*50 SHCS (#78)

● one Φ11*Φ20*2 Flat Washer (#84)

● one M10 Nylon Lock Nut (#89)

6. Attach one 4.5" Pulley (#39) to the Bottom Cross Brace (#8) using:

● one Pulley Cover (#37)

● one M10*50 SHCS (#78)

● one Φ11*Φ20*2 Flat Washer (#84)

● one M10 Nylon Lock Nut (#89)

7. Attach the Cable_2 (#24) to the Right Lat Arm (#3) & Left Lat Arm (#4) using:

● two M4*15 SHCS (#80)

Note: Wrench Tighten bolts and Nylon Lock nuts.
