─ 17 ─

Assembly

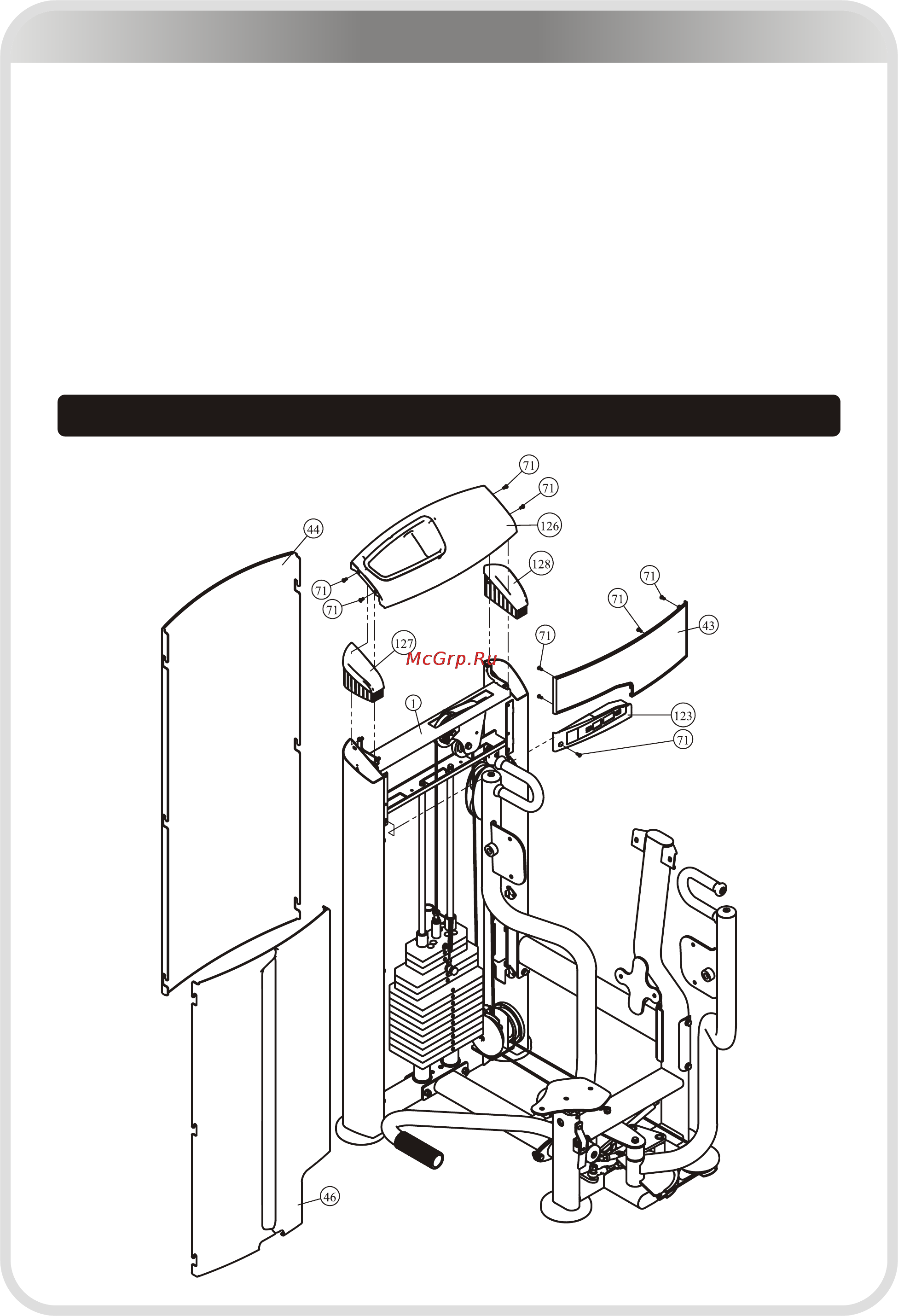

1. Attach one Front Shroud (#46) to the Weight Stack Frame (#1).

4. Attach the Top Cover (#126) to the Weight Stack Frame (#1) using:

● four M5*12 Screws (#71)

5. Attach the Left Plug (#127) and Right Plug (#128) to the Weight Stack Frame (#1).

Note: Wrench Tighten bolts and Nylon Lock nuts.

Attach the Top Front Shroud (#43) and the Console PCB (#123) to the Weight

Stack Frame (#1) using:

● five M5*12 Screws (#71)

Attach one Rear Shroud (#44) to the Weight Stack Frame (#1).

STEP 6

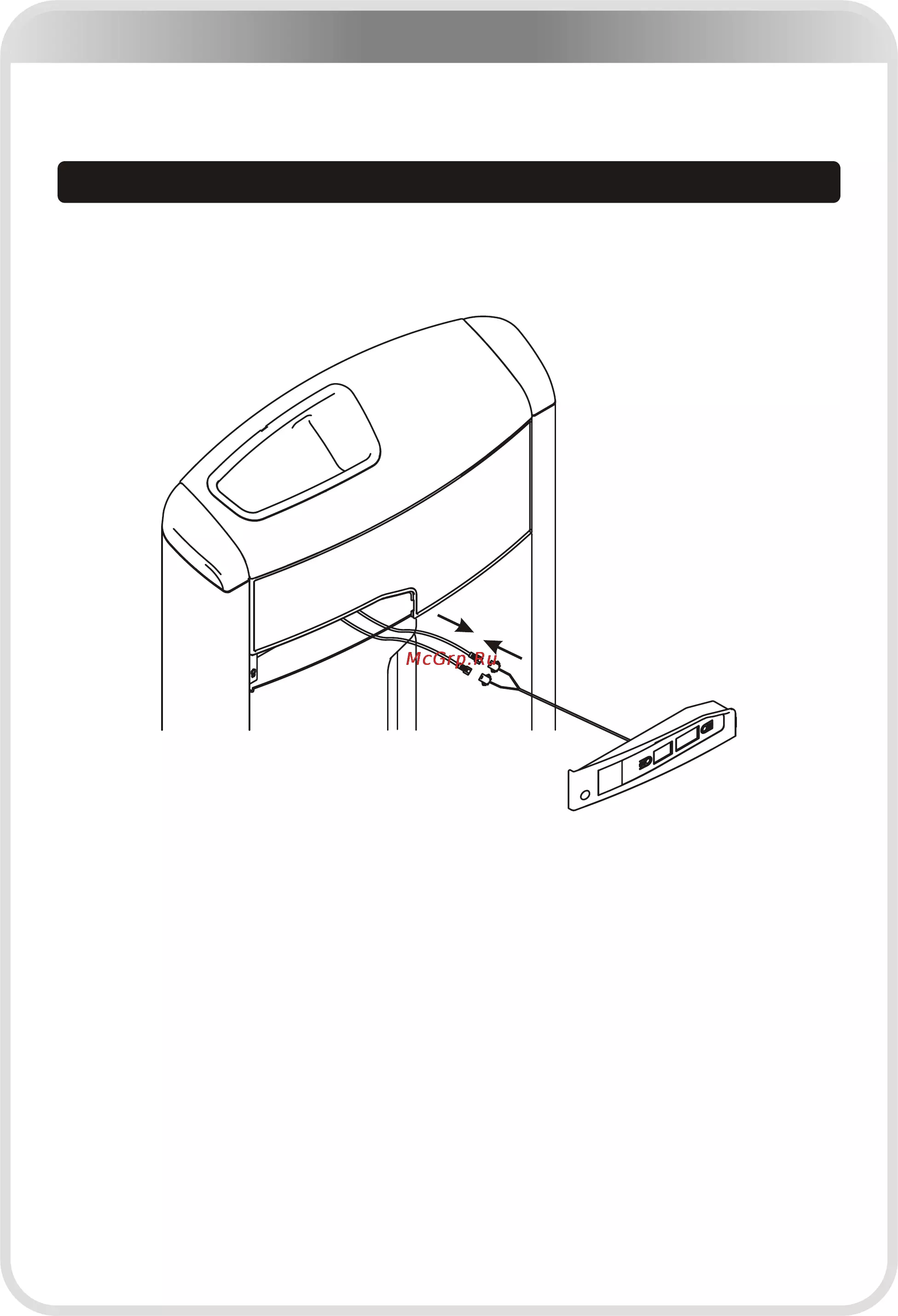

Here is the assembly instruction for Console PCB !
