─ 12 ─
Assembly
STEP 2

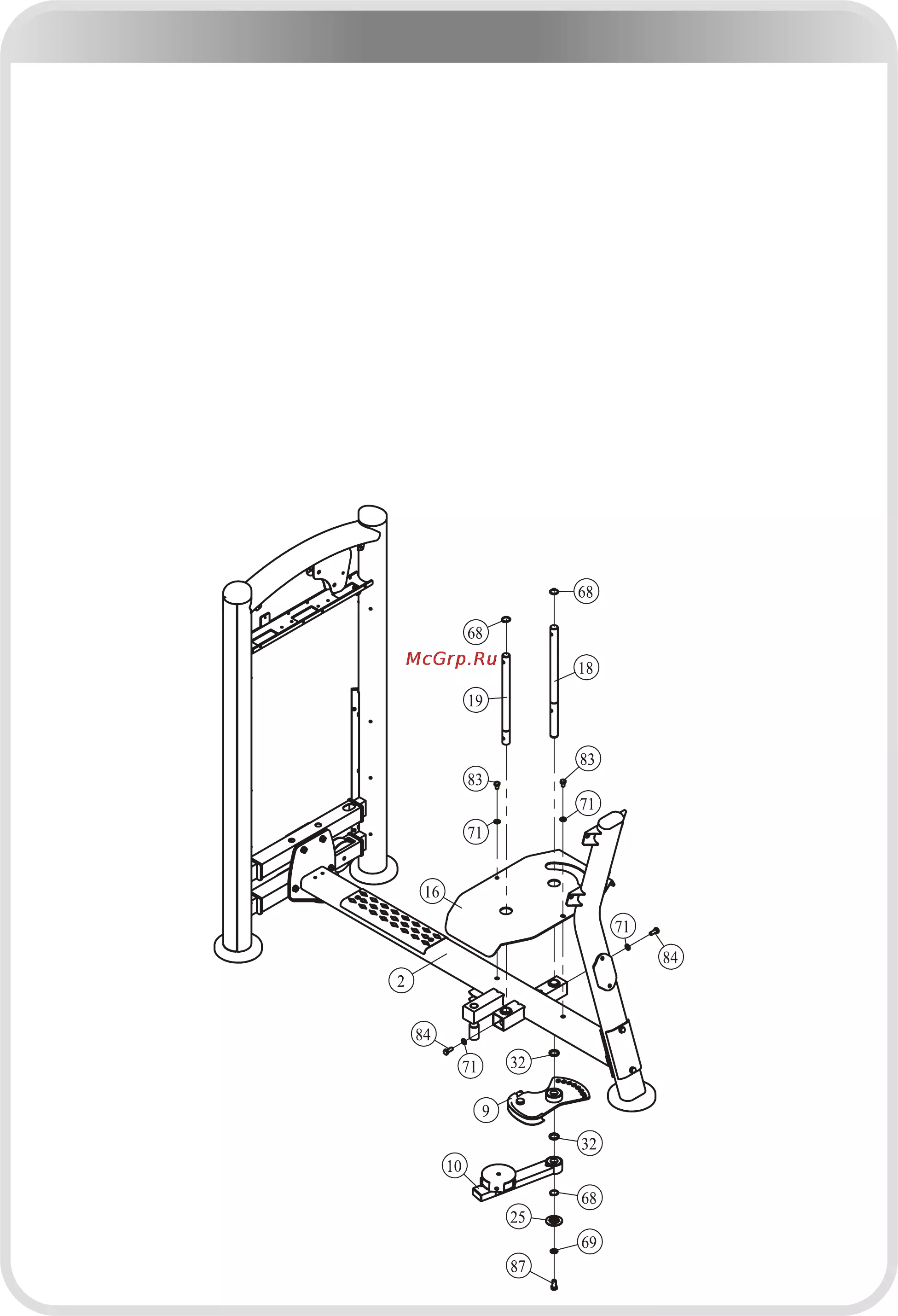

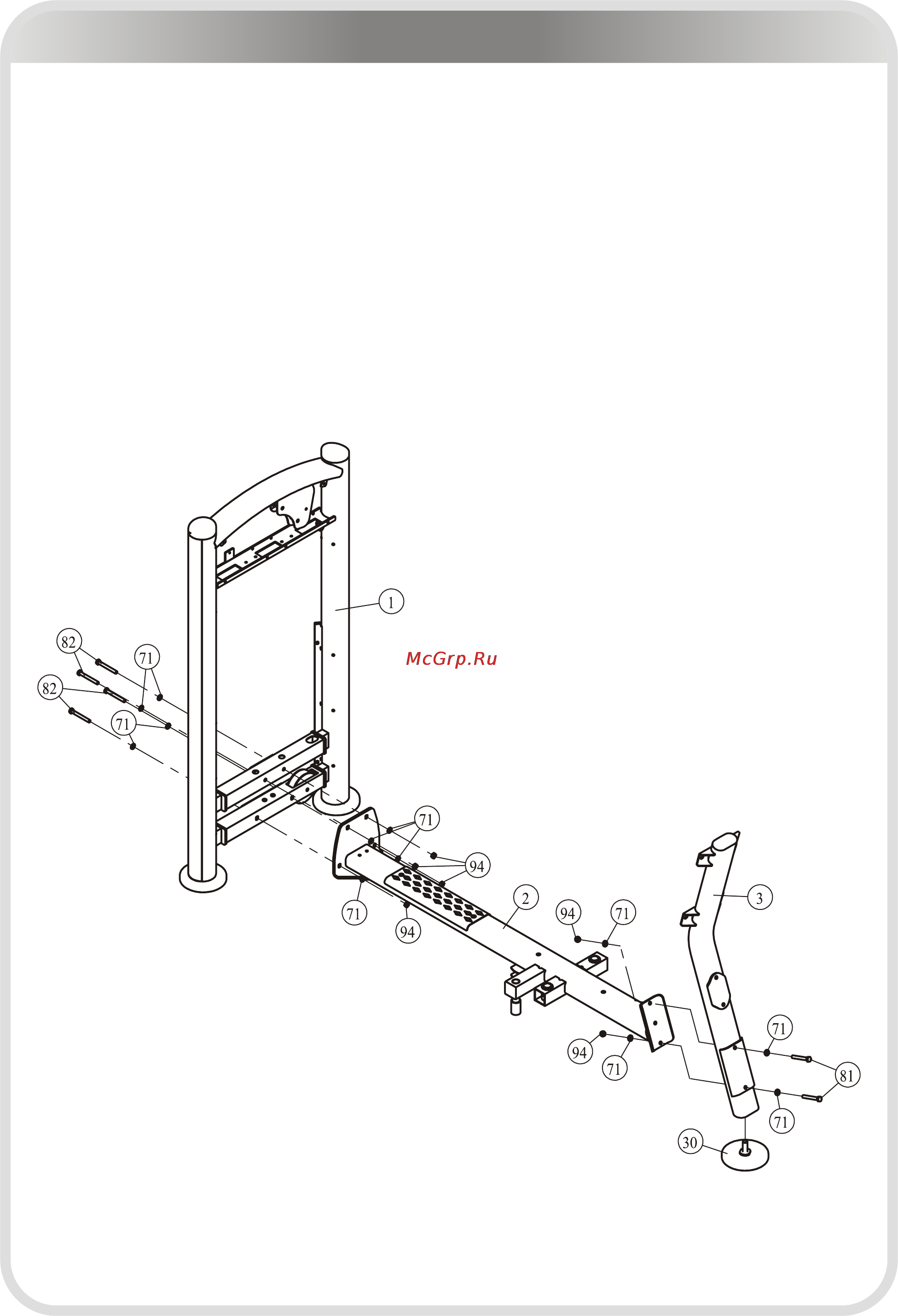

1. Attach one Adjustable Foot plate (#30) to the Rear Frame (#3).
2. Attach the Bottom Cross Brace (#2) to the Weight Stack Frame (#1) and the
Rear Frame (#3) using:
four M10*85 HHB (#82) two M10*80 HHB (#81)
twelve Φ11*Φ20*2 Flat Washers (#71) six M10 Nylon Lock Nuts (#94)
Note: Hand tighten Βolts and Nylon Lock nuts.
