─ 20 ─

AssemblyAssembly

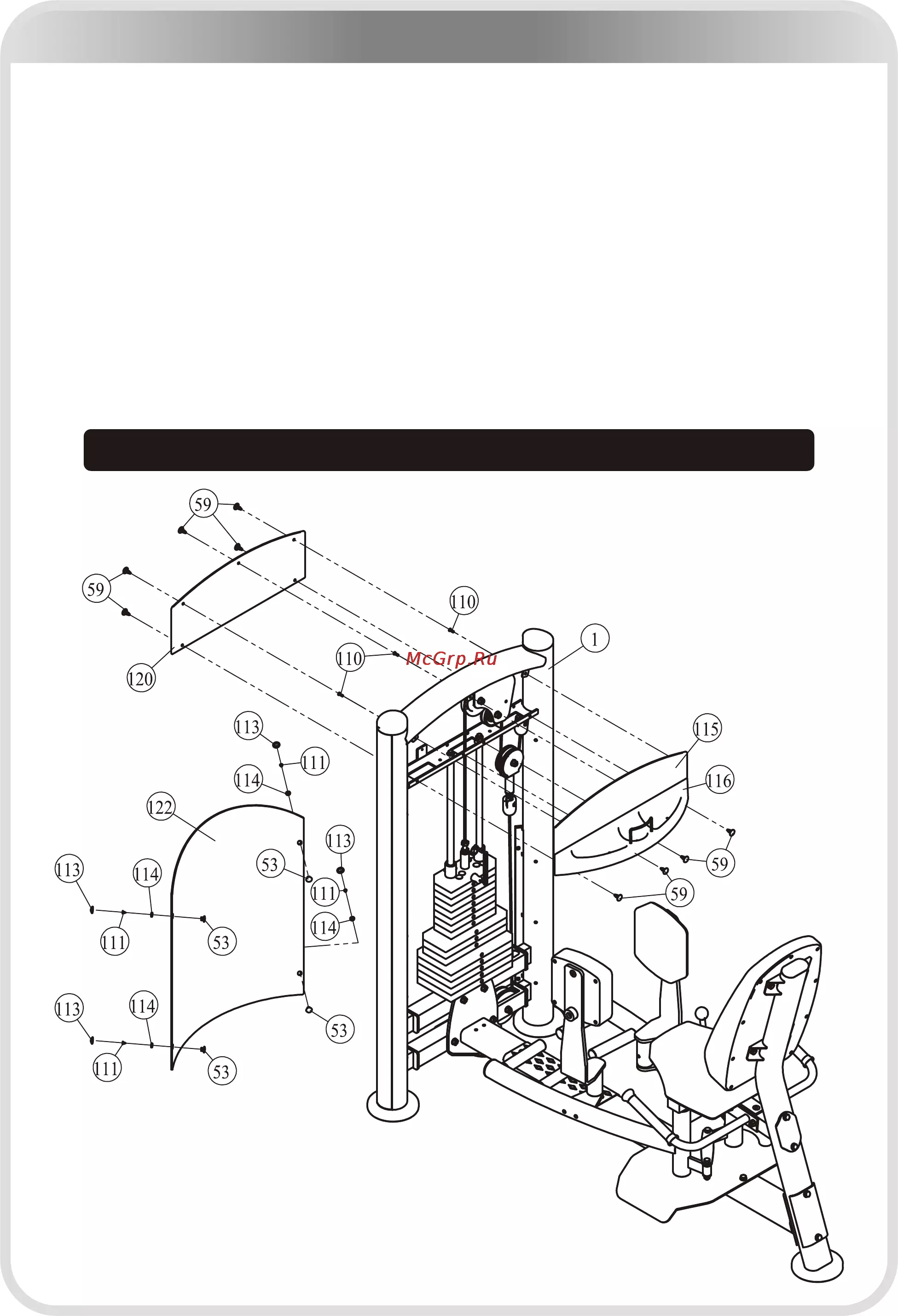

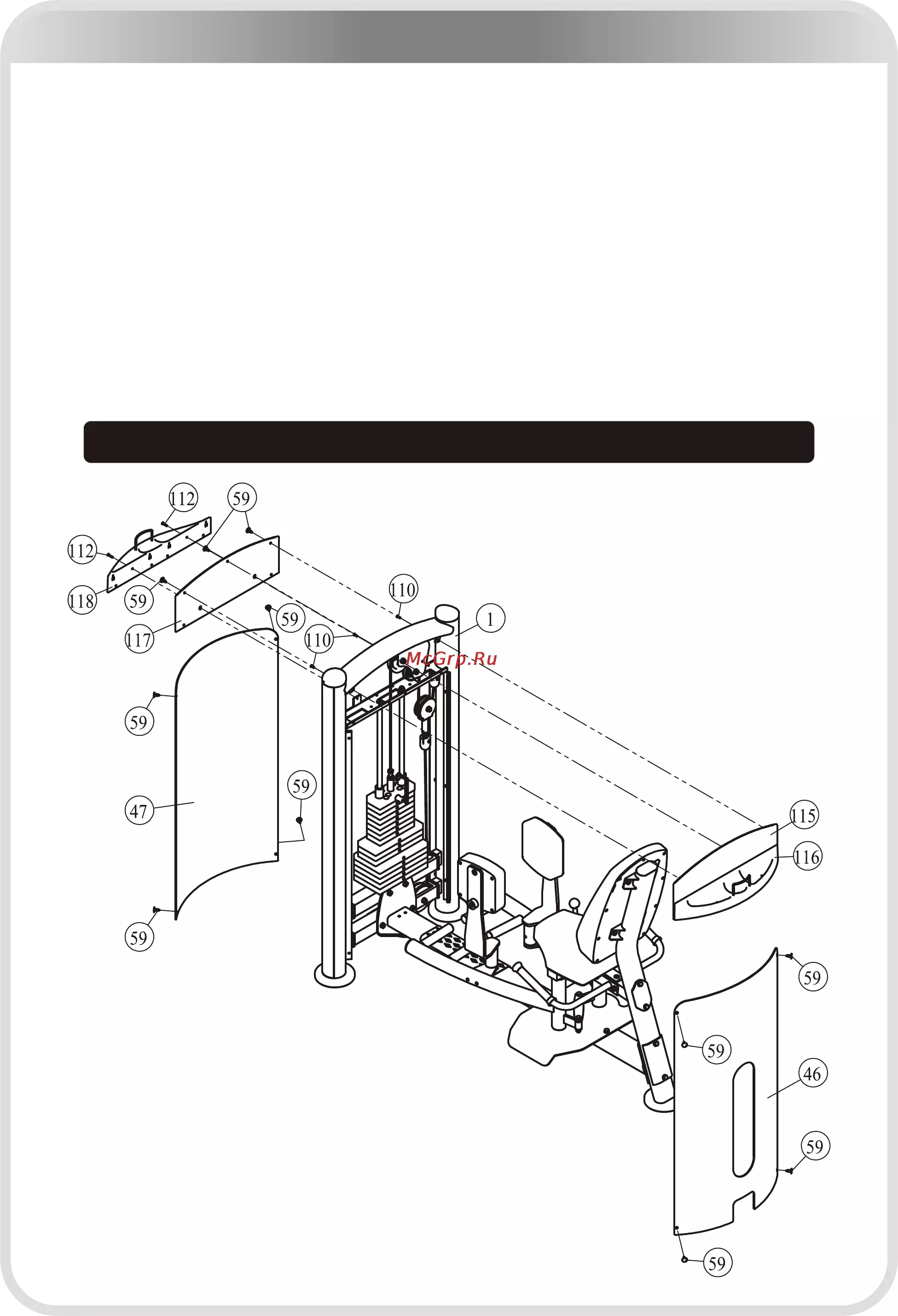

STEP 8

1. Attach the Shroud (#122) to the Weight Stack Frame (#1) using:

four Φ18*12 Connect Buttons (#53) four Φ13*3 Plastic Washers (#114)

four ST4.2*10 Self-Tapping Screws (#111) four Φ21*5.7 Plastic Covers (#113)

2. Attach the Top Front Shroud (#115) and the Support (#116) to the Weight

Stack Frame (#1) using:

four Φ8*Φ20*23 Buttons (#59) three M5*16 Flat Philips Screws (#110)

3. Attach the Top Rear Shroud (#120) to the Weight Stack Frame (#1) using:

five Φ8*Φ20*23 Buttons (#59)

Note: Wrench Tighten Βolts and Nylon Lock nuts.

Here is the assembly instruction for Shor t Shroud !
