AssemblyAssembly

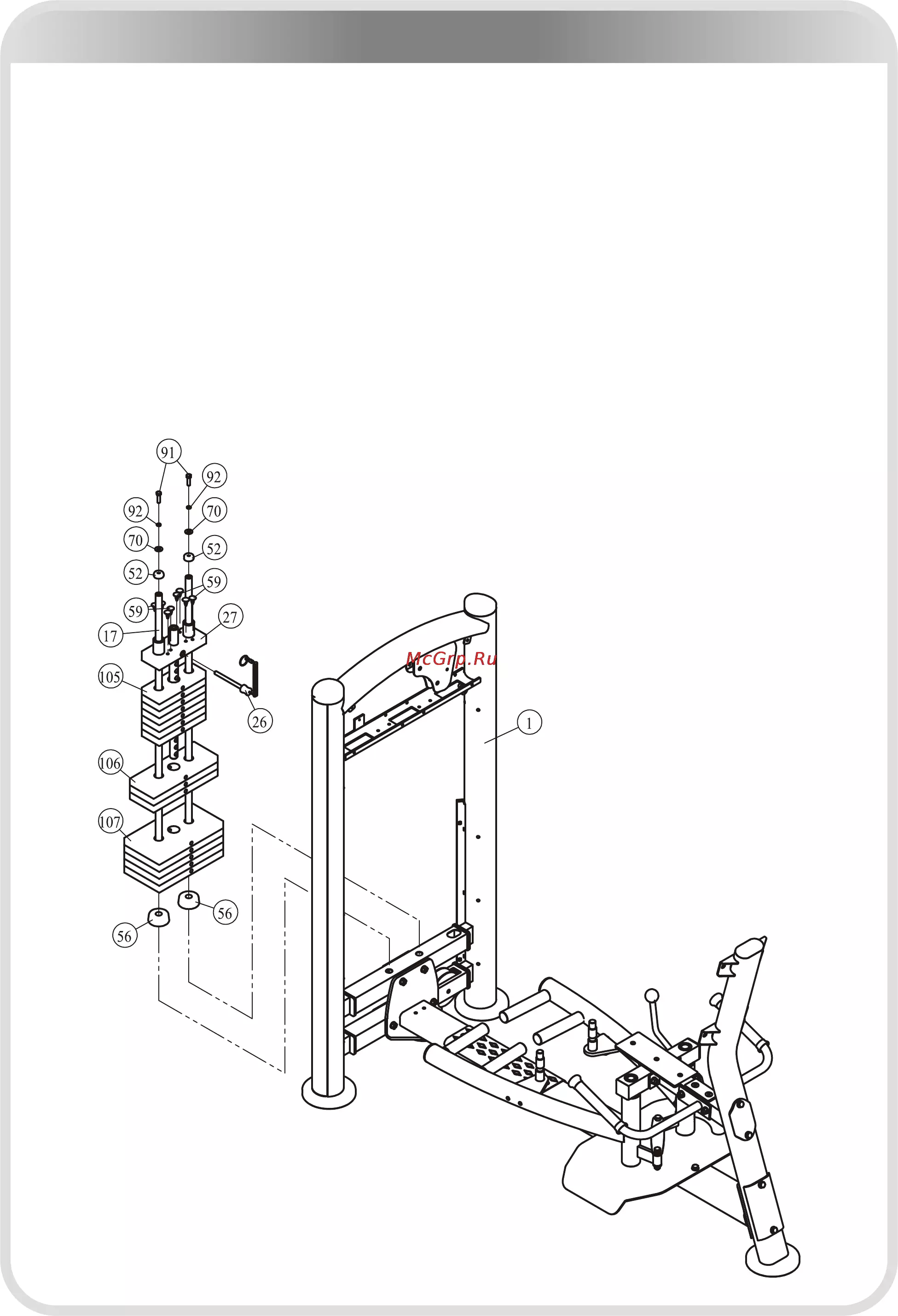

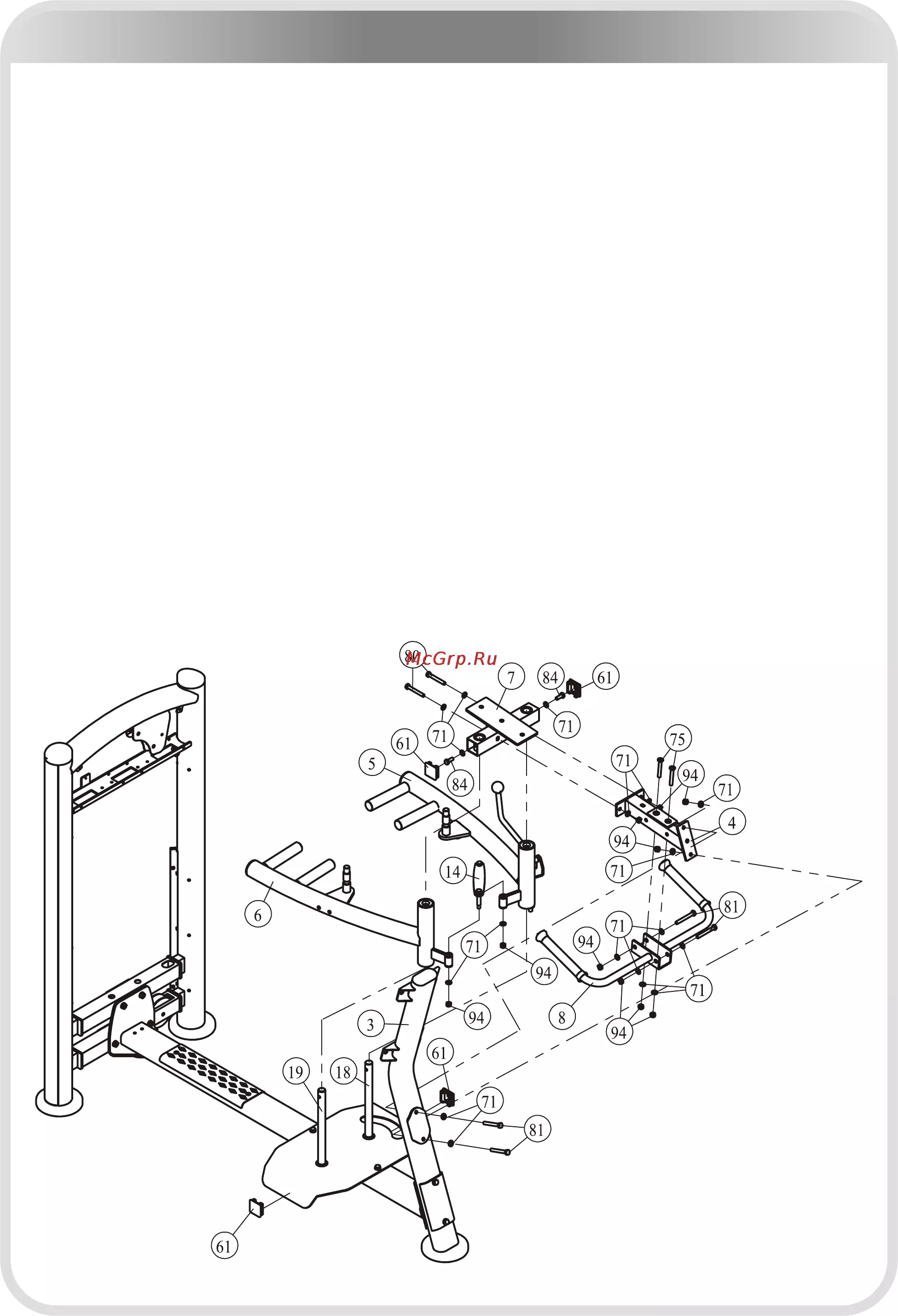

STEP 5

1. Attach:

two Guide Rod (#17) two Φ63.5*Φ19*25.4 Weight Rubber Bumper (#56)

five Weight Plate 15LBS (#107) three Weight Plate 10LBS (#106)

seven Weight Plate 5LBS (#105) one Top Plate (#27)

to the Weight Stack Frame (#1) using:

two M8*30 HHB (#91) two Φ8 Spring Washers (#92)

two Φ9*Φ22*1.6 Flat Washers (#70) two Φ29*Φ19*10 Rubber Plugs (#52)

2. Attach the Selector Pin W/Coil (#26) to the Top Plate (#27).

3. Attach eight Buttons (#59) to the Top Plate (#27).

Note: Wrench Tighten Βolts and Nylon Lock nuts.
