─ 10 ─

Assembly

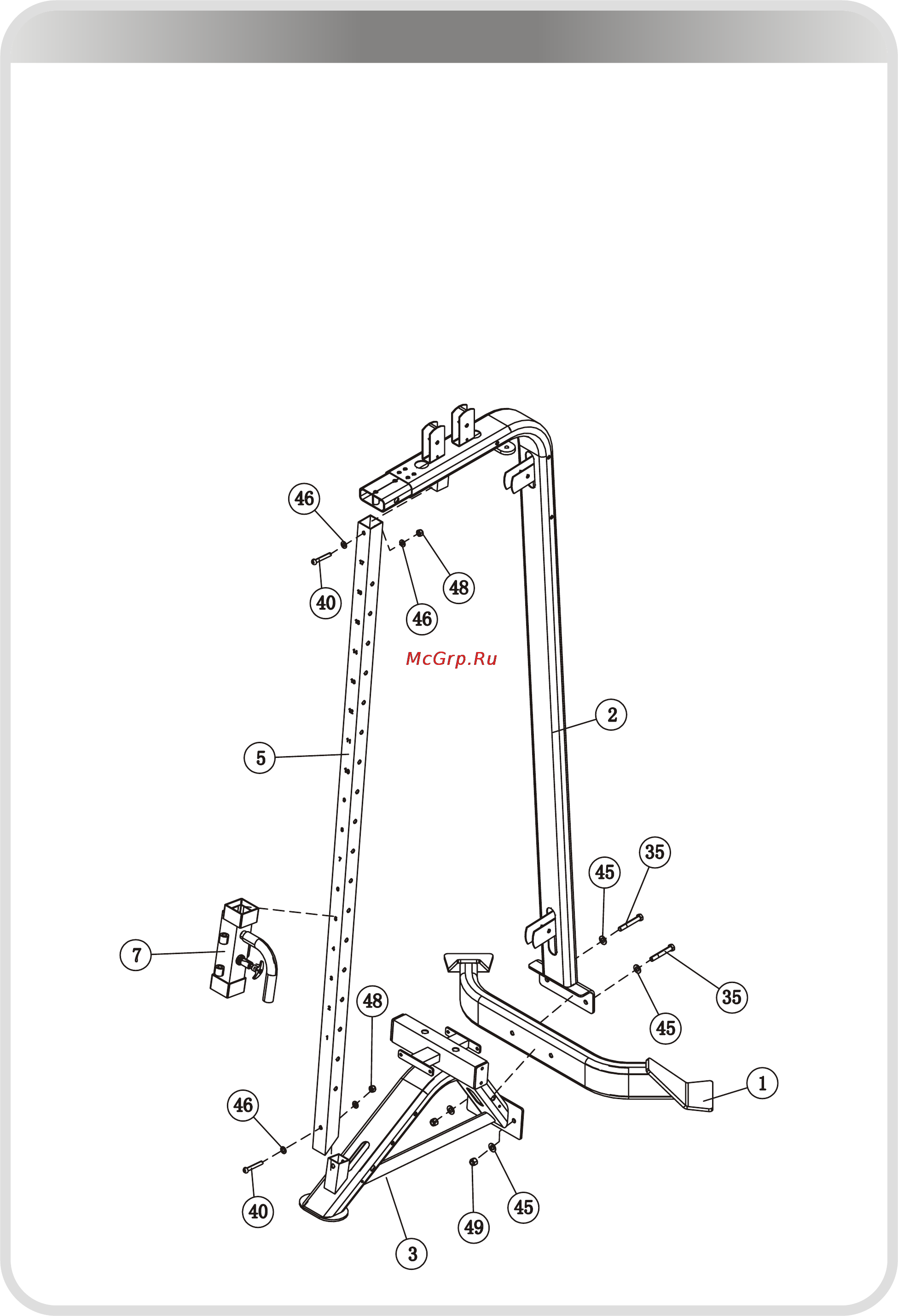

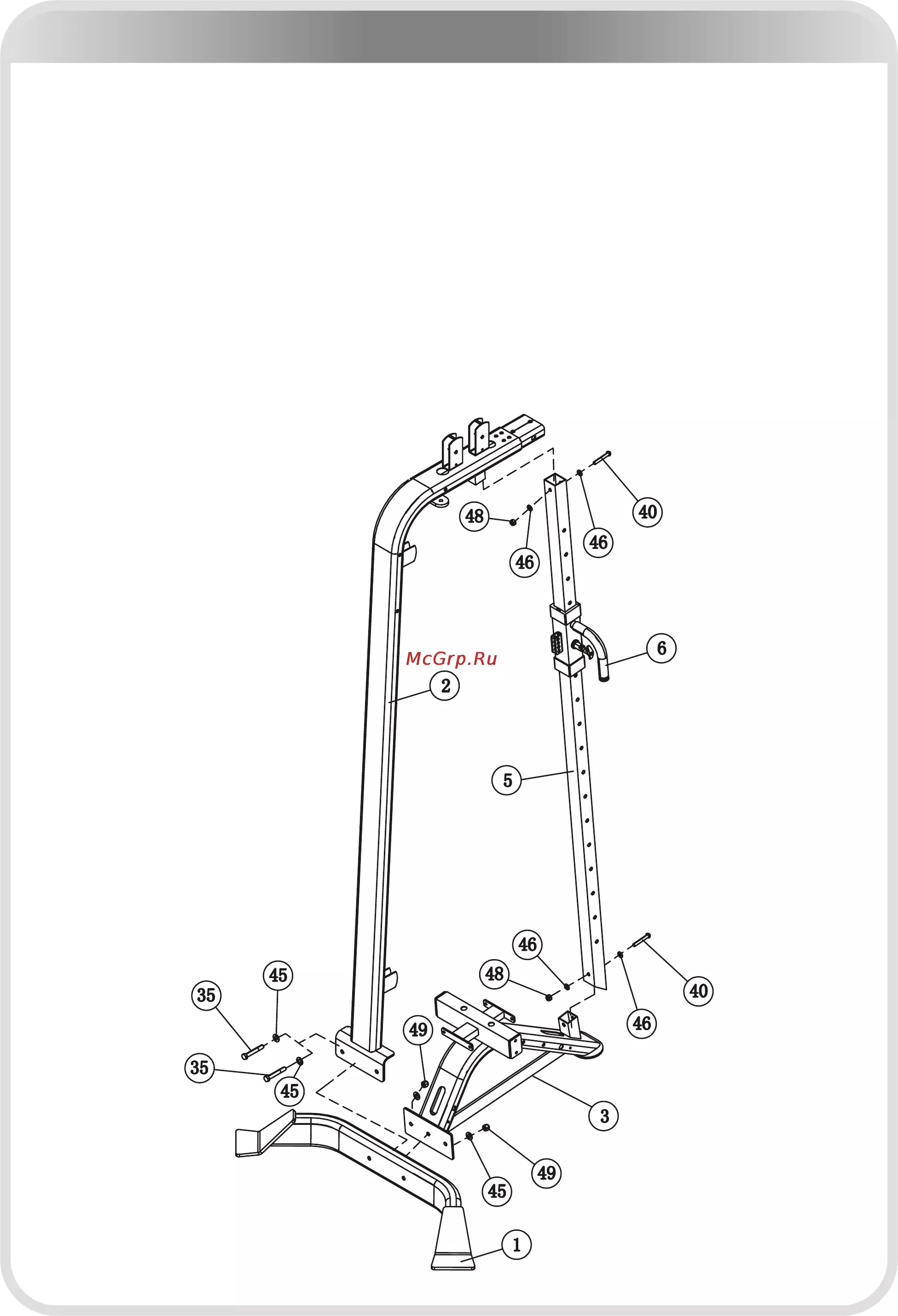

STEP 1

1. Slide right slide frame (#7) onto slide guide tube (#5) as shown and lock into

one of the holes in tube.

2. Attach inner base (#1), main base (#2), middle base (#3), slide guide tube

(#5) using:

two M10*65 HHB (#40) two M12*80 HHB (#35)

four Φ13*Φ24*1.5 washers (#45) four Φ11*Φ20*2 washers (#46)

two M10 nylon lock nuts (#48) two M12 nylon lock nuts (#49)

NOTE: Hand tighten bolts and nylon nuts until STEP 6.
