─ 14 ─

AssemblyAssembly

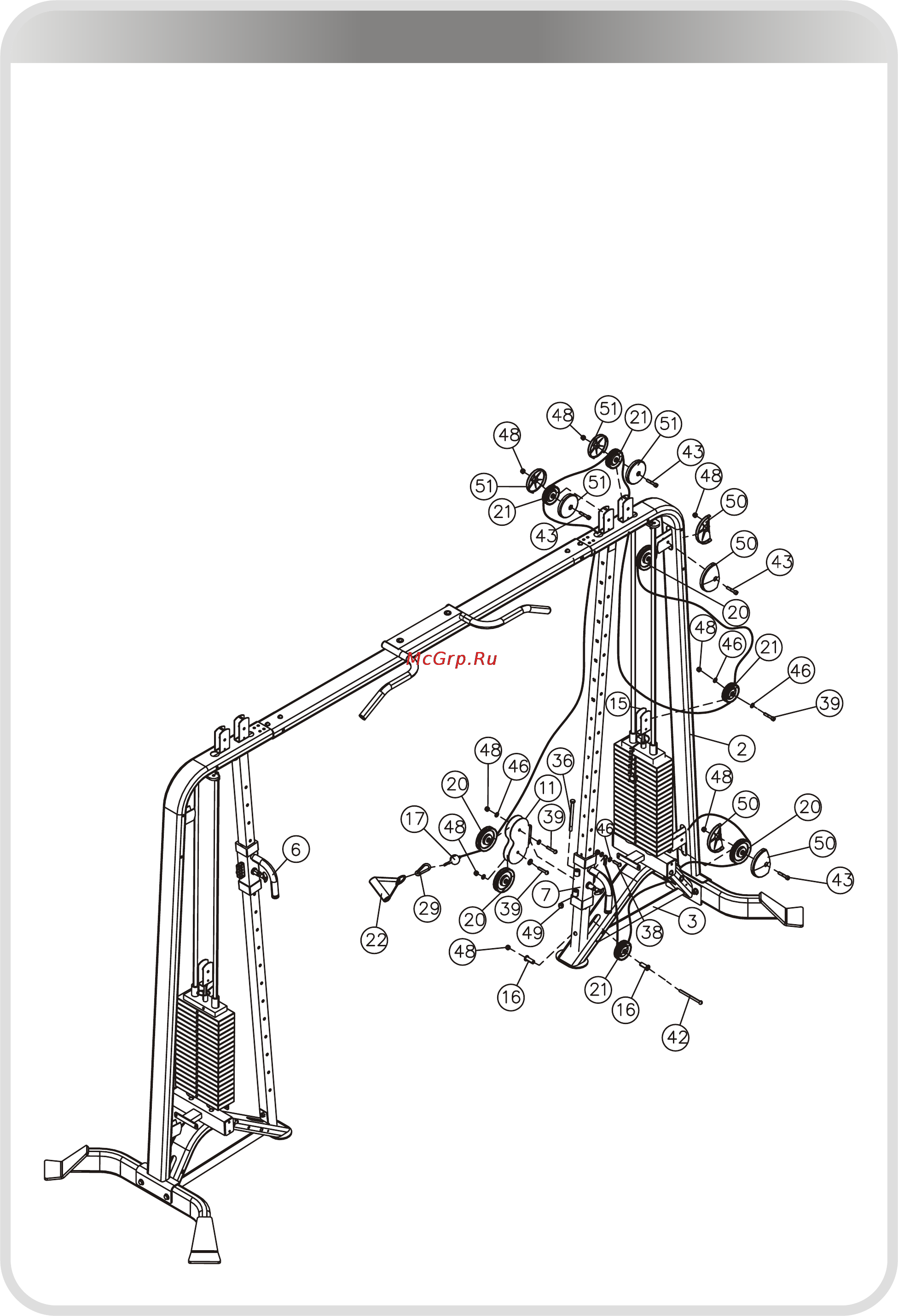

STEP 5

1. Attach double pulley block (#11) into right slide frame (#7) using:

one M12*150 HHB (#36) one M12 nylon lock nut (#49)

2. Insert Cable (#17) to pulleys and pulley covers as show using:

three M10*50 HHB (#39) four M10*50 SHCS (#43)

two M10*130 HHB (#42) one M10*35 HHB (#38)

four pulley spacers (#16) eight Φ11*Φ20*2 washers (#46)

ten M10 nylon lock nuts (#48)

3. Repeat STEP 5 on other side.
