Assembly

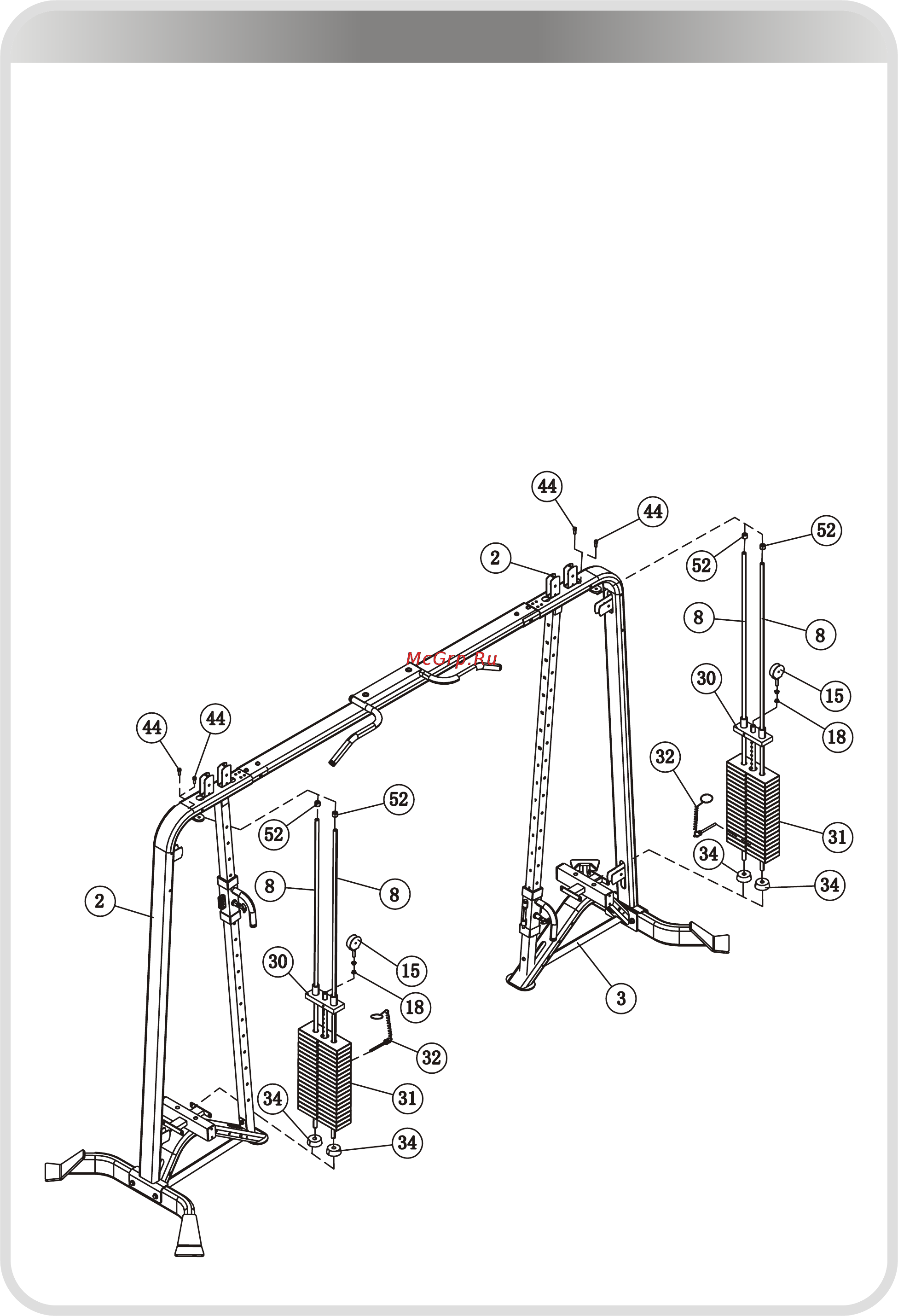

STEP 4

1. Slide weight bumper (#34) and guide rod (#8) into holes of middle base (#3).

2. Slide Weight Plate Unit (#31) (including ten Weight plate 15LBS, three Weight

plate 10LBS and two Weight plate 5LBS) onto guide rod (#8), then slide top

plate (#30) onto top of weight stack. Attach guide rod (#8) with main base (#2)

using:

two rubber caps (#52) two M10*25 SHCS (#44)

3. Attach one Swivel Pulley Block (#15) and two Jam Nut (#18) with the top

plate (#30).

4. Repeat STEP 4 on other side.
