─ 15 ─

AssemblyAssembly

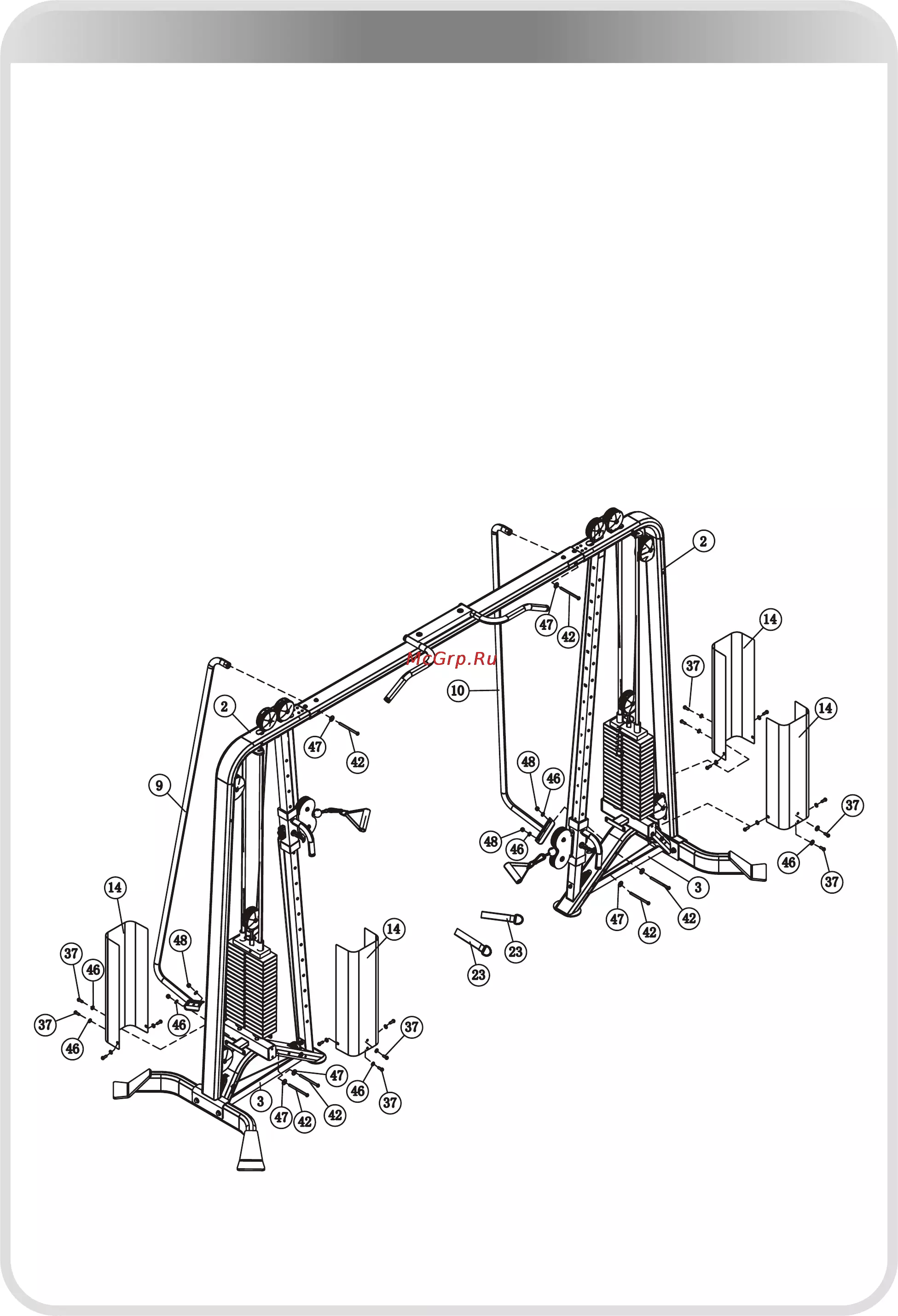

STEP 6

1. Attach left support (#9), right support (#10) to each side of frame and secure

with:

six M10*130 HHB (#42) six Φ11*Φ20*2 washers (#46)

four Φ11*Φ30*2 washers (#47) four M10 nylon lock nuts (#48)

2. TIGHTEN ALL BOLTS AND NUTS before continuing!

3. Once all bolts and nuts are tightened, then attach weight shroud (#14) to

middle base (#3) with:

sixteen M10*15 BHCS (#37) sixteen Φ11*Φ30*2 washers (#46)
