─ 12 ─

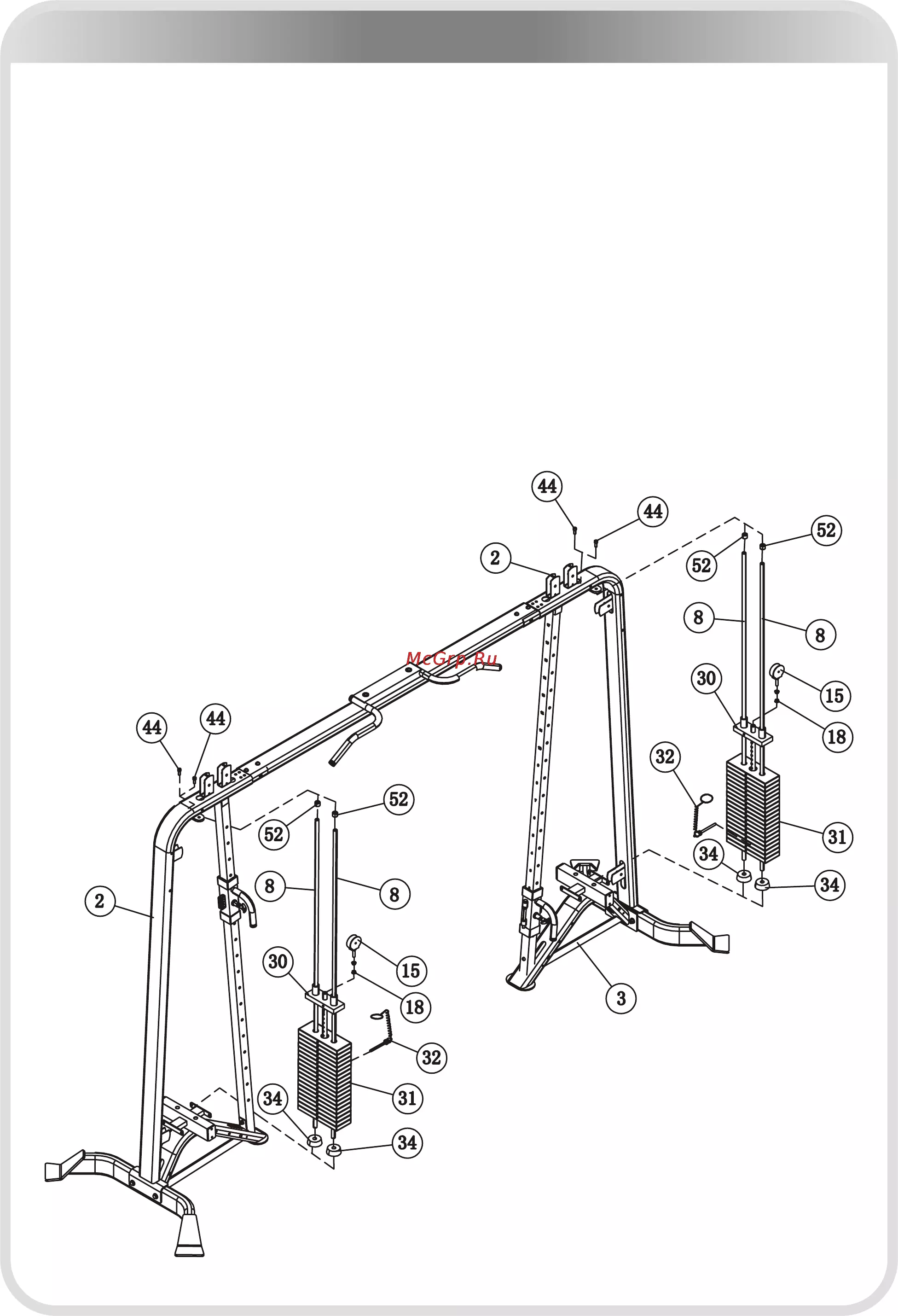

Assembly

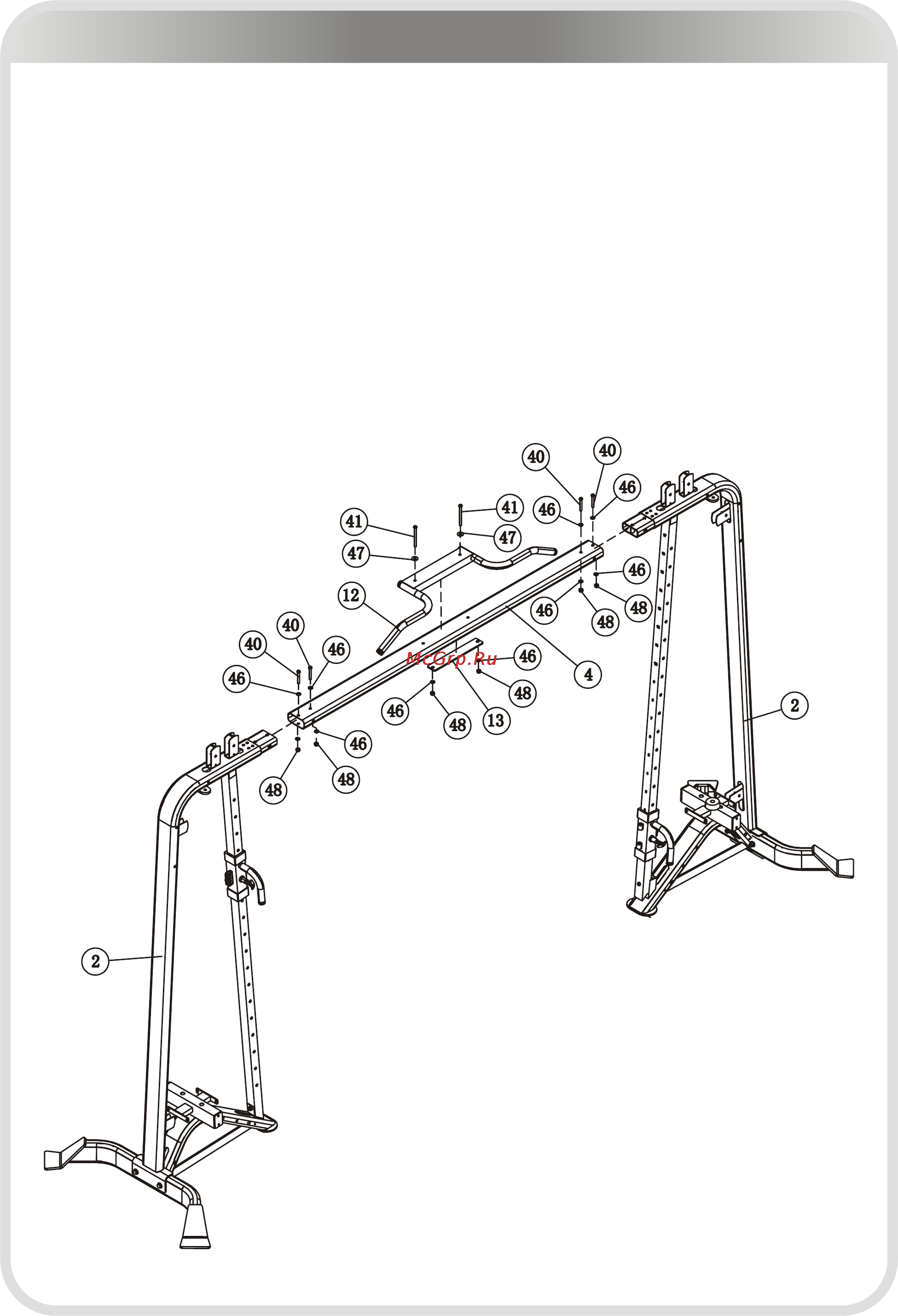

STEP 3

1. Attach top cross tube (#4) with main base (#2) using:

four M10*65 HHB (#40) eight Φ11*Φ20*2 washers (#46)

four M10 nylon lock nuts (#48)

NOTE: two people will be needed to complete this step safely.

2. Attach top cross tube (#4), large metal plate (#13) with chin-up handle (#12)

using:

two M10*115 HHB (#41) two Φ11*Φ30*2 washers (#47)

two Φ11*Φ20*2 washers (#46) two M10 nylon lock nuts (#48)

NOTE: Hand tighten bolts and nylon nuts until STEP 6.
