Assembly

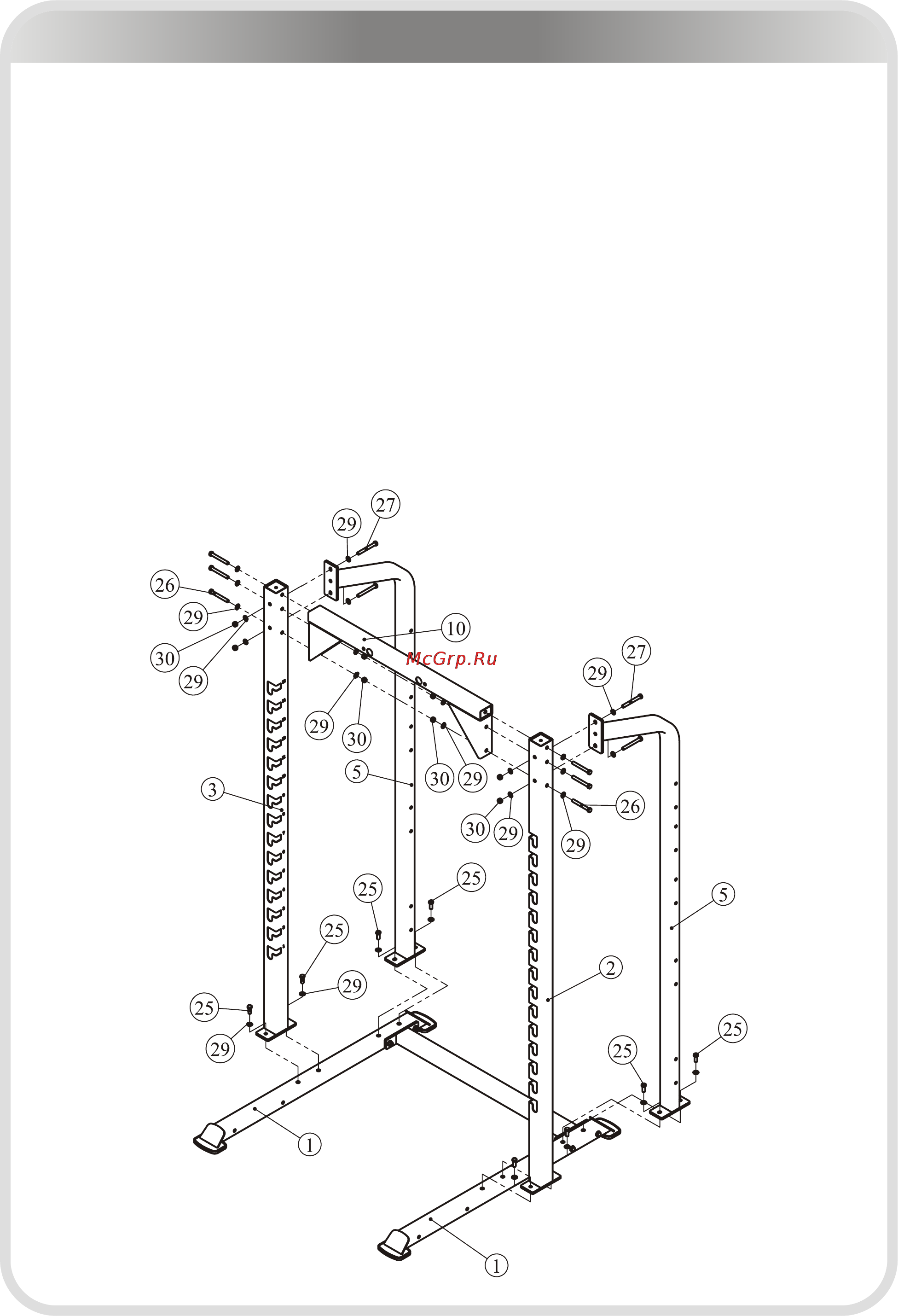

Step 2

1. Attach the Upright Frame 1 (#2) and Upright Frame 2 (#3) to the both Base

Frames (#1) using:

four M12*30 SHCS (#25) four Φ13*Φ24*1.5 Flat Washer (#29)

2. Attach the Lat Top Cross Brace (#10) to the Upright Frame 1 (#2) and Upright

Frame2 (#3) using:

six M12*100 SHCS (#26) ten Φ13*Φ24*1.5 Flat Washer (#29)

four M12 Nylon Lock Nut (#30)

3. Attach the both Rear Upright Frames (#5) to the Upright Frame 1 (#2), Upright

Frame 2 (#3) and both Base Frames (#1) using:

four M12*30 SHCS (#25) four M12*105 SHCS (#27)

twele Φ13*Φ24*1.5 Flat Washer (#29) four M12 Nylon Lock Nut (#30)

Note: Hand tighten bolts and Nylon Lock Nuts until machine is fully assembled.
