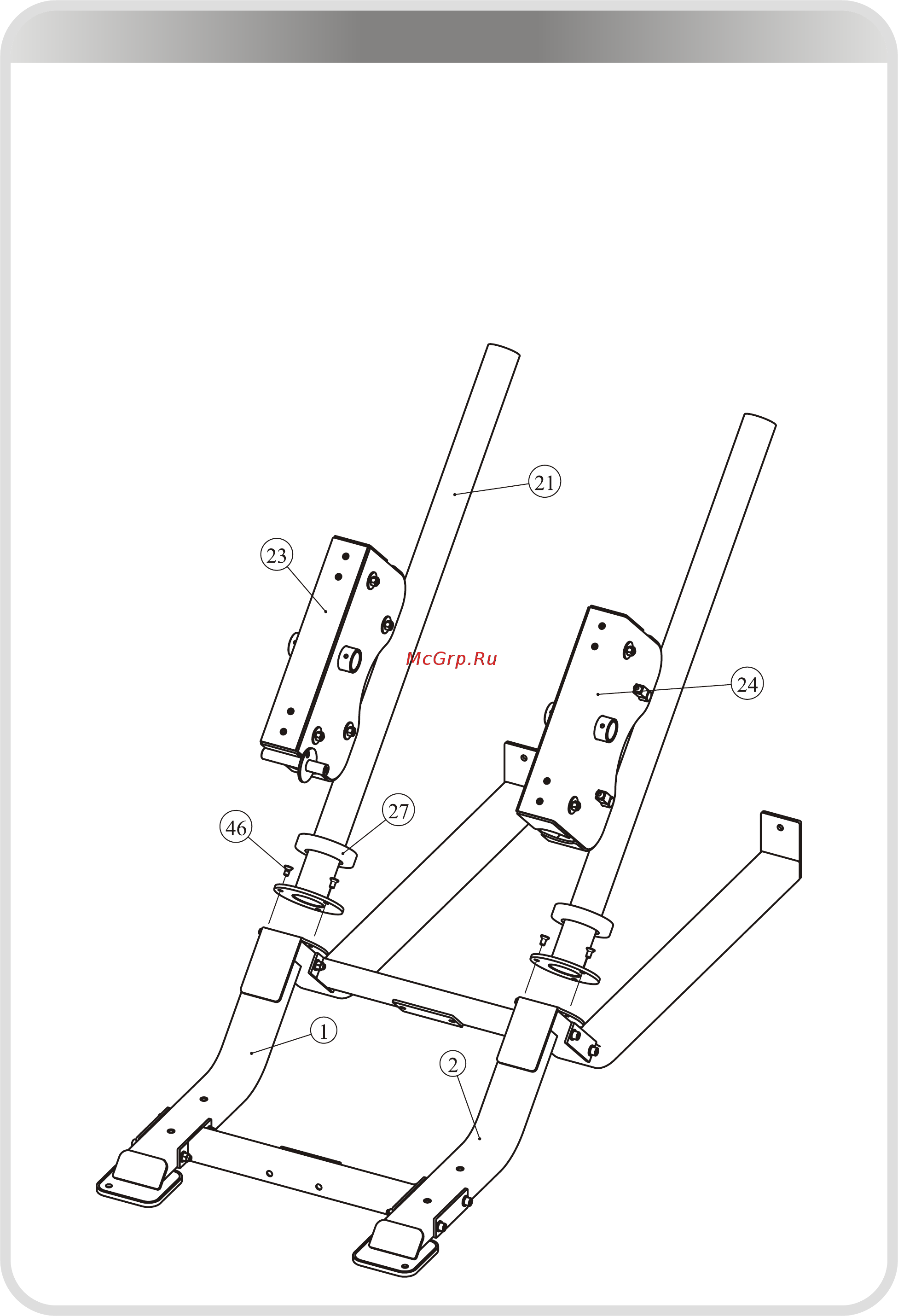

Assembly

STEP 2

1. Two pieces of Lead Rail (#21) and Left Bottom Frame Assembly (#1), Right Bottom

Frame Assembly (#2) connected together using:

● six M10*20 FHCS (#46)

2. Two Large Rubber Bumper (#27), Left Idler Wheel Frame Assembly (#23), Right

Idler Wheel Frame Assembly (#24) Wear into the two pieces of Lead Rail (#21).

Note: Two people will be needed to complete this step safely.

Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.
