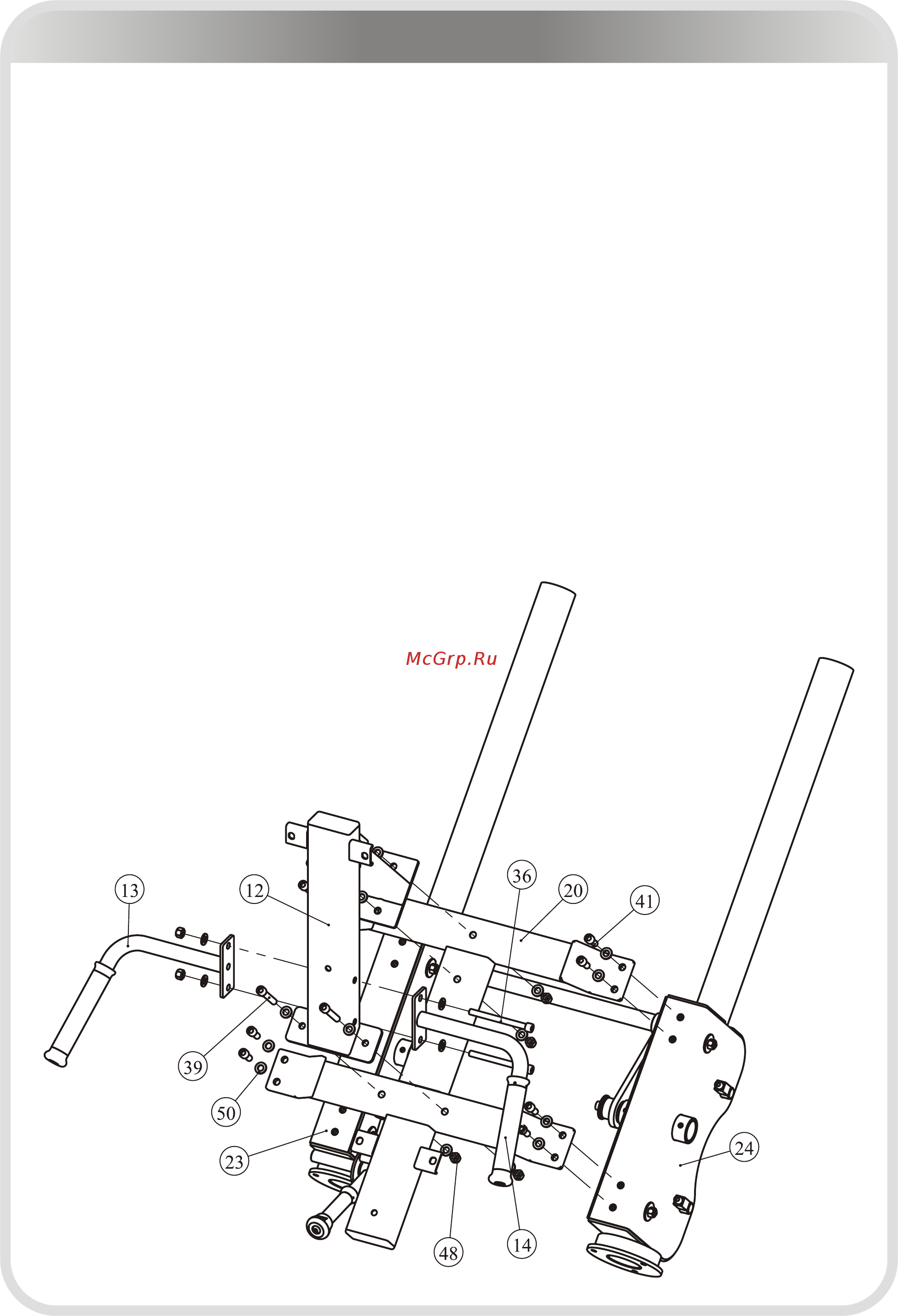

1. The Connection Frame Assembly (#20) and Left Idler Wheel Frame Assembly (#23),

Right Idler Wheel Frame Assembly (#24) connected together. Using:

● eight M12*30 SHCS (#41)

● eight Φ13*Φ24*2.5 Flat Washers (#50)

2. The Arm Pad Frame Assembly (#12) and Connection Frame Assembly (#20)

connected together. Using:

● four M12*75 SHCS (#39)

● eight Φ13*Φ24*2.5 Flat Washers (#50)

● four M12 Nylon Lock Nuts (#48)

3. The Left Handle Assembly (#13), Right Handle Assembly (#14) and Arm Pad Frame

Assembly (#12) connected together. Using:

● two M12*135 SHCS (#36)

● four Φ13*Φ24*2.5 Flat Washers (#50)

● two M12 Nylon Lock Nuts (#48)

Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.

─ 30 ─

Assembly

STEP 7
