Aerofit SL7021 [32/37] 页面 32

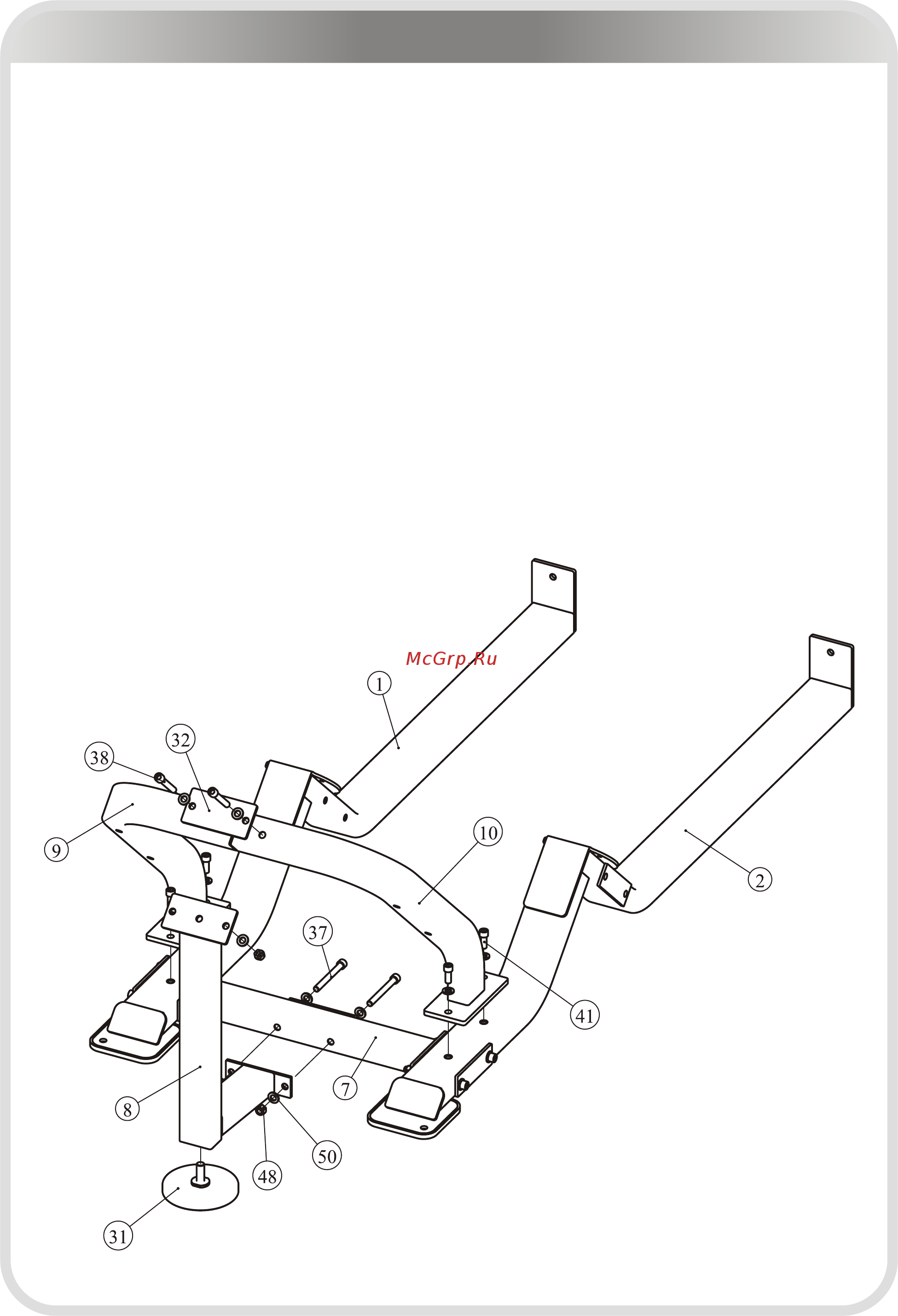

1. The Pedal Bracket (#8), Affixed Frame (#31) and Before Connecting Frame (#7)

connected together using:

● two M12*110 SHCS (#37)

● four Φ13*Φ24*2.5 Flat Washers (#50)

● two M12 Nylon Lock Nuts (#48)

2. The Left Foot Frame (#9), Right Foot Frame (#10) and External Fixation Plate (#32),

Left Bottom Frame Assembly (#1), Right Bottom Frame Assembly (#2) connected

together using:

● two M12*85 SHCS (#38)

● four M12*30 SHCS (#41)

● eight Φ13*Φ24*2.5 Flat Washers (#50)

● two M12 Nylon Lock Nuts (#48)

Note: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled.

─ 32 ─

Assembly

STEP 9
