D-Link DSL-524T [2/16] Connecting the dsl 524t to your network

Connecting the Router to Your Computer

A. First, connect the power adapter to the receptor at the back panel of the

DSL-524T and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn ON to indicate proper operation.

B. Insert one end of the cable into any Ethernet port on the back panel of the

DSL-524T and the other end of the cable to an Ethernet Adapter or available Ethernet

port on your computer.

C. Insert one end of the Telephone cable into the ADSL port on the rear panel of the

Router and insert the other end into the wall socket. If you need to install a low pass

filter, follow the instructions of your ISP.

Connecting the DSL-524T to your network

Rear Panel Connections

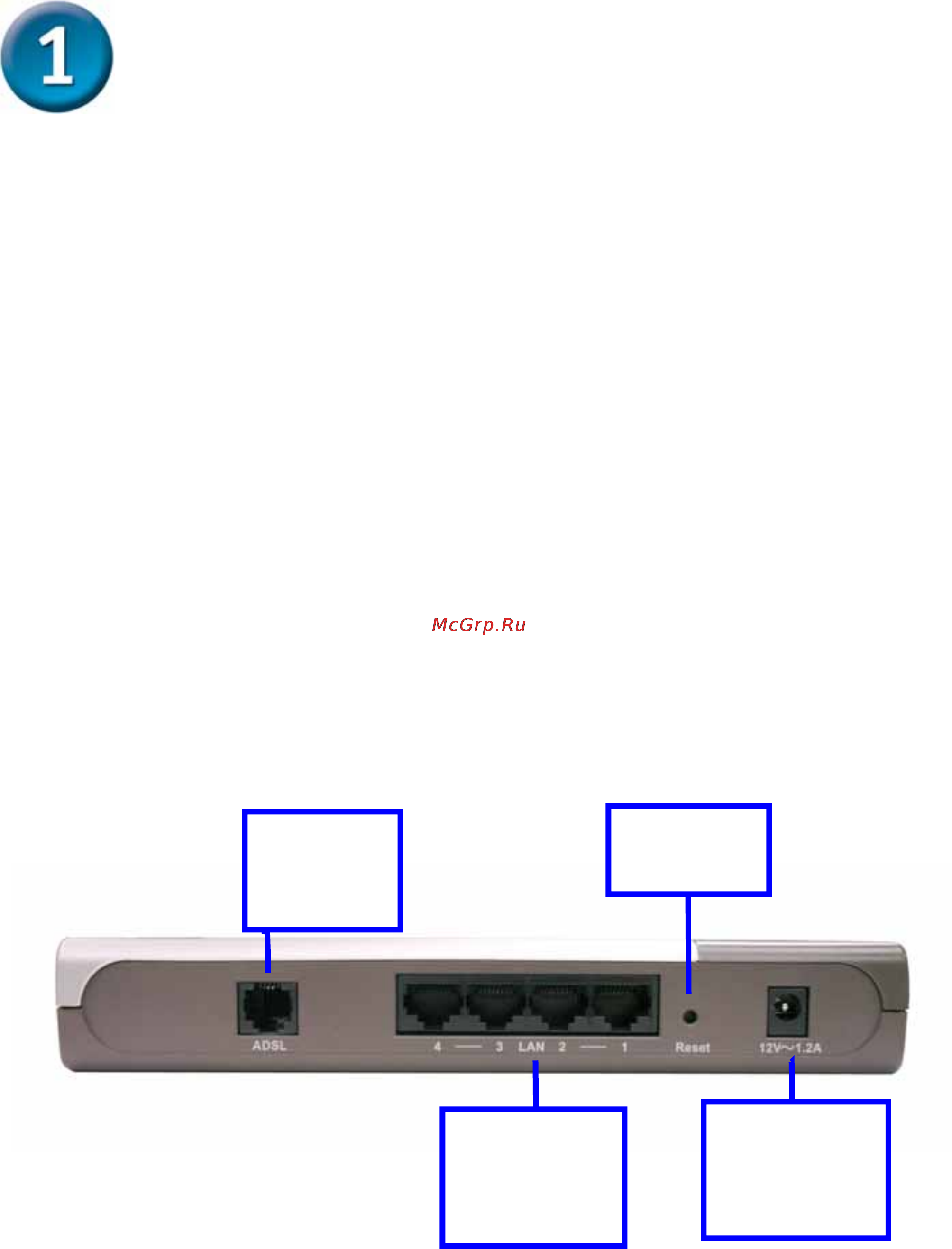

All cable connections to the Router are made at the rear panel. Connect the power adapter

here to power on the Router. Use the Reset button to restore the settings to the factory default

values in the next chapter for instructions on using the reset button).

ADSL port -

connect to

ADSL line

Ethernet ports -

connect to

Ethernet cable

Factory reset

button

Power input –

connect to

power adapter
