Connecting the Router to Your Computer
Front Panel Connections
The LED indicators on the front panel include the Power, Status, ADSL and Ethernet indicators. The
ADSL and Ethernet indicators monitor link status and activity (Link/Act).

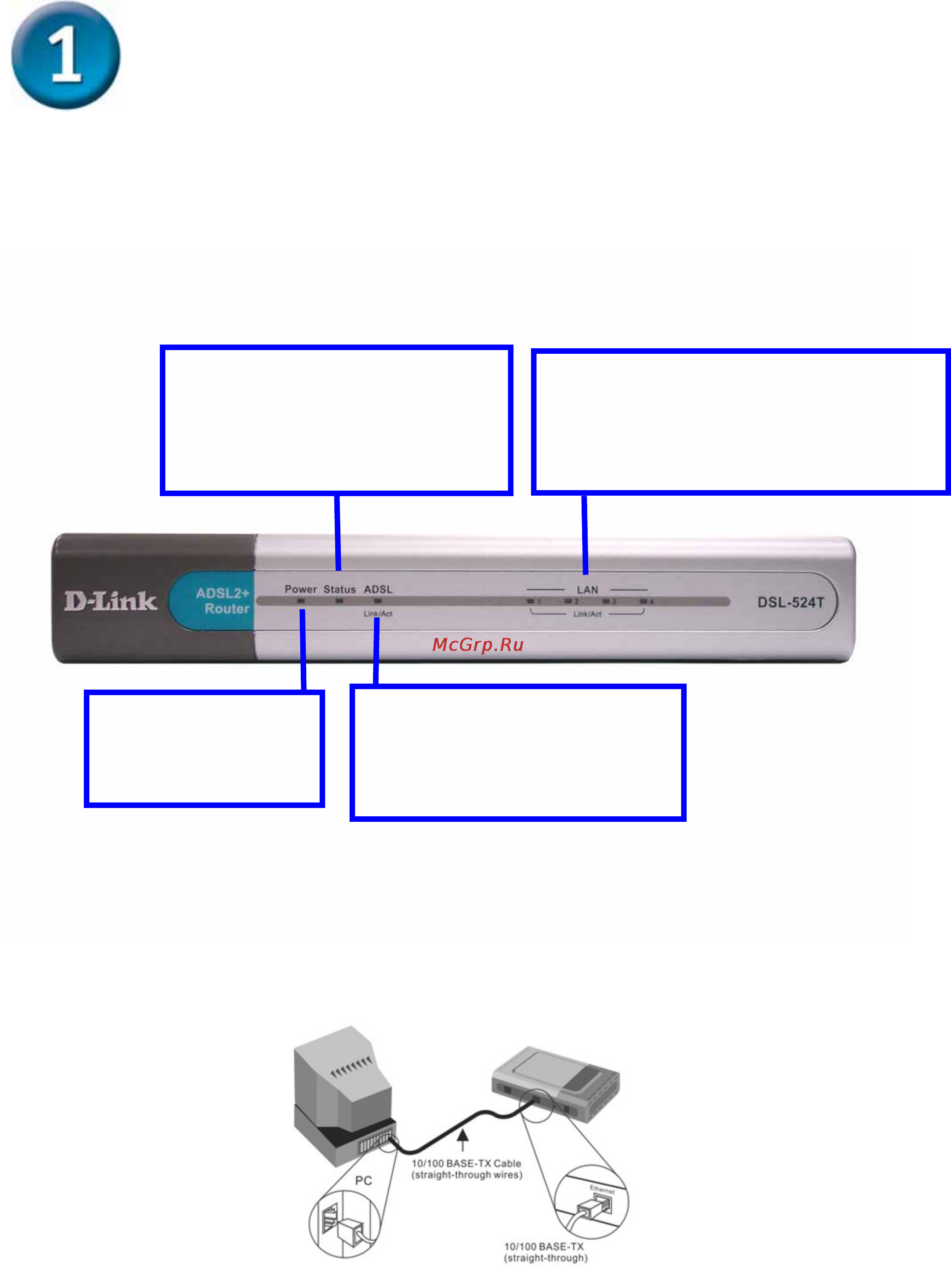

Your setup should resemble the one shown below.
Power: a steady light
indicates the
DSL2-524T is ready.
ADSL Link/Act: A steady green
light indicates a valid ADSL
connection. A blinking LED will
signify an active WAN session
Ethernet Link/Act: A steady green light
indicates a valid Ethernet connection while
a blinking LED indicates an active Ethernet
sess
i
o
n
.
Status: A blinking green LED
indicates the device is in proper
working order. A system failure will
result in the LED lighting solid or
