Faber CYLINDRA ISOLA EG10 X A37 [4/22] Characteristics

CHARACTERISTICS

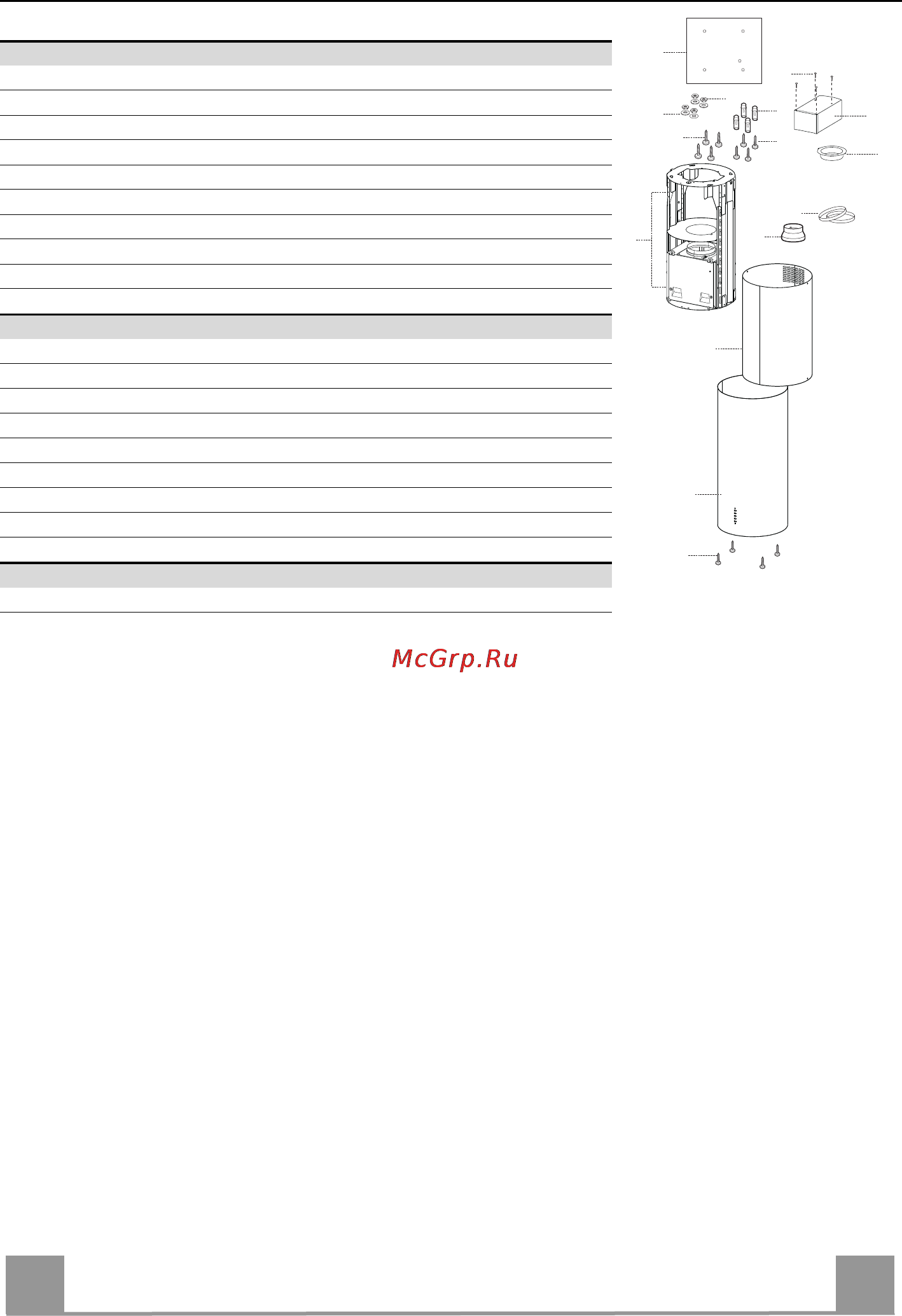

Components

Ref. Q.ty Product Components

1 1 Hood Body, complete with: Controls, Light, Blower, Filters

2 1 Chimney Upper

7.1 1 Telescopic frame complete with extractor, consisting of:

7.1a 1 Upper frame

7.1b 1 Lower frame

9 1 Reducer Flange ø 150-120 mm

10 1 Flange ø 120 mm

15 1 Recirculation Air Outlet Connection

25 Pipe clamps (not included)

Ref. Q.ty Installation Components

11 4 Wall Plugs ø 10

12c 4 Screws 2,9 x 6,5

12f 4 Screws M6 x 10

12g 4 Screws M6 x 80

12h 4 Screws 5,2 x 70

21 1 Drilling template

22 4 6.4 mm int. dia washers

23 4 M6 nuts

Q.ty Documentation

1 Instruction Manual

12h

7.1

12g

7.1a

7.1b

12f

12c
