PREPARATION OF THE FRAME FOR THE HOOD IN RE-

CYCLING VERSION

In case the hood is used in recycling version it is neces-

sary to prepare the frame with all the necessary connec-

tion pieces. In order to make the installation easier it is

necessary to lengthen the frame:

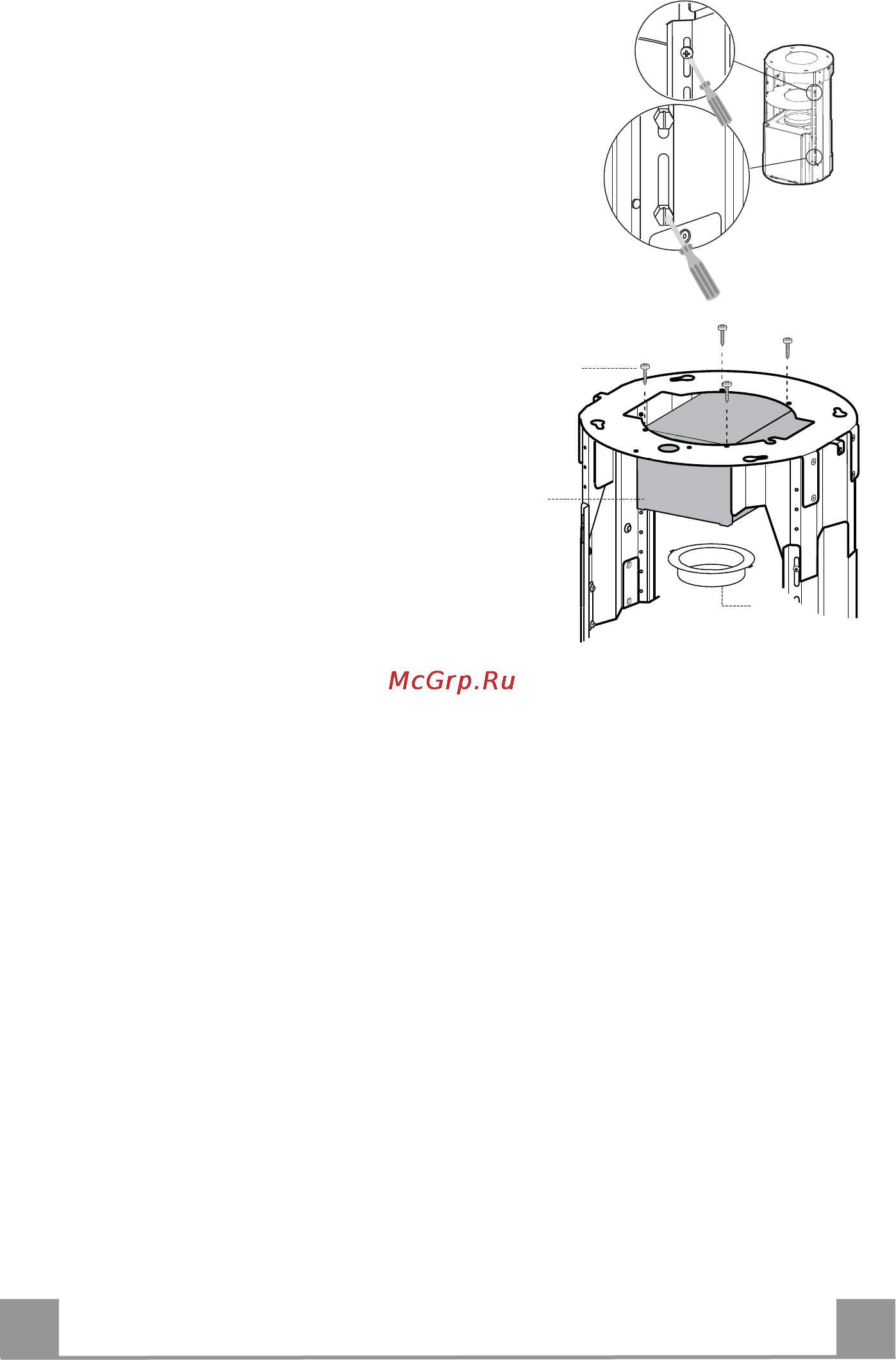

• Unscrew the two screws 2.1 fixing the upper chim-

ney to the frame and pull the chimney out.

• Unscrew the four safety screws placed at the top in

the frame separation area. (A).

• Unscrew the eight metric screws connecting the two

columns, placed on both sides of the frame (B).

Installation of components in recycling version:

• Fix the recycling air outlet piece 15 to the upper part

of the frame using four 12c screws supplied with the

hood.

• Fix the flange (ø120) 10 to the lower part of the recy-

cling air outlet 15.

• Put the reducer flange 9 on the hood body outlet.

• At this point, join the flanges with a pipe. In order to

calculate the height of the pipe it is necessary to es-

timate the height of the hood (mm) and subtract 615

mm. (H pipe = H hood-615).

• Lengthen the frame so that the pipe can be inserted.

Place the pipe between the two flanges and block it.

Make sure that the height of the frame is correct con-

sidering the height of the cooker hood (H frame = H

hood – 184). Adjust the height of the frame and

tighten again the earlier removed screws. Tighten

again the safety screws in order to give more stability

to the structure.

• Fix the pipe with the pipe clamps 25 supplied with

the hood.

12c
