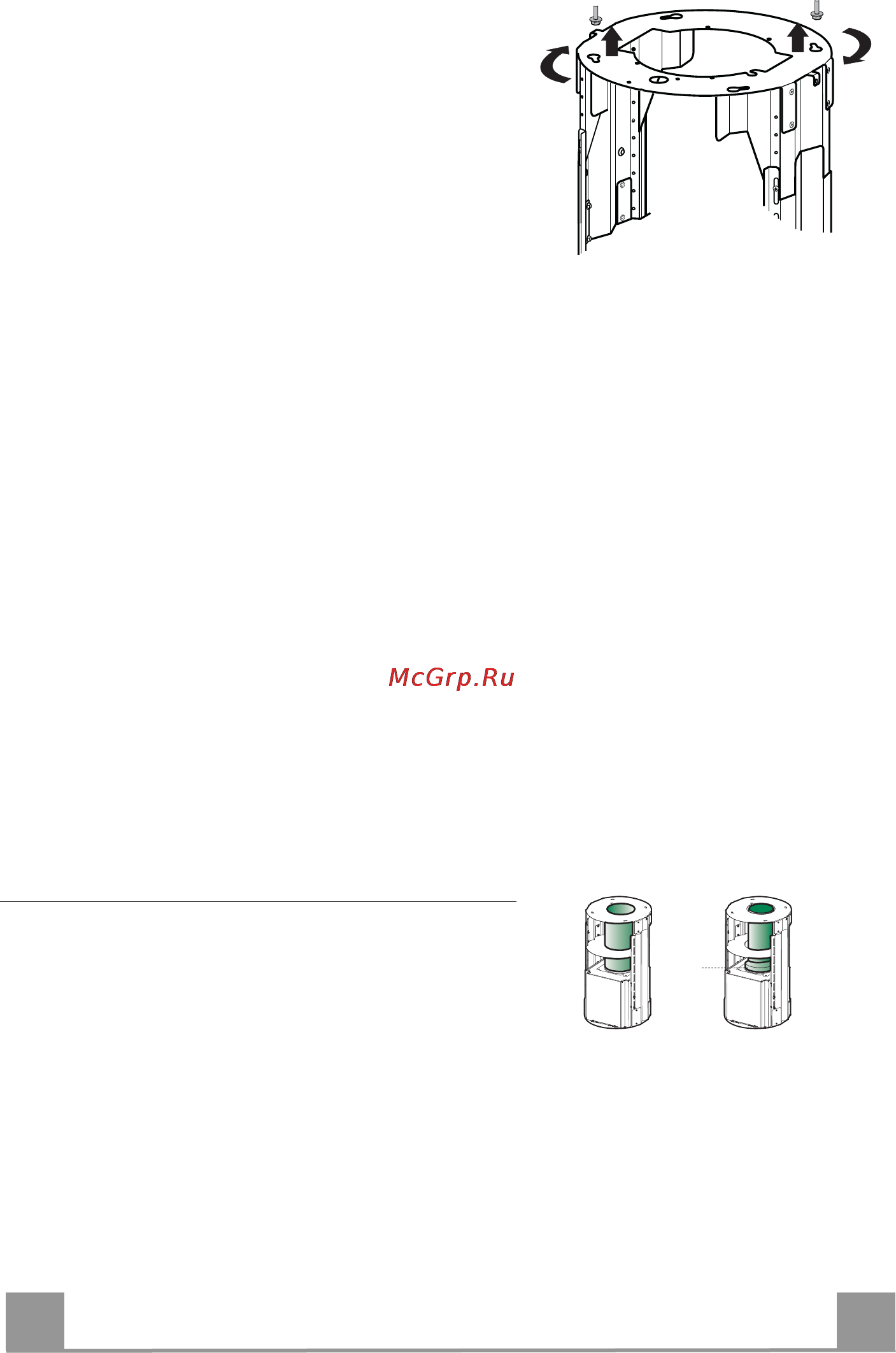

FIXING THE FRAME

• Lift the frame up, making sure that the index over

the frame plate is turned forwards.

• Fit the frame slots onto the two screws inserted in

the ceiling as above, and turn until reaching the cen-

tre of the adjustment slot.

• Tighten the two screws and fasten the other two

screws provided; before locking the screws com-

pletely, it is possible to adjust the frame by turning

it, making sure that the screws do not come out of

their housing in the adjustment slot.

• The Frame must be securely fastened so as to sup-

port both the weight of the Hood and the stress

caused by occasional axial pressure against the fitted

Appliance. After fixing, make sure that the base is

stable even when the Frame is subjected to lateral

stress.

• If the Ceiling is not strong enough in the area where

the hood is to be fixed, the Installer must strengthen

the area using suitable plates and counterplates an-

chored to resistant structures.

Ducted version air exhaust system Connection

When installing the ducted version, connect the hood

to the chimney using either a flexible or rigid pipe ø

150 or 120 mm, the choice of which is left to the in-

staller.

• To install a ø 120 mm air exhaust connection, insert

the reducer flange 9 on the hood body outlet.

• Fix the pipe using the pipe clamps 25 provided.

• Remove any activated charcoal filters.

ø 120ø 150
