10
Secure 2-Port KVM Switch User Manual

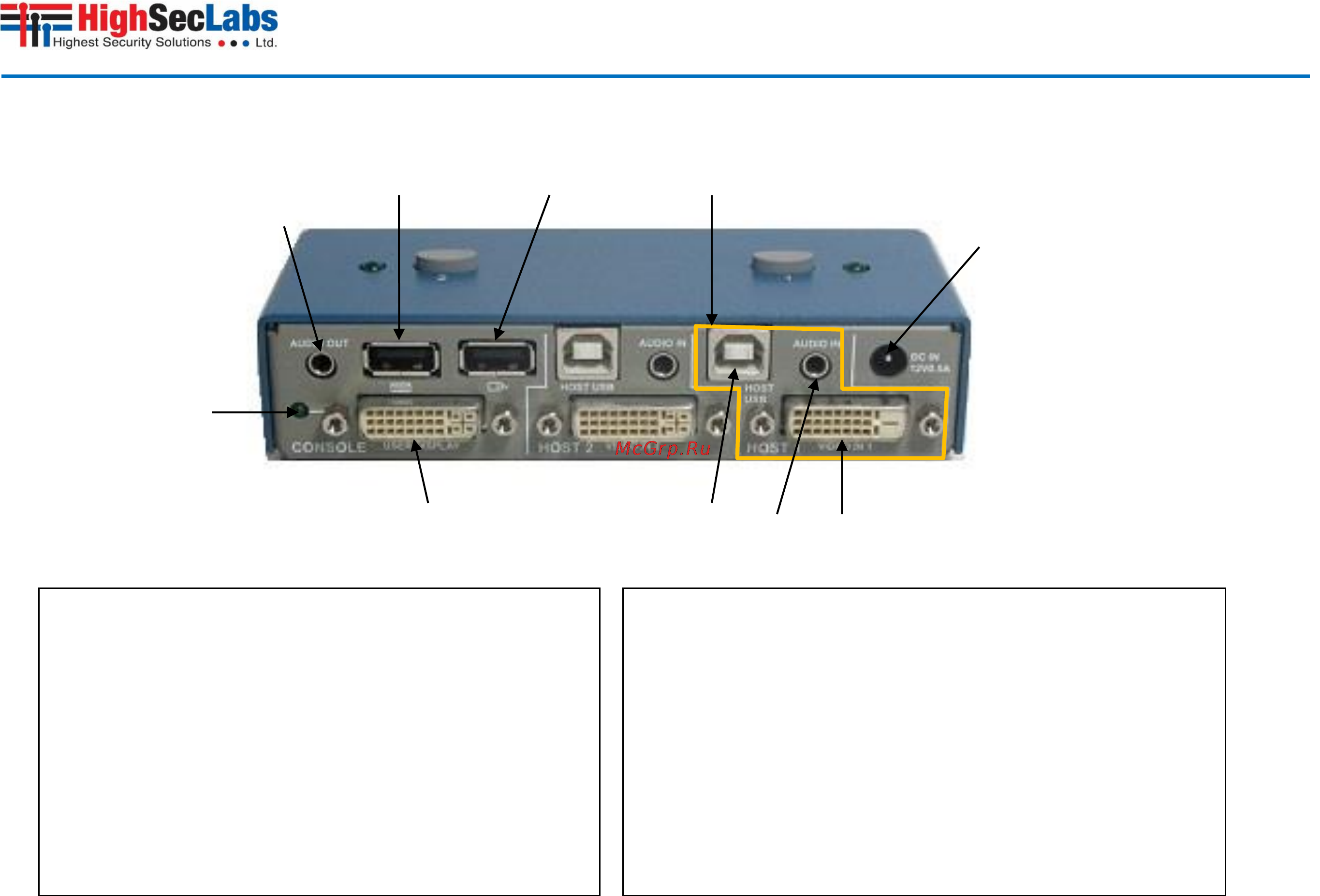

Rear Panel Features –K202B/D
1
2
7
1 – Display diagnostic LED
2 – Audio console output 3.5 mm stereo jack
3 – Console USB Keyboard jack
4 – Console USB Mouse jack
5 – Computer #1 group interface area
6 – DC Power input jack – barrel type
7 – Computer #1 group DVI-I (K202B) / DVI-D (K202D)
video input connector
3
10
4
8
5
6
8 – Computer #1 group audio input jack 3.5 mm stereo
9 - Computer #1 group Keyboard/Mouse USB jack
10 –User display console output (K202B) / DVI-D (K202D)
connector
9
