RC-74DL - Connecting the RC-74DL

Figure 3: Connecting the RC-74DL Master Room Controller

4.1 Connecting the RS-232 Interface

To connect an AV device to the RC-74DL using the RS-232 port, connect the

RS-232 9-pin D-sub port on your AV device to the RS-232 terminal block on the

rear panel of the RC-74DL as shown in Figure 4.

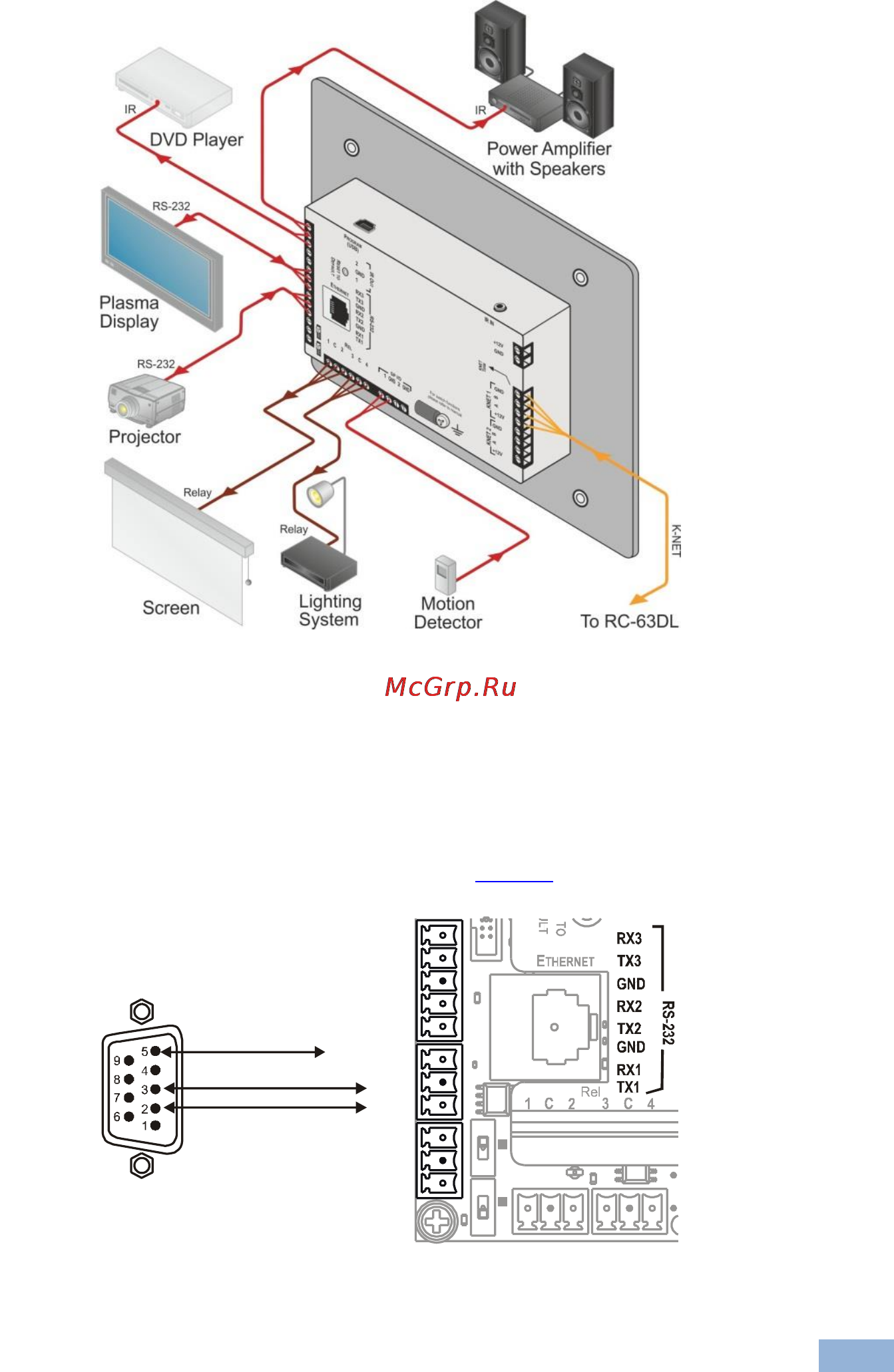

Figure 4: RS-232 Connection

RS-232 Device
