RC-74DL - Front Panel Button Caps and Labels

6.1 Installing the Front Panel Button Caps, Labels

To install the button caps and labels:

1. Remove the required labels from the supplied button label sheet.

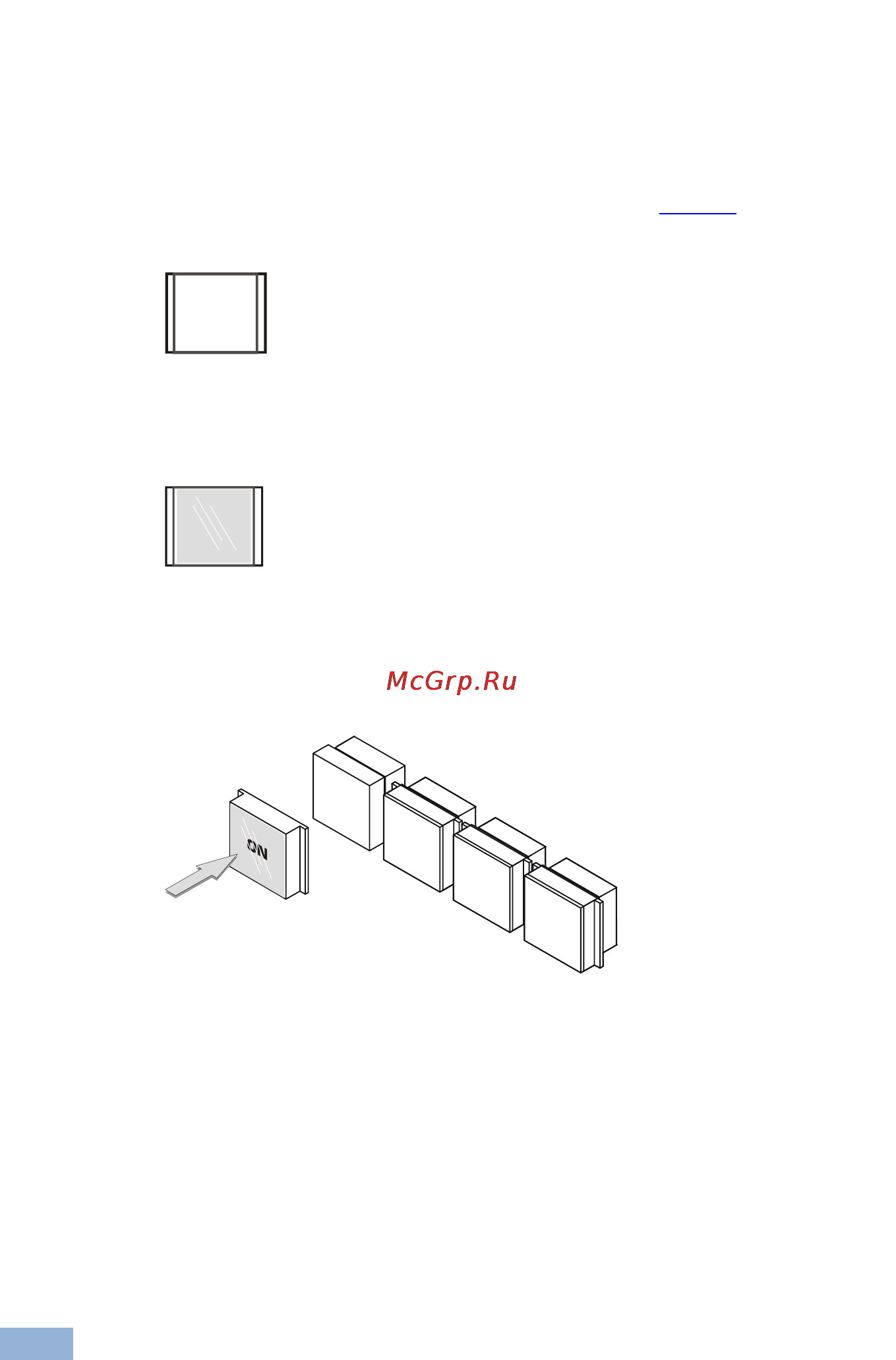

2. Hold the button cap so that it is oriented as shown in Figure 6 with the

“wings” on the left and right sides.

Figure 6: Button Cap Orientation

3. Insert the label inside the cap.

Figure 7: Button Cap Orientation with Label

4. Retaining the orientation, place the button cap on the buttons of the

RC-74DL.

Figure 8: Placing the Button Cap

5. Repeat for all caps.

6. Remove the protective foils from both sides of the Perspex (acrylic glass)

windows.

7. Place the faceplate on the RC-74DL so that the four screw mounting holes

are aligned.
