RC-74DL - Connecting the RC-74DL

4.2 Connecting the Ethernet Port

The Ethernet connection of the RC-74DL lets you perform all control functions of

the RC-74DL over the Internet using a PC running the Kramer Site-CTRL control

program.

To connect the RC-74DL to a network:

1. Connect the Ethernet port of the RC-74DL to the Ethernet port on a network

hub or network router, via a straight cable with RJ-45 connectors.

2. At the other end, connect the Internet to a PC running Site-CTRL.

3. After connecting the Ethernet port, you have to install and configure it. For

detailed instructions on how to install and configure your Ethernet port, see

the K-Config Software Guide available from our Web site.

4.3 Grounding the RC-74DL

The grounding screw is used to earth the chassis of the unit to the building ground

preventing static electricity from impacting the performance of the unit.

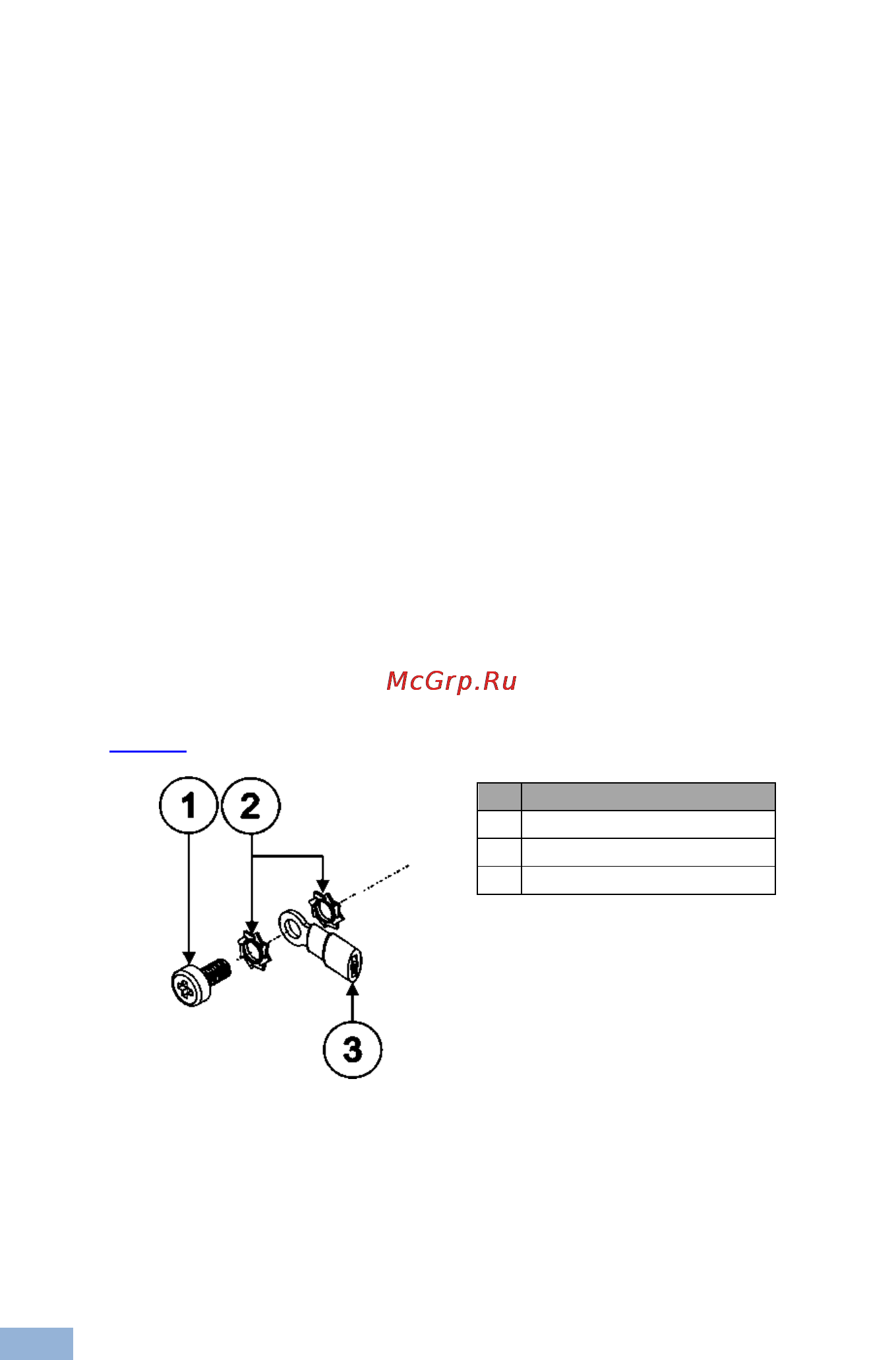

Figure 5 shows the grounding screw components.

Figure 5: Grounding Connection

Components

Component Description

M3X6 screw

1/8" Toothed Lock Washer

M3 Ring Tongue Terminal
