SL-10 - Connecting the SL-10

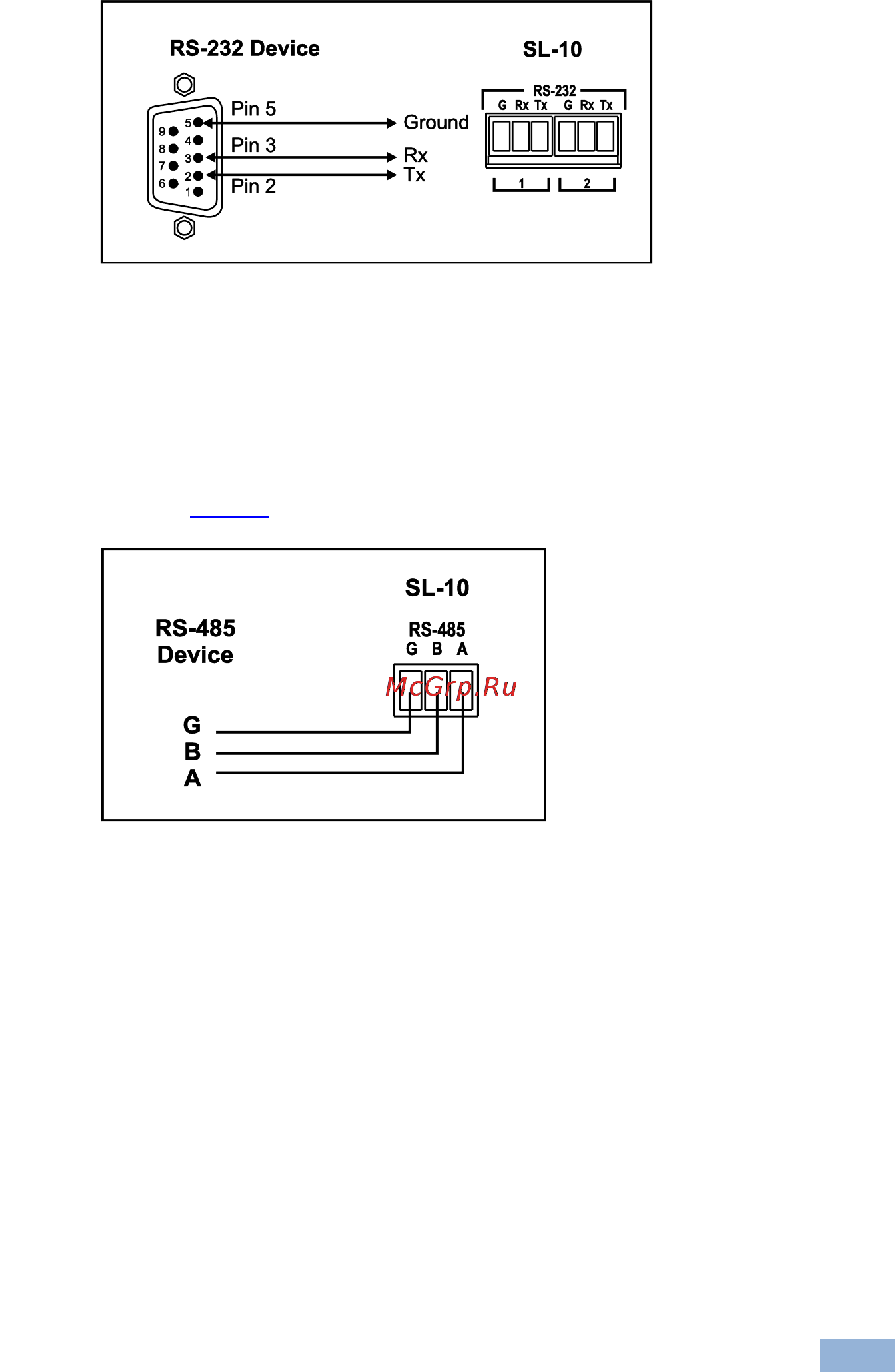

Figure 3: RS-232 Connection

4.3 Connecting the RS-485 Interface

To connect an AV device to the SL-10 using the RS-485 port, connect the RS-485

port on your device to the RS-485 terminal block on the rear panel of the SL-10 as

shown in Figure 4:

Figure 4: RS-485 Connection

4.4 Connecting the Ethernet Port

The Ethernet connection of the SL-10 allows you to perform all control functions of

the SL-10 over the Internet using a PC running the Kramer Site-CTRL control

program.

To connect the SL-10 to a network:

1. Connect the Ethernet port of the SL-10 to the Ethernet port on a network

hub or network router, via a straight cable with RJ-45 connectors.

2. At the other end, connect the Internet to a PC running Site-CTRL.
