3.1 Defining the SL-10 Master Room Controller

This section defines the SL-10.

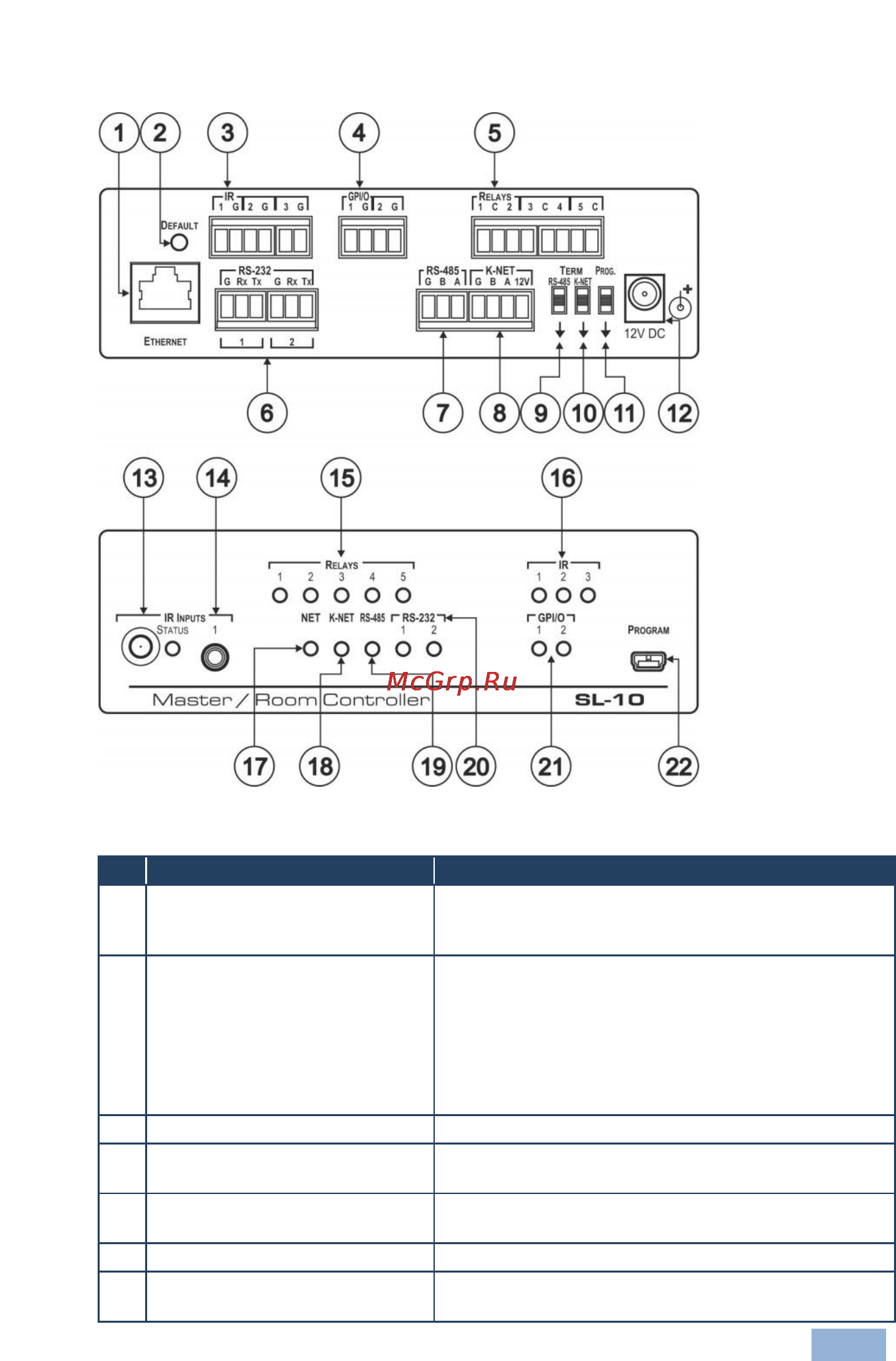

Figure 1: SL-10 Master Room Controller

Feature

Function

ETHERNET RJ-45 Connector

Connects to the PC or other serial controller through

computer networking LAN to control several AV

products over Ethernet

DEFAULT Recessed Pushbutton

Press to reset to factory default definitions:

IP number  192.168.1.39, Mask – 255.255.0.0

Gateway – 0.0.0.0

First disconnect the power supply and then connect it

again while pressing the DEFAULT button. The unit

powers up and loads its memory with the factory default

definitions and erases all stored presets

IR Output Terminal Blocks

Connect to IR emitter cables (from 1 to 3)

GPI/O Terminal Blocks

Connect to various analog and digital sensors (from 1

to 2)

RELAYS Terminal Blocks

Connect to low-voltage relay-driven devices (from 1 to

RS-232 Terminal Blocks

Connect to the RS-232 devices (from 1 to 2)

RS-485 Terminal Block

Pins B (-) and A (+) are for RS-485; Pin G may be

connected to the shield (if required)
