KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your TP-100AXR/TP-200AXR
6
4 Your TP-100AXR/TP-200AXR
This section defines the TP-100AXR PC/Audio Line Transmitter (see
section
4.1), and the TP-200AXR PC/Audio Line Receiver (see section 4.2).
4.1 Your TP-100AXR PC/Audio Line Transmitter
Figure 1 and Table 1 define the TP-100AXR:

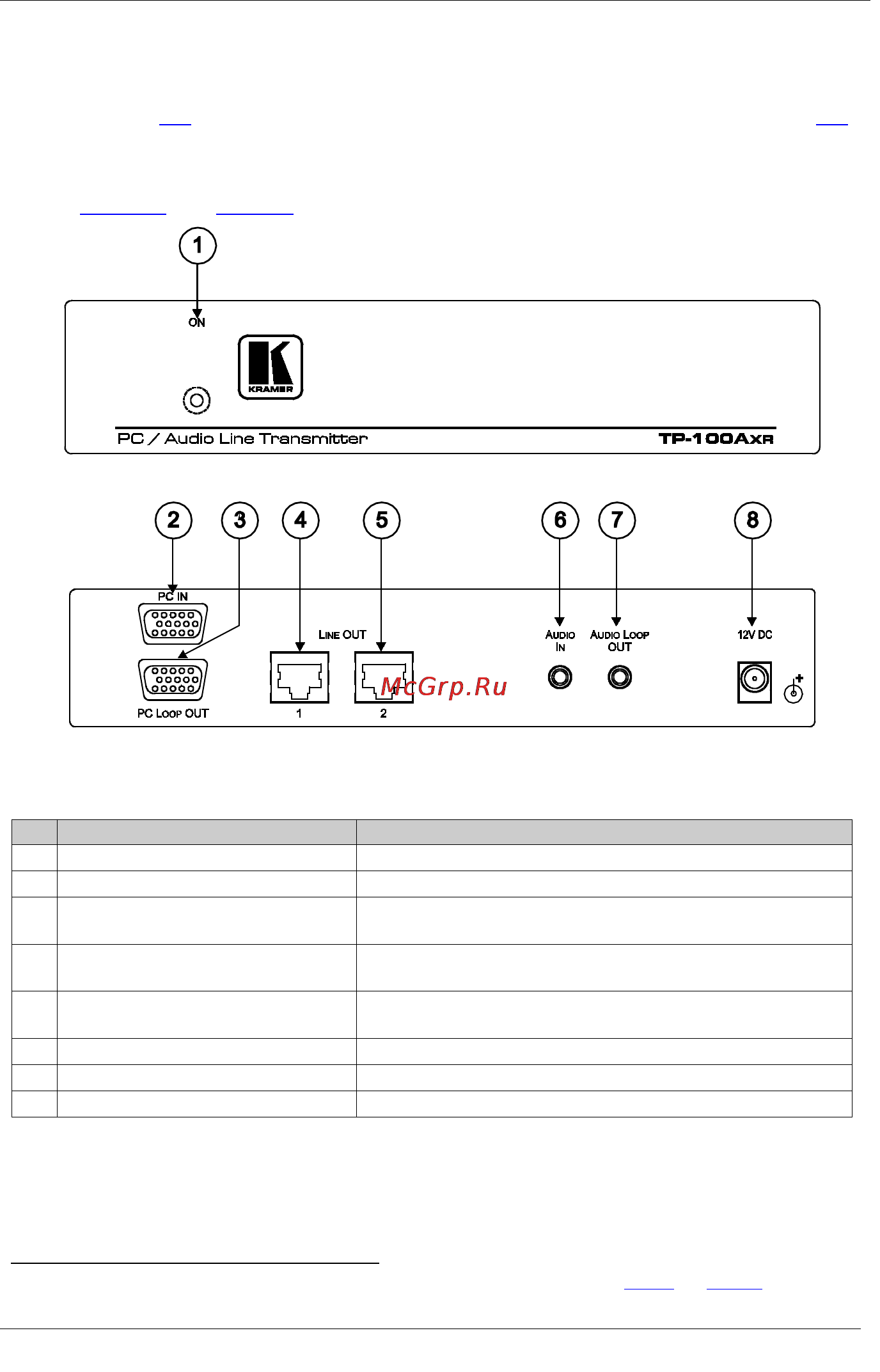

Figure 1: TP-100AXR PC/Audio Line Transmitter
Table 1: TP-100AXR PC/Audio Line Transmitter Features
#
Feature
Function
1 ON LED Illuminates when receiving power
2 PC IN 15-pin HD (F) Connector Connects to the PC source
3 PC LOOP OUT 15-pin HD (F)
Connector
Connects to a computer graphics acceptor
4 LINE OUT 1 RJ-45 Connector
Connects to
1
5
the LINE IN RJ-45 connector on a TP-200AXR
PC/Audio Line Receiver
LINE OUT 2 RJ-45 Connector Connects to
1
the LINE IN RJ-45 connector on a second
TP-200AXR PC/Audio Line Receiver
6 AUDIO IN 3.5mm Mini Jack Connects to the audio source
7 AUDIO LOOP OUT 3.5mm Mini Jack Connects to an audio acceptor
8 12V DC +12V DC connector for powering the unit
1 Using a UTP CAT 5 cable with RJ-45 connectors at both ends (the PINOUT is defined in Table 3 and Figure 5)
