Instructions for the installer

10. INSTALLATION

10.1 Technical information

Hob type See rating plate

Electrical connections

220-240V~ 50/60Hz / 380-415V 2N∼ 50/60Hz / 380-415V 3N∼ 50/60Hz

HOB RATING

Electric

Maximum electrical power See rating plate

DIMENSIONS OF THE HOB

Width (mm) 290 595 720 900

Depth (mm) 510 510 510 510

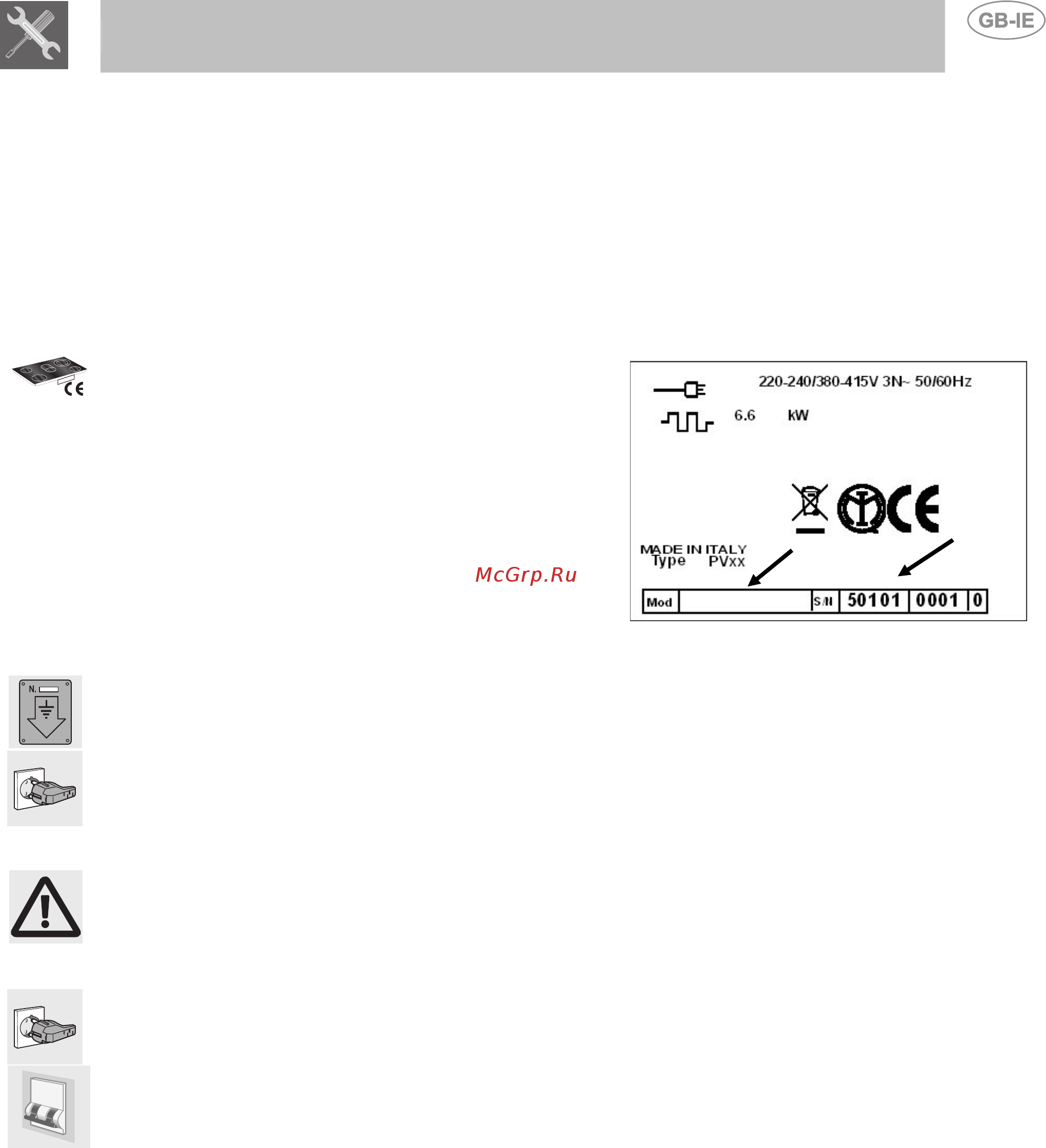

10.2 The rating plate

Make sure that the voltage and capacity of the power

line conform to the data shown on the plate located

under the casing. Do not remove this plate for any

reason..

10.3 Electrical connection

IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED ACCORDING TO THE

METHODS REQUIRED BY SAFETY RULES.

WHEN LINKING UP TO MAINS BY PLUG AND SOCKET, MAKE SURE THAT BOTH ARE

COMPATIBLE AND CONNECT BY MEANS OF A POWER CABLE COMPLYING WITH

APPLICABLE REGULATIONS.

THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.

NEVER UNPLUG BY PULLING ON THE CABLE.

IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST OF THE HOB,

FOLLOWING THE INSTRUCTIONS. IF THE HOB FAILS TO OPERATE, AFTER CHECKING THAT

YOU HAVE CARRIED OUT THE INSTRUCTIONS CORRECTLY, DISCONNECT THE APPLIANCE

FROM THE ELECTRICAL MAINS AND CONTACT YOUR NEAREST SERVICE CENTRE.

NEVER ATTEMPT TO REPAIR THE APPLIANCE.

IF A PLUG AND SOCKET CONNECTION IS BEING USED MAKE SURE THAT THE PLUG AND

SOCKET ARE COMPATIBLE. AVOID USE OF ADAPTERS AND SHUNTS AS THESE COULD

CAUSE OVERHEATING AND RISK OF BURNS.

IF A FIXED CONNECTION IS BEING USED FIT POWER LINE WITH AN OMNIPOLAR CIRCUIT

BREAKER WITH A CONTACT OPENING GAP EQUAL TO OR GREATER THAN 3 MM IN AN

EASILY ACCESSIBLE POSITION IN PROXIMITY TO THE HOB.

Serial

N°

MODEL
