Instructions for the installer

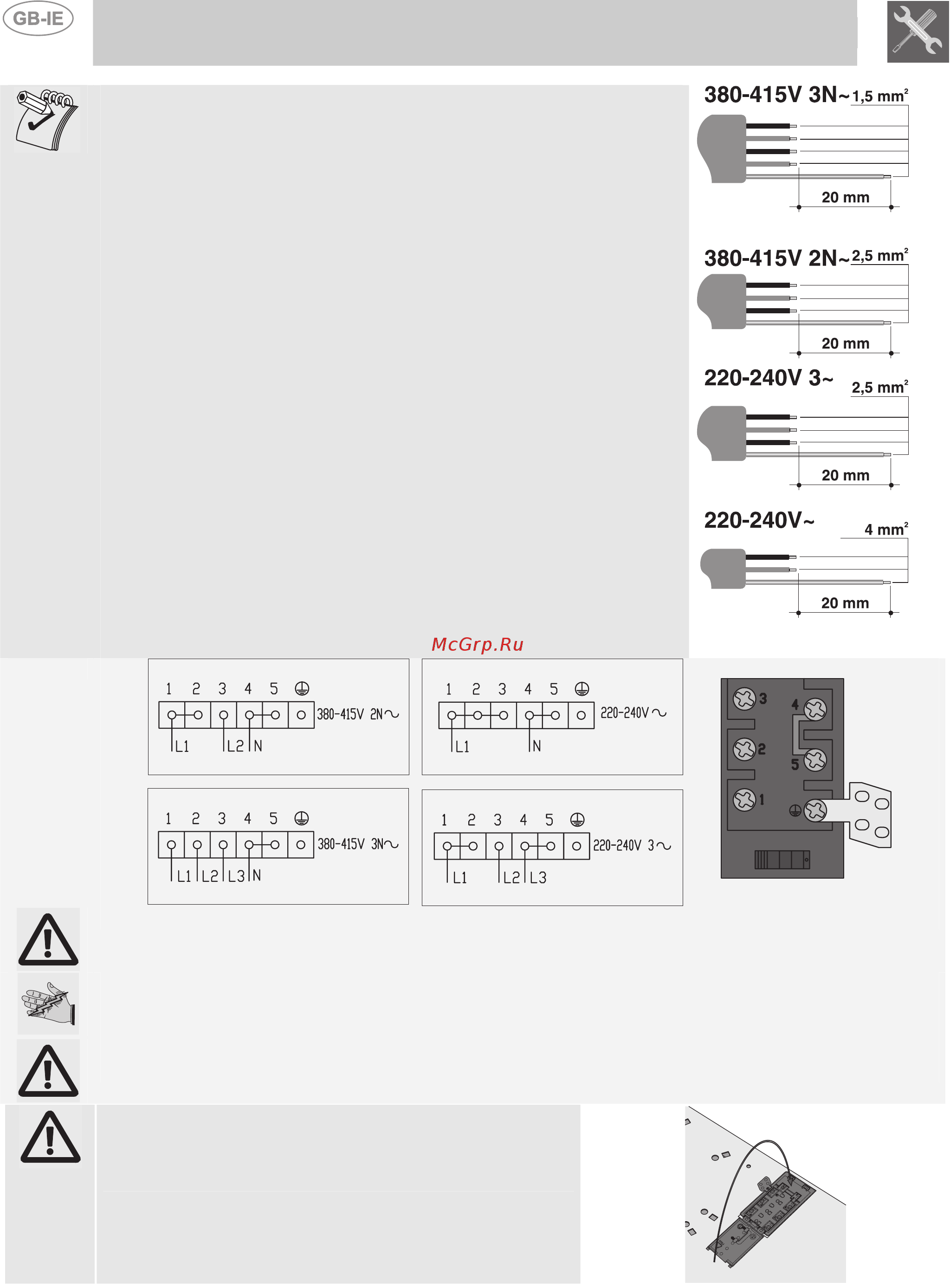

For operation on 380-415 V 3N

∼

: use an - H05V2V2-F type five-core

cable (5 x 1,5 mm

For operation on 380-415 V 2N

∼

: use an - H05V2V2-F type four-core

cable (4 x 2,5 mm

For operation on 220-240 V 3

∼

: use an - H05V2V2-F type four-core

cable (4 x 2,5 mm

For operation on 220-240 V

∼

: use an - H05V2V2-F type three-core

cable. (3 x 4 mm

: hob with 5 cooking zones)

The cable end to be connected to the appliance must be provided with

an earth wire (yellow-green) at least 20 mm longer.

READ THE CONNECTION LAYOUT PLATE UNDERNEATH THE APPLIANCE WITH CARE.

If the appliance you have purchased is not fitted with a mains power lead a power lead

resistant to a temperature of at least 90°C must be used.

Otherwise, the electrical safety of the appliance may be put at risk.

The manufacturer declines all responsibility for damage to persons or things caused by non-

observance of the above prescriptions or by interference with any part of the appliance.

Warning: close the cable clamp after making the

electrical connection. Close the terminal board cover by

twisting it down.
