TBUS-201xl - Installing the TBUS-201xl

5.2 Installing the Power Socket

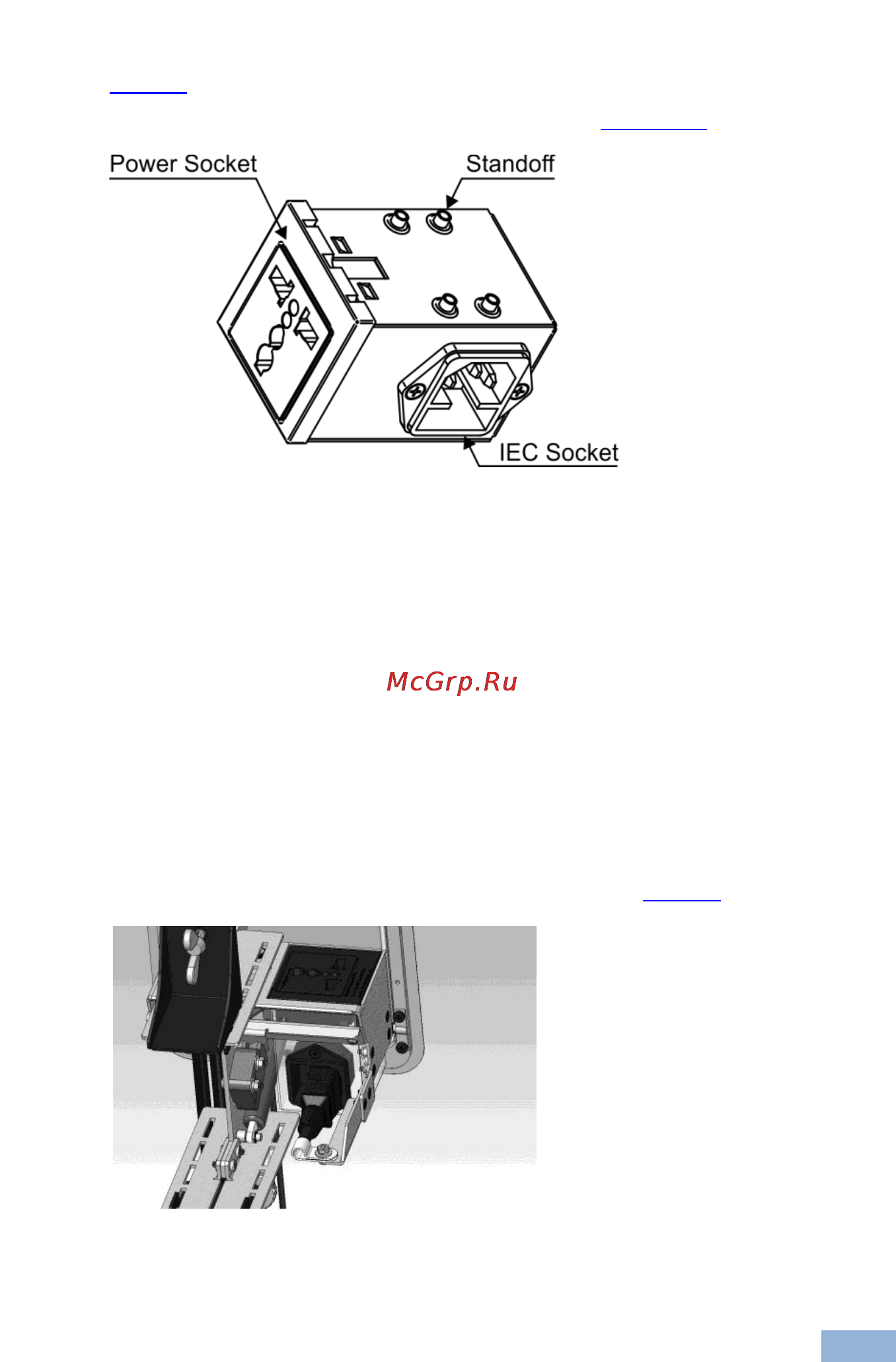

Figure 5 shows an example of the Universal power socket housing which is one of

the optional power sockets for the TBUS-201xl, see Section 4.2.

Figure 5: TBUS-201xl Universal Power Socket Housing

To install the power socket:

1. Close the TBUS-201xl lid.

2. Carefully insert the power socket housing so that the power socket fits into

the power socket opening on the connecting surface and the four standoffs

fit the four screw holes on the TBUS-201xl.

When positioned correctly, the IEC socket faces downwards.

3. Screw the four screws included in the power socket kit into the designated

holes to fix the power socket housing in place (see Figure 6).

Figure 6: Power socket installed
