TBUS-201xl - Defining the TBUS-201xl
5
5
4 Defining the TBUS-201xl

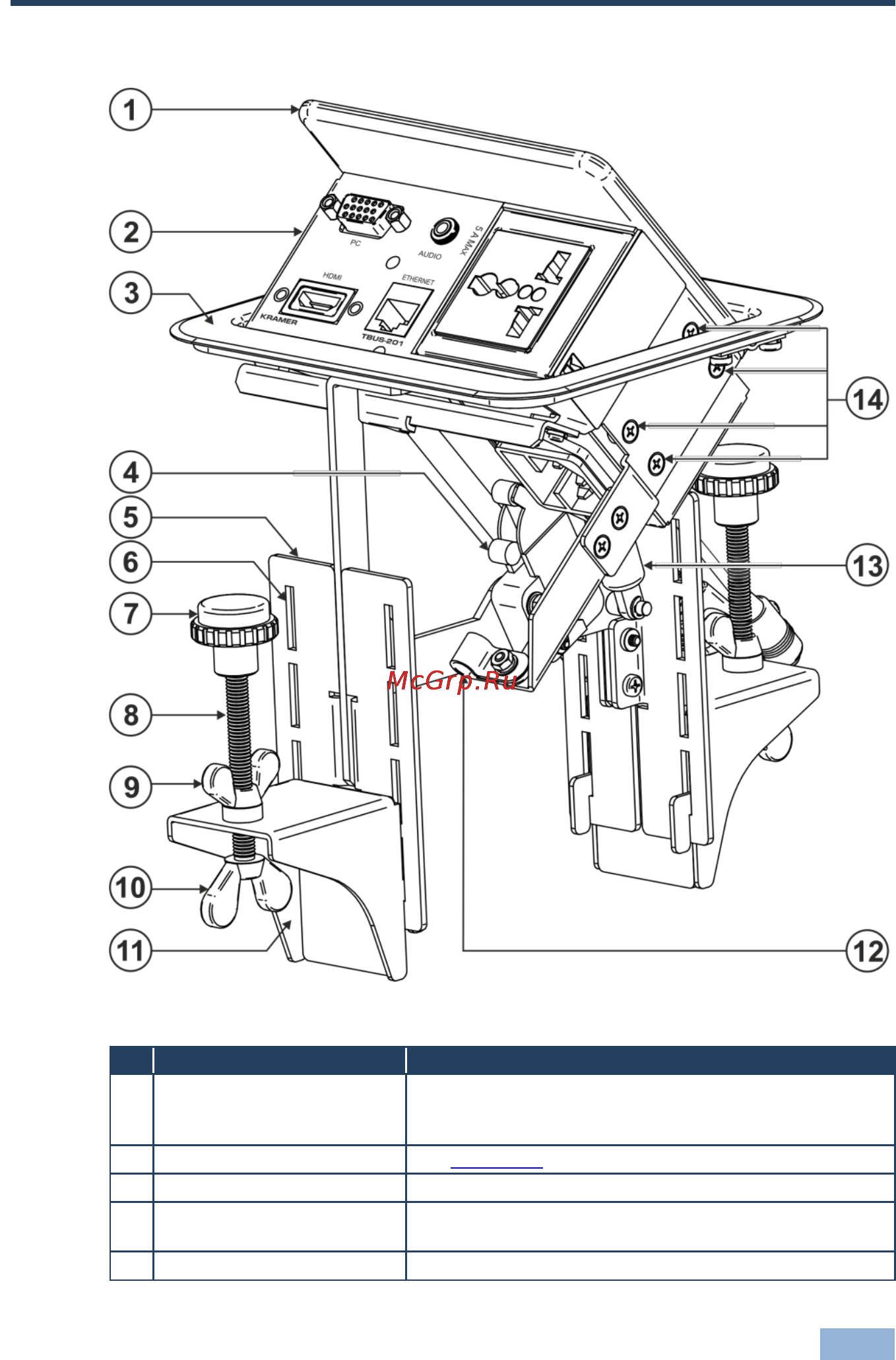

Figure 2: Defining the Parts of the TBUS-201xl Pop-up Table Connection Bus
#
Feature
Function
1
Black anodized or brushed
anodized aluminum semi-
automatic lid
Covers the connecting surface, leaving the table surface
neat and tidy
2
Connecting Surface
See Section 4.1
3
Outer Rim
Fits over the table surface
4
Mini Latch
Enables the closing and opening of the lid by slightly
pressing it
5
Mounting Clamp Plates
For holding the clamps
