TBUS-202xl - Defining the TBUS-202xl 7
7
#
Feature
Function
7 Mounting Clamps (2) Place in the clamp slits after inserting the enclosure into
the table – for securing the unit to the table surface
8 Mounting Butterfly Nuts (2) Tighten to secure the unit to the table surface
9 Locking Butterfly Nuts (2) Tighten to lock the mounting butterfly screw
10 Mounting Screws (2)
For securing the TBUS-202xl to the table
11 Rubber Protectors (2) To ensure soft tightening to the table underside

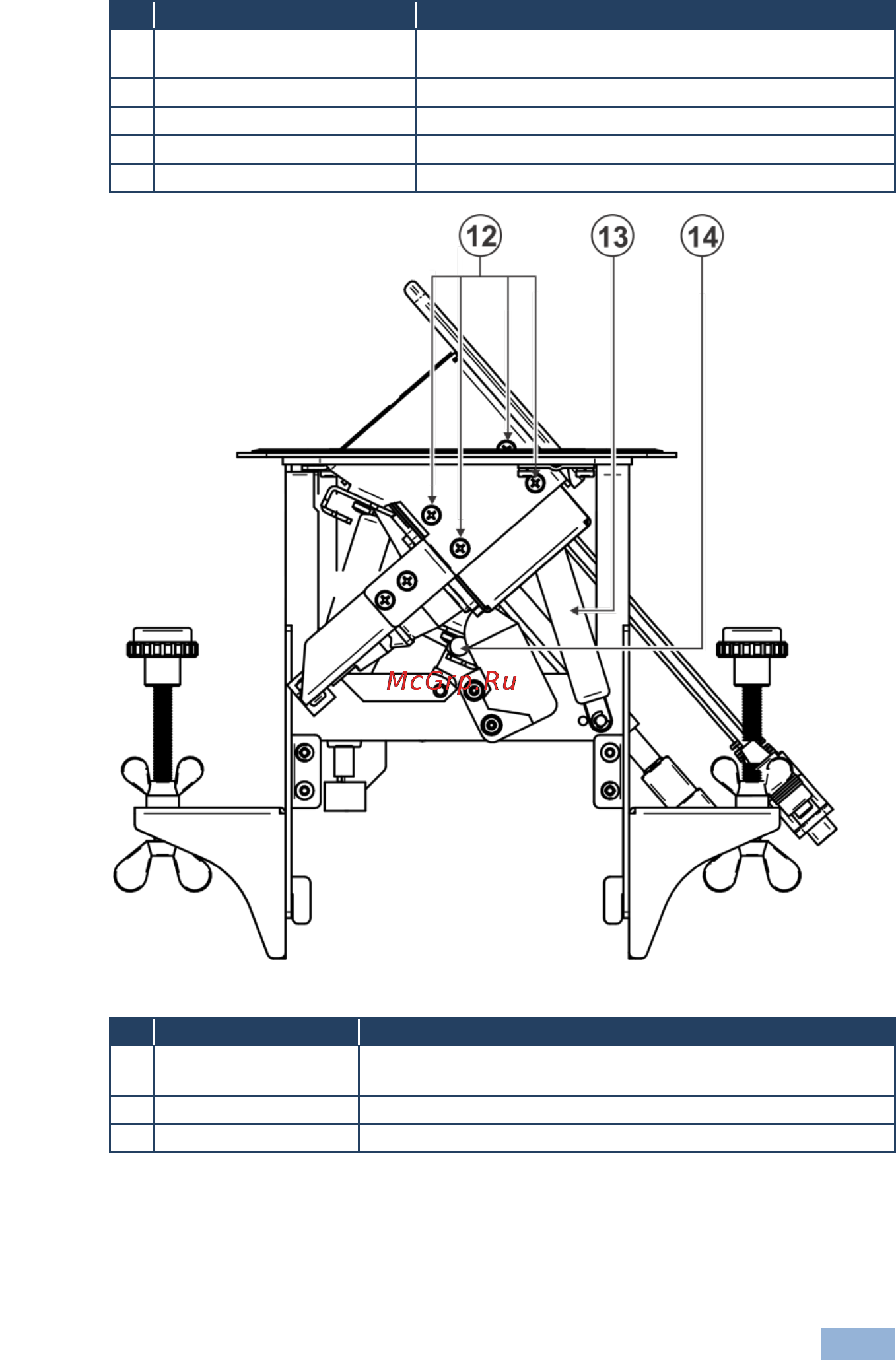

Figure 3: TBUS-202xl Dual Pop-up Table Connection Bus Side View
#
Feature
Function
12 Power Socket Opening
Screw Holes (4)
For installing/replacing the power socket
13 Pneumatic Piston Enables automatic lifting and smooth closing of the lid
14 Mini Latch Enables the closing and opening of the lid by slightly pressing it
