4 TBUS-202xl - Overview
3 Overview
The TBUS-202xl is a furniture-mounted pop-up connection bus that includes two
identical pop-up connecting surfaces facing opposite sides. The TBUS-202xl is
easily installed into a table or podium top.
Each of the pop-up interfaces enables you to connect any equipment to systems
installed in a room, and includes the following pass-through connectors:
• 1 PC on a 15-pin HD connector
• 1 HDMI connector
• 1 stereo audio on a 3.5mm connector
• 1 Ethernet RJ-45 connector
When not in use, you can independently lower each of the interfaces flush into the
table. The example in
Figure 1 shows the TBUS-202xl in a table or podium top
with a universal power socket.

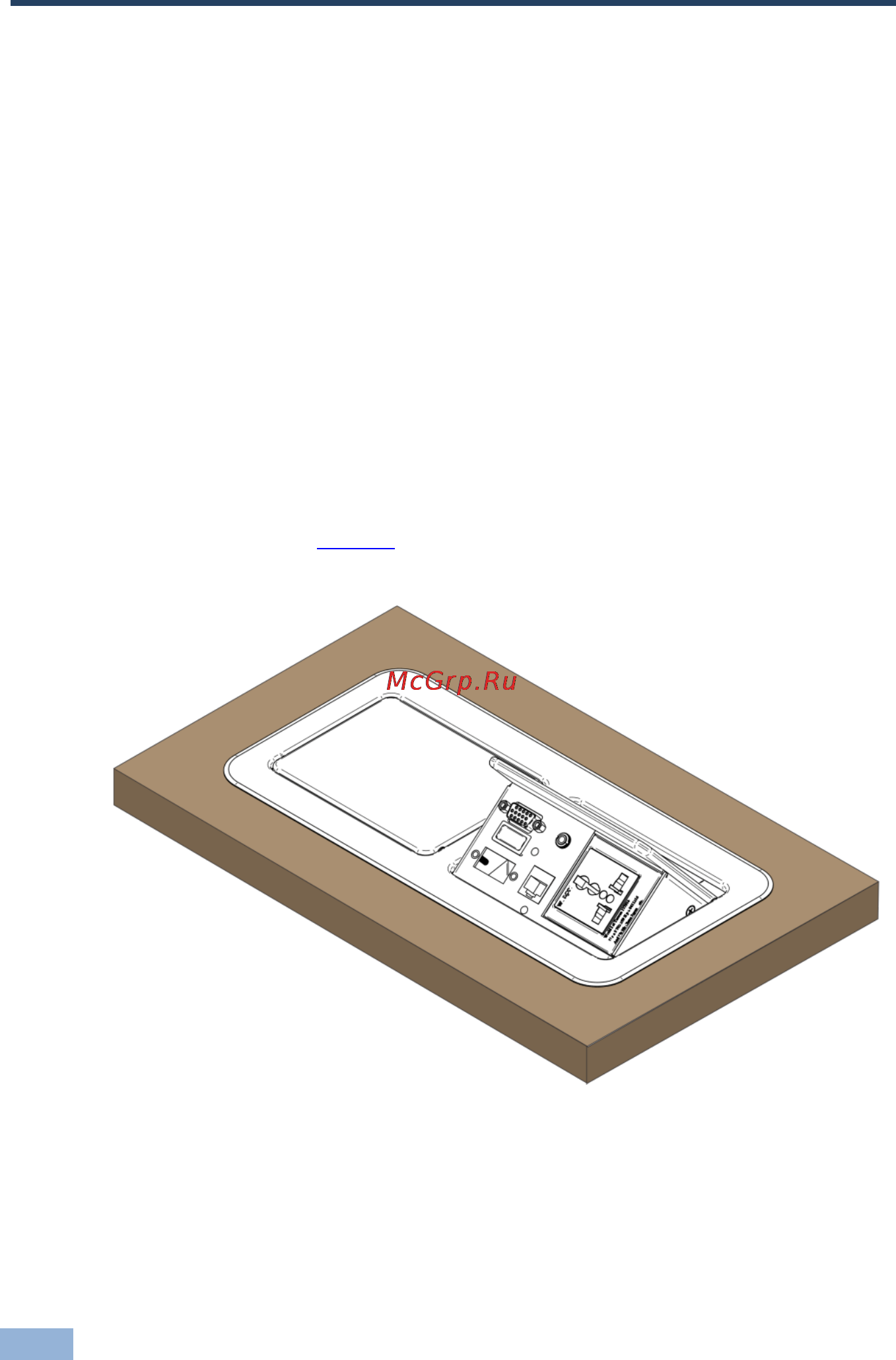

Figure 1: TBUS-202xl Dual Pop-up Table Connection Bus
