8 TBUS-202xl - Defining the TBUS-202xl
4.1 The TBUS-202xl Connecting Surface Unit

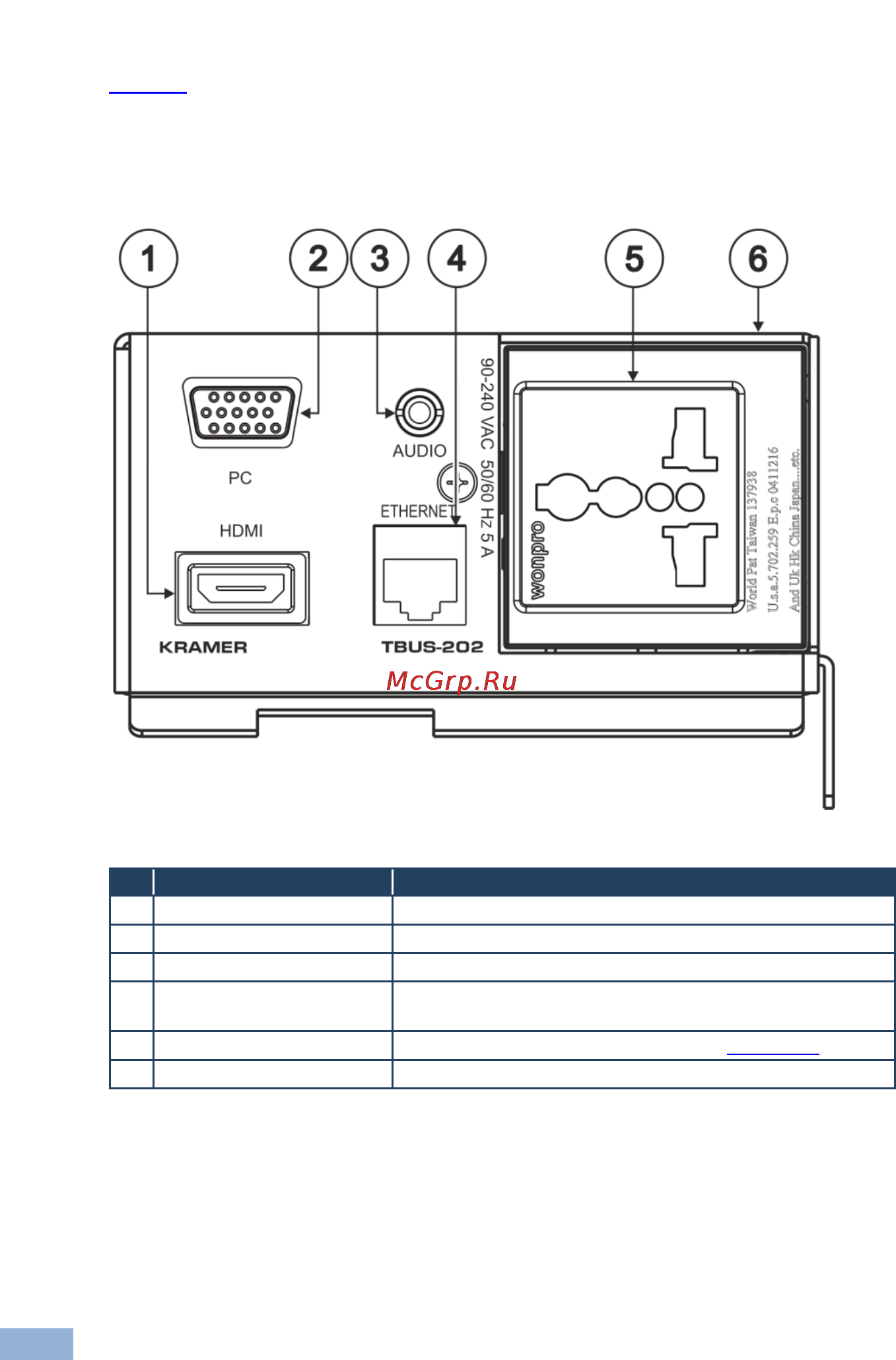

Figure 4 defines a connecting surface (one of two) and includes the universal
power socket (sold separately) for illustration purposes only (note that although
‘TBUS-202’ is printed on the panel, the name of the modular product is
TBUS-202xl):
Figure 4: TBUS-202xl Connecting Surface
#
Feature
Function
1 HDMI Connector Connect to an HDMI source
2 PC 15-pin HD Connector Connect to a computer graphics source
3 AUDIO 3.5mm Mini Jack Connects to an unbalanced stereo audio source
4 ETHERNET Connector Connects to the PC or other Controller through computer
networking
5 Power Socket Opening Suitable for various power sockets (see Section 4.2
6
)
Connecting Surface Pops up when gently pressing the lid
