11
Connecting the Units

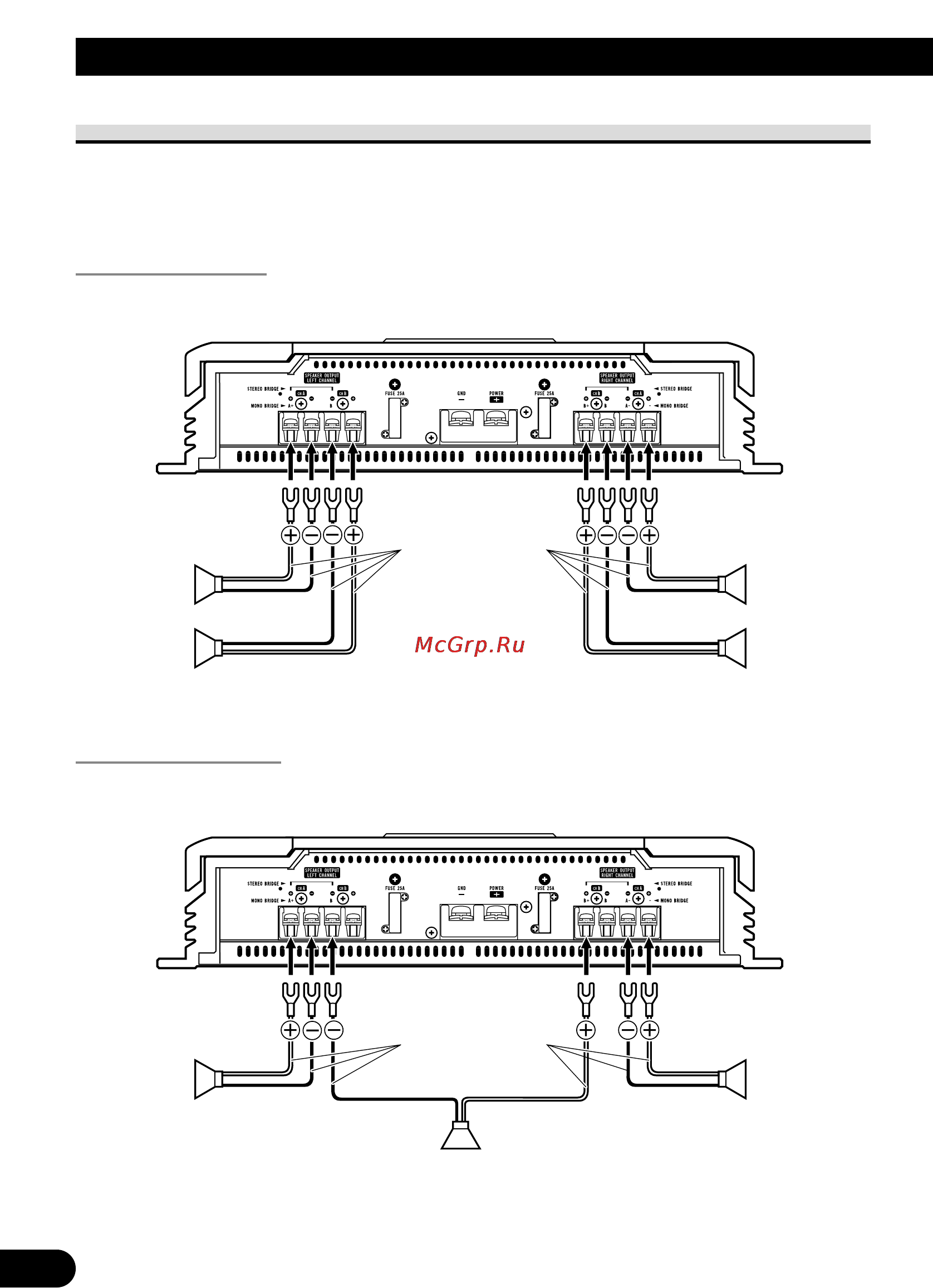

Connecting the Speaker Wires
You can use this product for 4-channel, 3-channel and 2-channel speaker output. Speaker
wire connection differs for each, so be careful to assure + and – polarity and left/right
(L/R) connections are correct.
Four-channel mode
Three-channel mode
Speaker (left) Speaker (right)
Speaker wires
(sold separately)
Speaker (monaural)
Speaker (left) Speaker (right)
Speaker wires
(sold separately)
