Smeg SRV876C6 [4/18] Positioning of the hob

Instructions for the installer

2 POSITIONING OF THE HOB

The following operation requires building and/or carpentry work so

must be carried out by a competent tradesman.

Installation can be carried out on various materials such as masonry,

metal, solid wood or plastic laminated wood as long as they are heat

resistant (T 90°C).

Never use silicone or other insulating products when installing the

appliance; use only the rubber gasket provided.

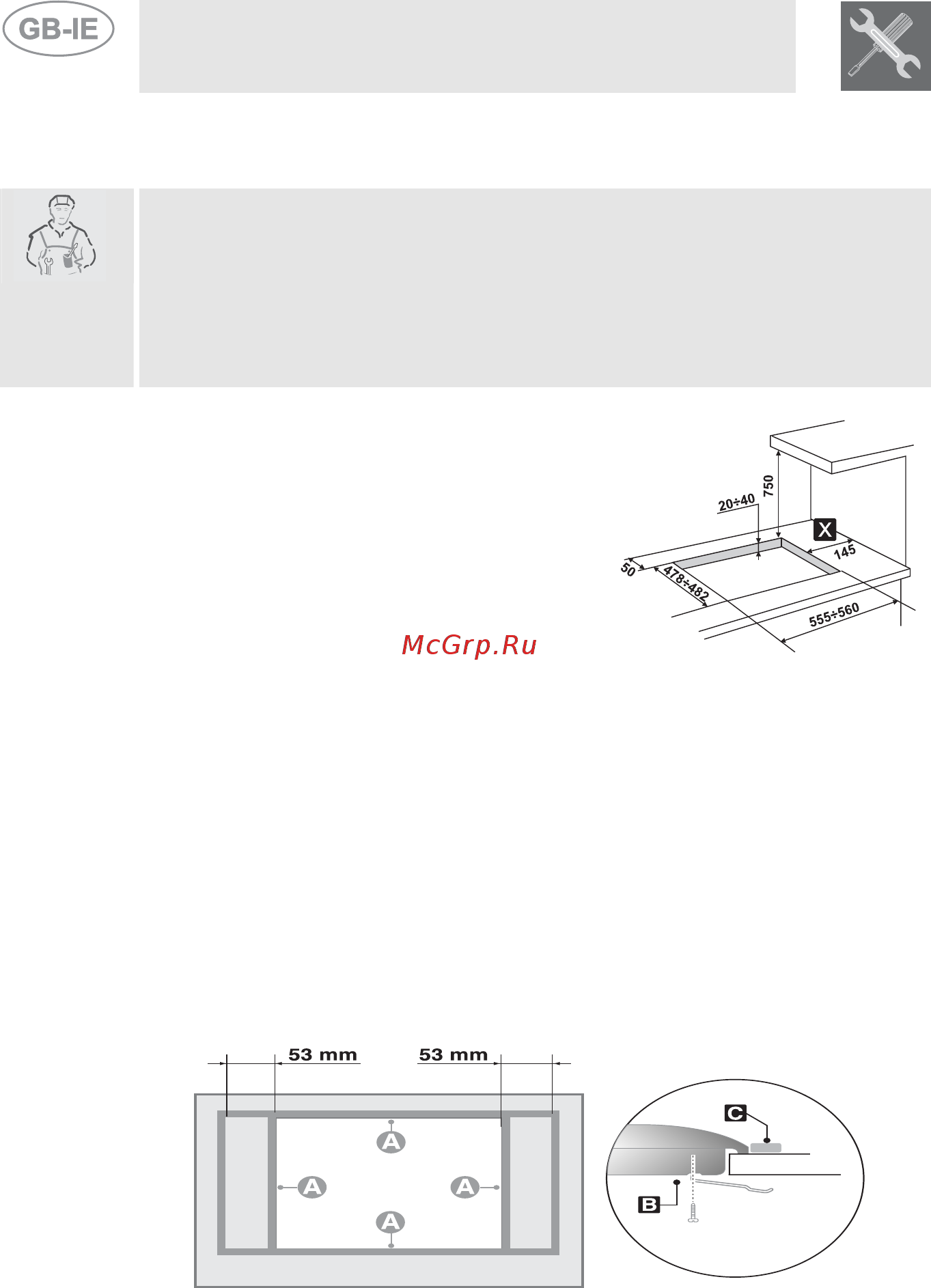

2.1 Attachment to support structure

Create an opening with the dimensions

shown in the figure in the top surface

of the counter, keeping a minimum

distance of 50 mm from the rear

border.

This device is classified "type Y" as

regards risks against fire and it can be

set adjacent to walls that are higher

than the work surface, provided that a

distance of 145 mm. is respected (as

shown in the figure) to prevent damage

due to overheating..

Make sure there is a minimum of 750 mm between the hot plate flames

and any shelf that may be installed directly above them. Accurately

position the gasket provided all around the outer edge of the hole in the

top surface as shown in the figures below, pressing it down so as to

make it adhere properly. Refer to the dimensions shown in the

diagram, bearing in mind that the sides A must be flush with the hole.

Fix the hob to the unit using the brackets B provided.

Carefully trim any excess from border C of the gasket. The distances in

the following drawing refer to the hole on the inner side of the gasket.
