ZVE 350 SD

OPERATION INSTRUCTIONS

● Installing and Removing the Battery Pack

1. Unscrew and remove the battery lid from the grip tail.

2. Take out the battery holder from the battery compartment, install 4xAA alkaline batteries or rechargeable batteries ac

cording to the direction indicated.

3. Put the battery holder back into the compartment following the indicated direction.

4. Put back the battery lid and fasten the screw.

● Connect the Unit with a Camera Probe

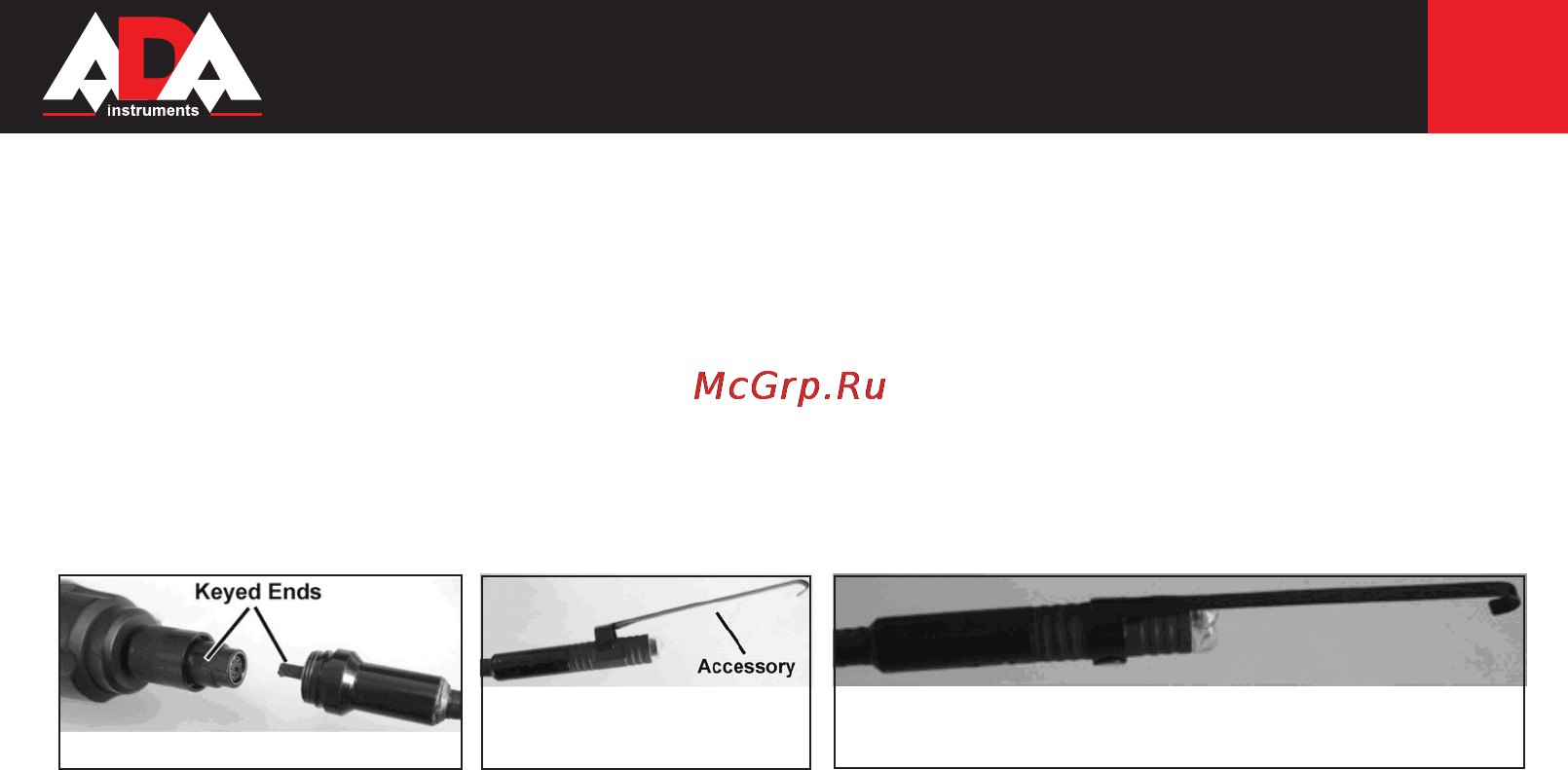

Connect the inspection unit with a camera probe before operation. To connect the probe to the unit, make sure the keyed

ends are properly aligned (Pic.6). Fasten the knob when they are aligned and connected.

Pic.6

● Accessories installation

A. Accessories installation of standard 12mm probe

For the three accessories shown in Pic.2 (magnetic tip, hook tip, mirror tip), hold the camera head and slip the semicircle

end of the accessory over the camera head as shown in Pic.7. Rotate the accessory by 90 degrees to a fixed position, as

shown in Pic.8.

Pic.7 Pic.8
