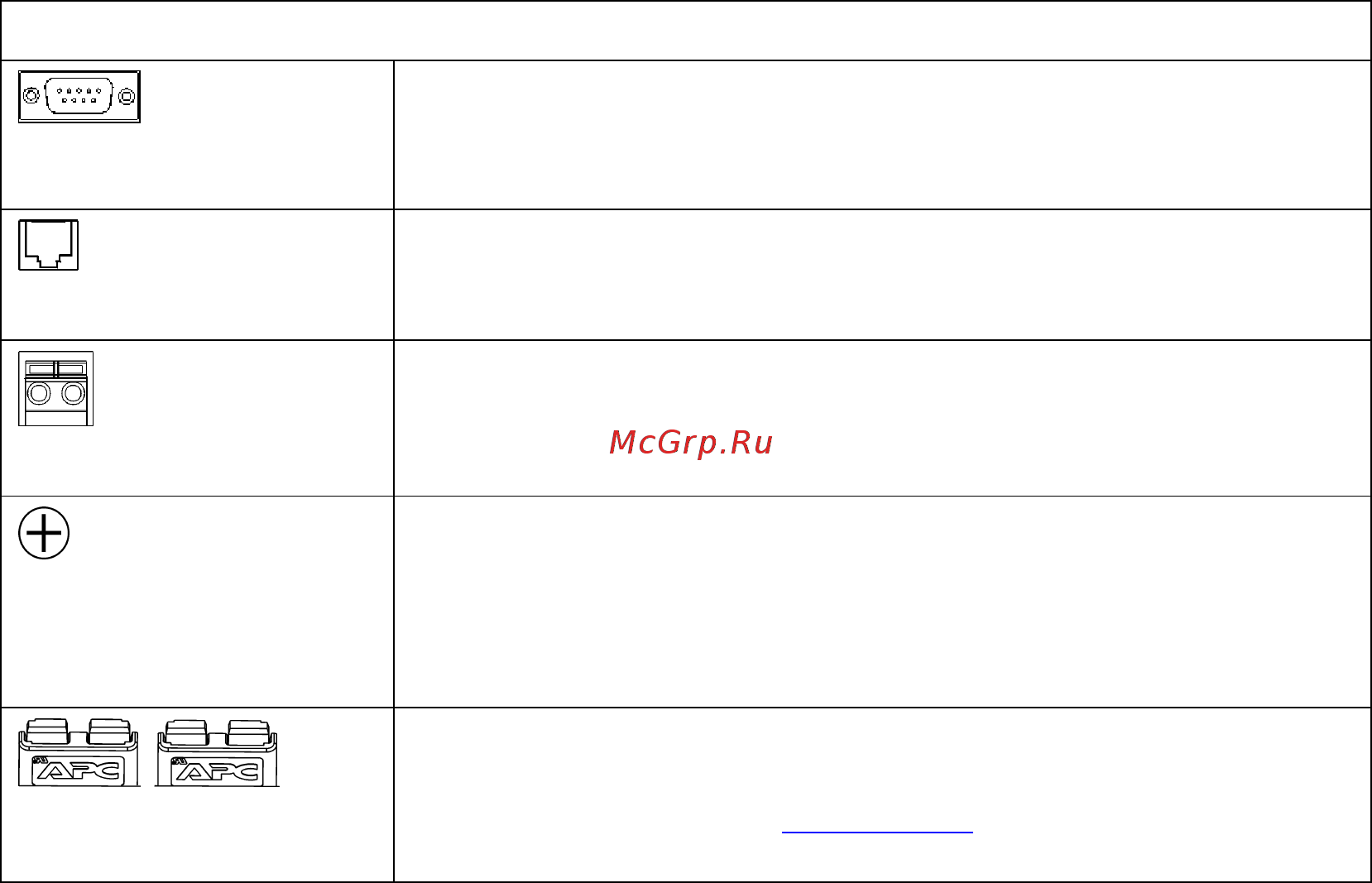

BASIC CONNECTORS
Serial Port
Power m
anagement software and interface kits can be used with the
UPS.
Use only interface kits supplied or approved by APC.
Ethernet Port
Co
nnect the UPS to the network.
(Located on the Network Management Card.)
EPO Terminal
The o
ptional Emergency Power Off (EPO) feature allows connected
loads to be immediately de-energized from a remote location, without
switching to battery operation (see EPO Option).
TVSS Screw
The
UPS features a transient voltage surge-suppression (TVSS) screw
for connecting the ground lead on surge suppression devices such as
telephone and network line protectors.
When connecting grounding cable, disconnect the unit from the utility
power outlet.
External Battery Pack
Conn
ectors
Optional external battery packs provide extended runtime during
power outages. These units support up to 10 external battery packs.
Refer to the APC Web site, www.apc.com
for the information on the
external battery pack, SURT192XLBP.
6
