OPERATION

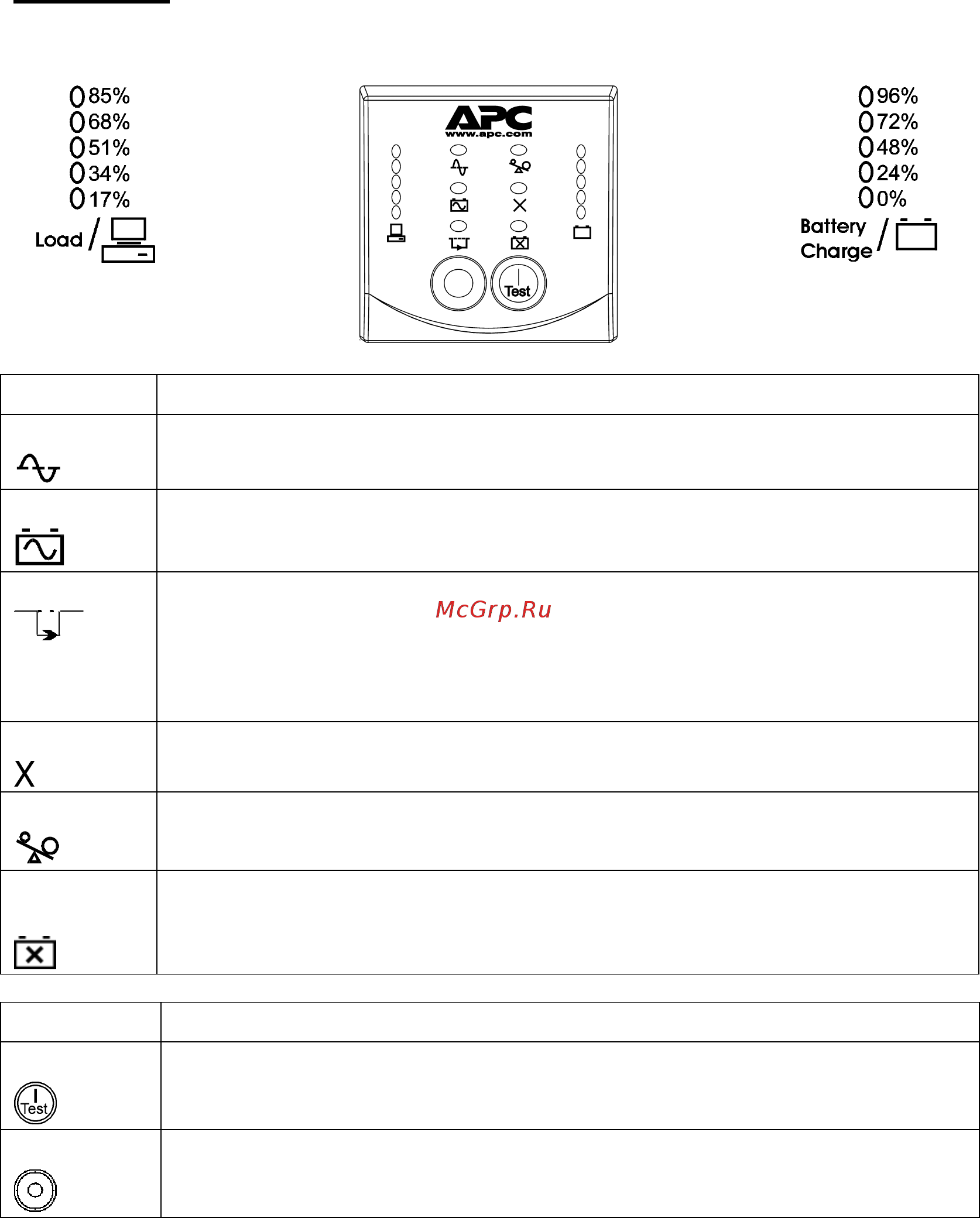

FRONT DISPLAY PANEL
Indicator Description
Online
The UPS is drawing utility power and performing double conversion to supply
power to connected equipment (see Troubleshooting).
On Battery
The UPS is supplying battery power to the connected equipment.
Bypass
The UPS is in bypass mode, sending utility power directly to connected equipment.
Bypass mode operation is the result of an internal UPS fault, an overload condition
or a user initiated command either through an accessory or the manual bypass
switch. Battery operation is not available while the UPS is in bypass mode (see
Troubleshooting).
Fault
The UPS detects an internal fault (see Troubleshooting).
Overload
The connected loads are drawing more power than the UPS power rating (see
Troubleshooting).
Replace
Battery
The battery is disconnected or must be replaced (see Troubleshooting).
Feature Function
Power On
Press this button to turn on the UPS. (Read on for additional capabilities.)
Power Off
Press this button to turn off the UPS.
