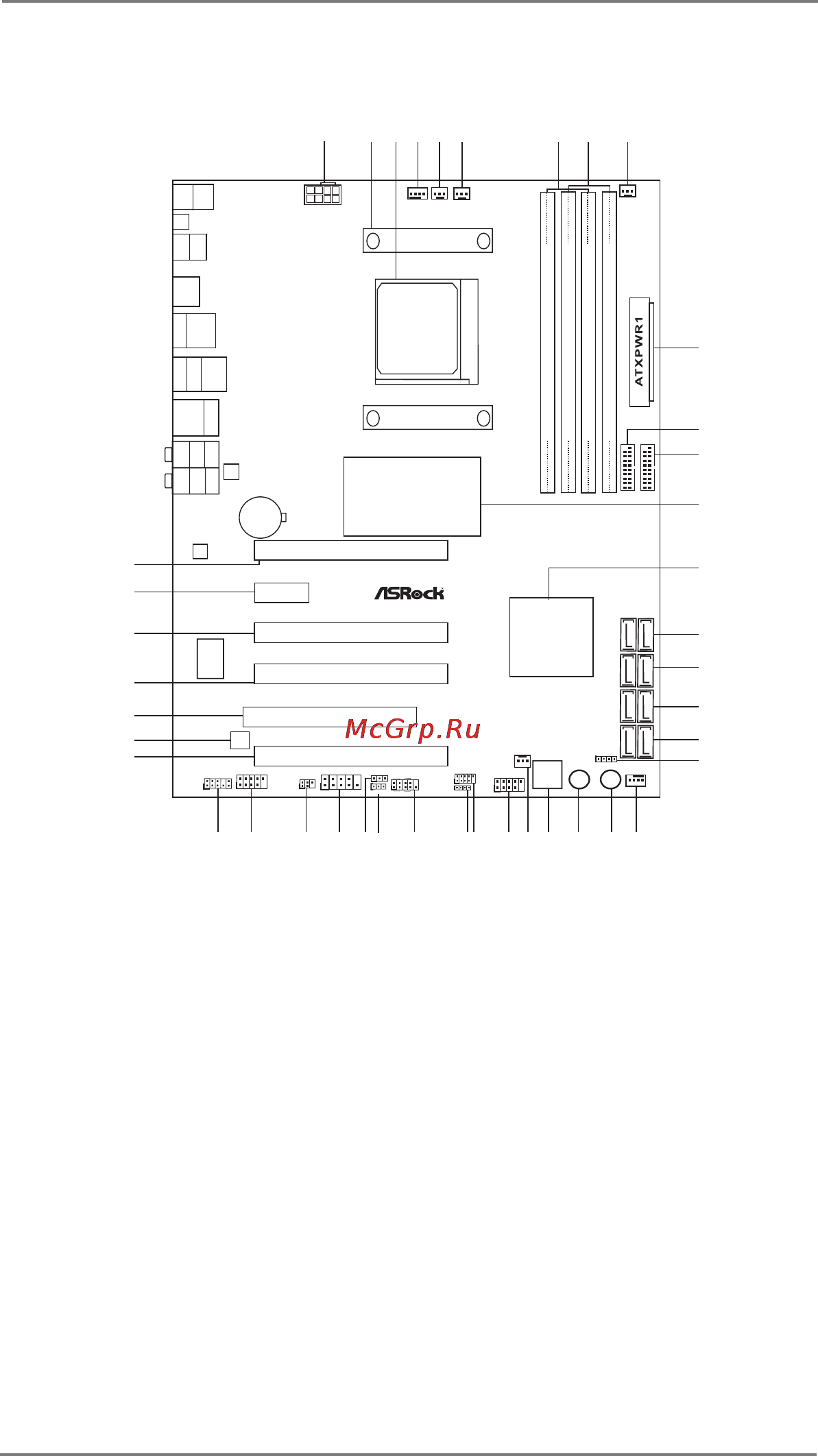

1.4 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 21 Power Switch (PWRBTN)
2 CPU Heatsink Retention Module 22 Reset Switch (RSTBTN)
3 AM3+ CPU Socket 23 Dr. Debug (LED)
4 CPU Fan Connector (CPU_FAN1) 24 Chassis Fan Connector (CHA_FAN3)
5 CPU Fan Connector (CPU_FAN2) 25 USB 2.0 Header (USB6_7)
6 Chassis Fan Connector (CHA_FAN2) 26 USB 2.0 Header (USB4_5)
7 2 x 240-pin DDR3 DIMM Slots 27 Consumer Infrared Module Header (CIR1)
(Dual Channel A: DDR3_A1, DDR3_B1) 28 System Panel Header (PANEL1)
8 2 x 240-pin DDR3 DIMM Slots 29 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel B: DDR3_A2, DDR3_B2) 30 Power LED Header (PLED1)
9 Power Fan Connector (PWR_FAN1) 31 Serial Port Connector (COM1)
10 ATX Power Connector (ATXPWR1) 32 Infrared Module Header (IR1)
11 USB 3.0 Header (USB3_6_7) 33 Front Panel IEEE 1394 Header
12 USB 3.0 Header (USB3_4_5) (FRONT_1394)
13 Northbridge Controller 34 Front Panel Audio Header (HD_AUDIO1)
14 Southbridge Controller 35 PCI Express 2.0 x16 Slot (PCIE5)
15 SATA3 Connector (SATA3_A1_A2) 36 SPI Flash Memory (32Mb)
16 SATA3 Connector (SATA3_5_6) 37 PCI Slot (PCI1)
17 SATA3 Connector (SATA3_3_4) 38 PCI Express 2.0 x16 Slot (PCIE4)
18 SATA3 Connector (SATA3_1_2) 39 PCI Express 2.0 x16 Slot (PCIE3)
19 Chassis Speaker Header (SPEAKER1) 40 PCI Express 2.0 x1 Slot (PCIE2)
20 Chassis Fan Connector (CHA_FAN1) 41 PCI Express 2.0 x16 Slot (PCIE1)
