ASRock 990fx extreme9 [75/78] Security screen
![ASRock 990fx extreme9 [75/78] Security screen](/views2/1159411/page75/bg4b.png)
75

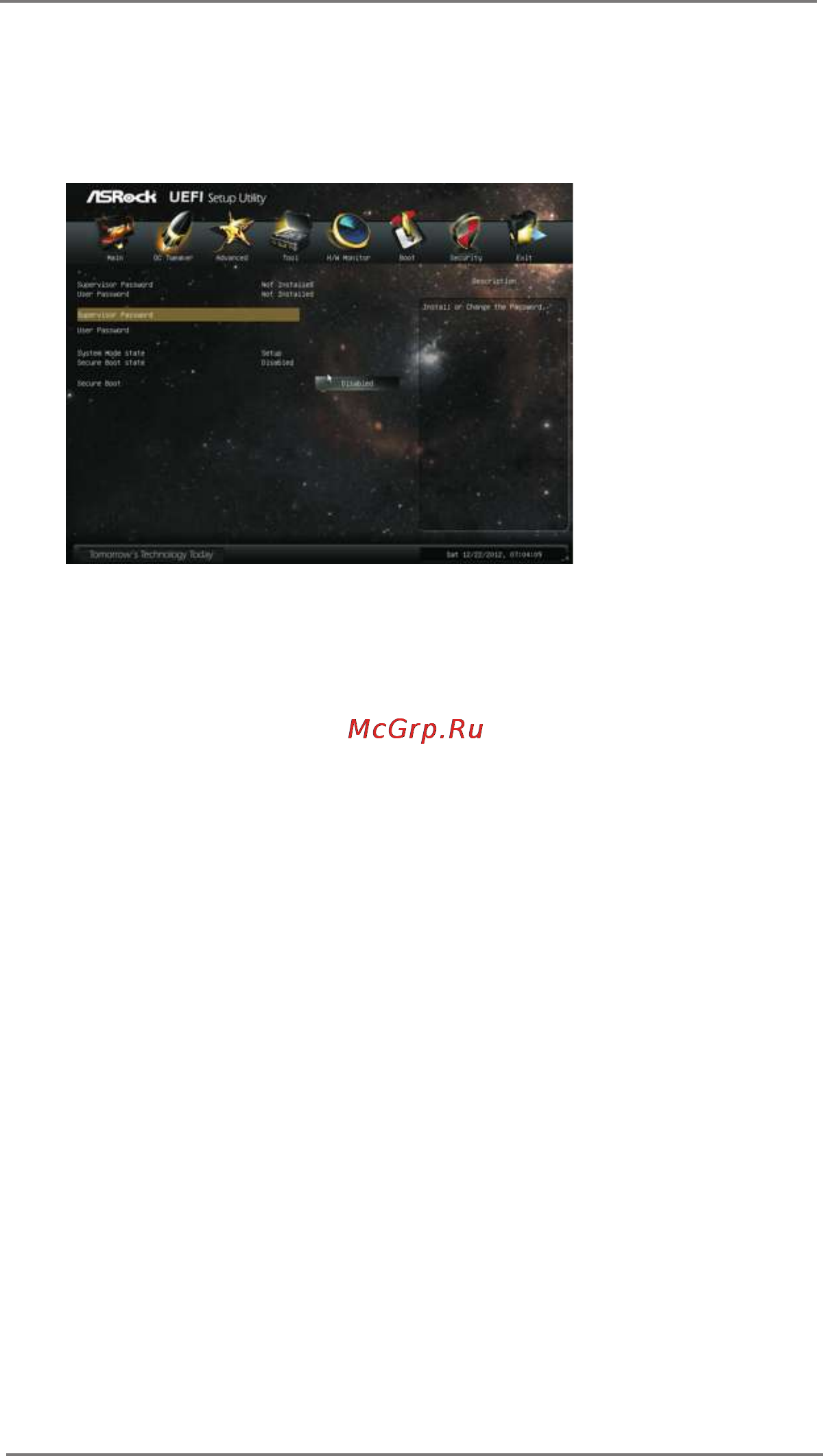

3.8 Security Screen
In this section, you may set or change the supervisor/user password for the system.
For the user password, you may also clear it.
Secure Boot
Use this to enable or disable Secure Boot. The default value is [Disabled].
