63

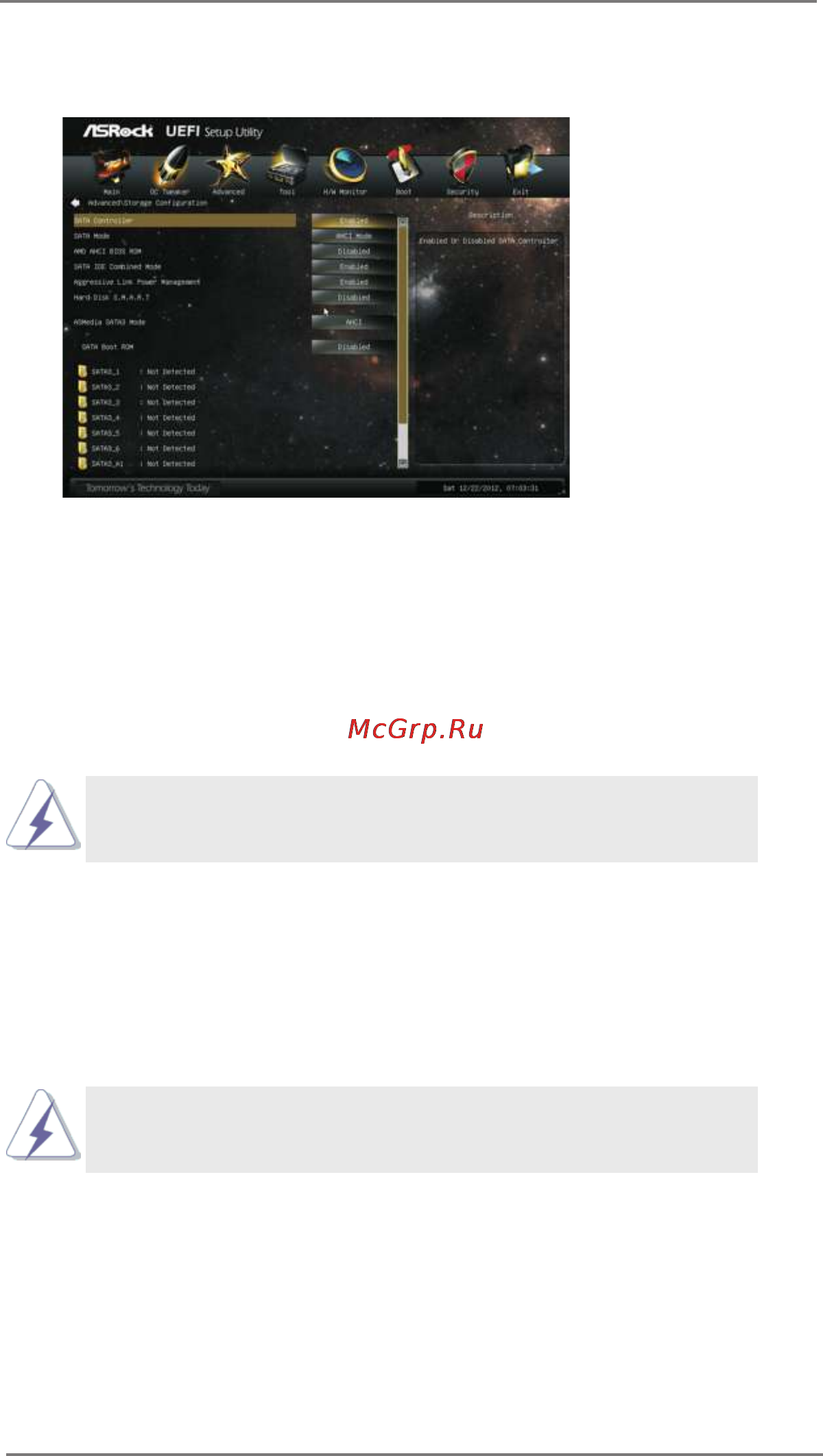

3.4.4 Storage Conguration
SATA Controller
This item is for SATA3_1 to SATA3_6 ports. Use this item to enable or dis-
able the “SATA Controller” feature.
SATA Mode
This item is for SATA3_1 to SATA3_6 ports.Use this item to adjust SATA
Mode. The default value of this option is [AHCI Mode]. Conguration op-
tions: [AHCI Mode], [RAID Mode] and [IDE Mode].
If you set this item to RAID mode, it is suggested to install SATA
ODD driver on SATA3_5 or SATA3_6 port.
AMD AHCI BIOS ROM
Use this item to enable or disable AMD AHCI BIOS ROM. The default
value of this option is [Disabled].
SATA IDE Combined Mode
This item is for SATA3_5 and SATA3_6 ports. Use this item to enable or
disable SATA IDE combined mode. The default value is [Enabled].
Aggressive Link Power Management
Use this item to congure Aggressive Link Power Management.
Hard Disk S.M.A.R.T.
Use this item to enable or disable the S.M.A.R.T. (Self-Monitoring, Analy-
sis, and Reporting Technology) feature. Conguration options: [Disabled],
[Auto] and [Enabled].
If you want to build RAID on SATA3_5 and SATA3_6 ports,
please disable this item.
