37
USB 2.0 Headers Besides four default USB 2.0
(9-pin USB4_5)
ports on the I/O panel, there
(see p.14 No. 26)
are two USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
2.0 ports.

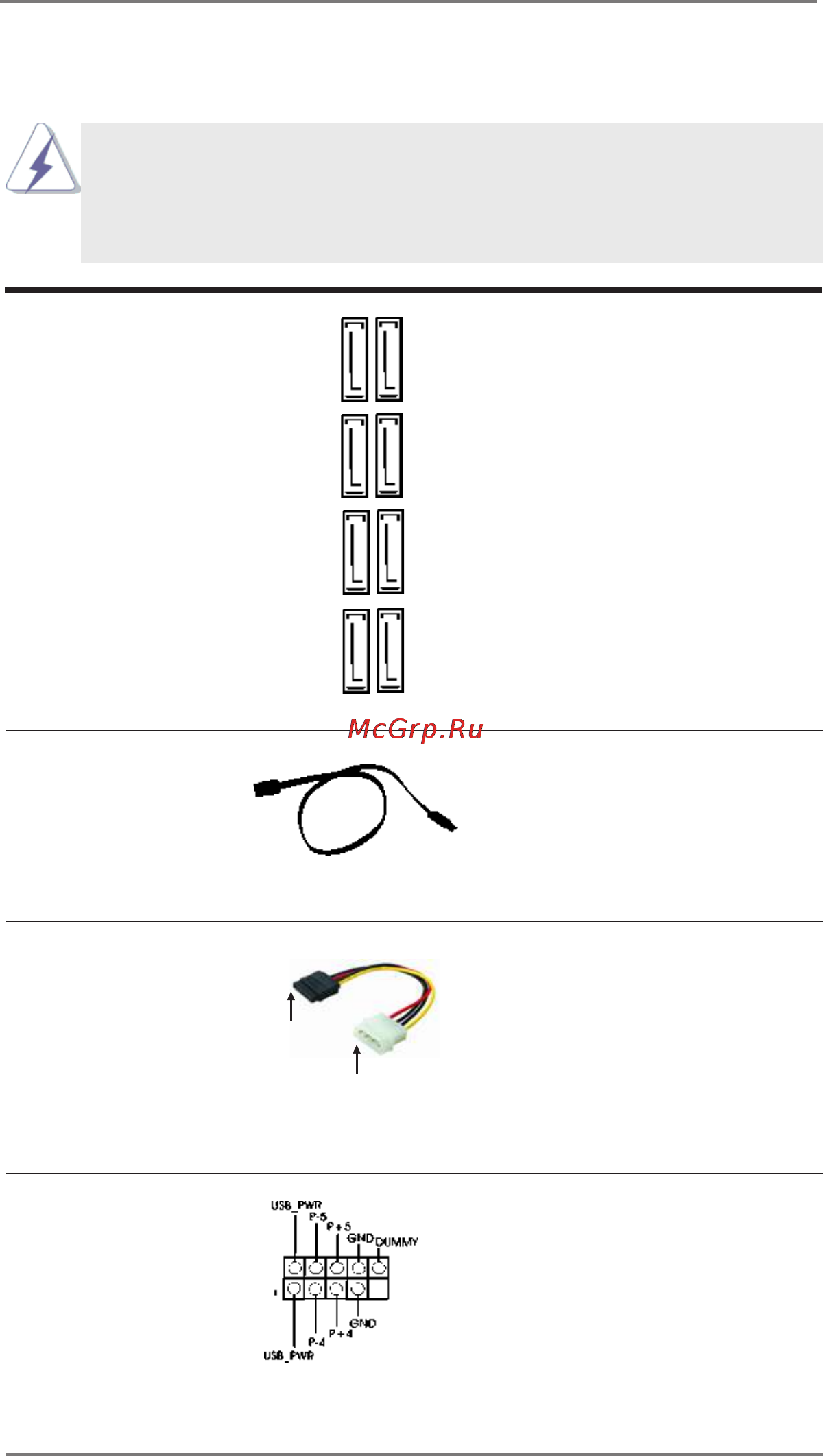

2.10 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional)
SATA3 hard disk or the SATA3
connector on this motherboard.
connect to the SATA
HDD power connector
connect to the
power supply
Serial ATA (SATA) Please connect the black end
Power Cable of SATA power cable to the
(Optional)
power connector on each drive.
Then connect the white end of
SATA power cable to the power
connector of the power supply.
Serial ATA3 Connectors These eight Serial ATA3
(SATA3_1_2: see p.14, No. 18)
(SATA3) connectors support
(SATA3_3_4: see p.14, No. 17)
SATA data cables for internal
(SATA3_5_6: see p.14, No. 16)
storage devices. The current
(SATA3_A1_A2: see p.14, No. 15)
SATA3 interface allows up to
6.0 Gb/s data transfer rate.
SATA3_1 SATA3_3 SATA3_5 SATA3_A1
SATA3_2 SATA3_4 SATA3_6 SATA3_A2
