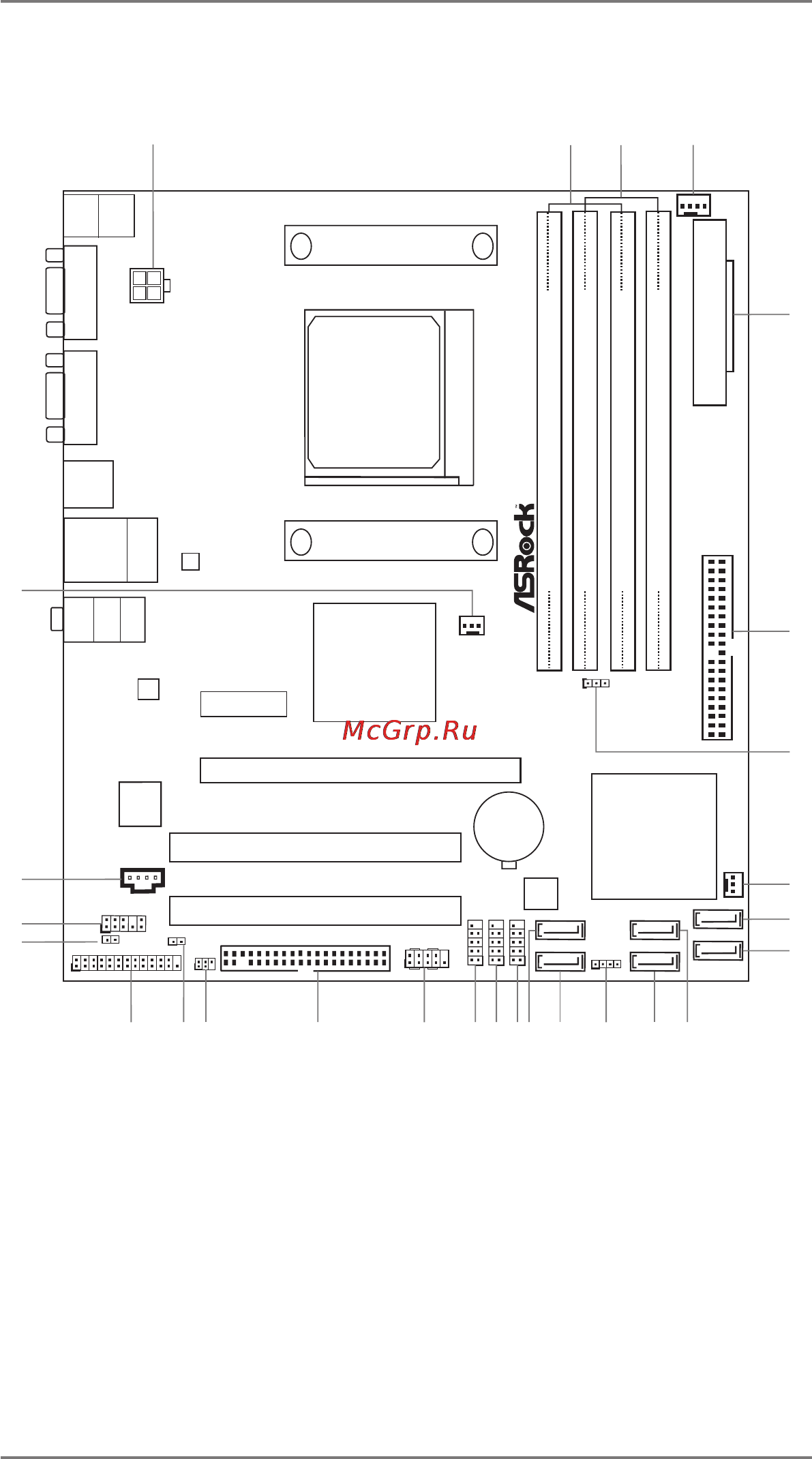

1.4 Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 14 SATA2 Connector (SATAII_1 (PORT 0))
2 2 x 240-pin DDR2 DIMM Slots 15 SATA2 Connector (SATAII_2 (PORT 1))
(Dual Channel: DDRII_1, DDRII_2) 16 USB 2.0 Header (USB8_9)
3 2 x 240-pin DDR3 DIMM Slots 17 USB 2.0 Header (USB6_7)
(Dual Channel: DDR3_A1, DDR3_B1) 18 USB 2.0 Header (USB4_5)
4 CPU Fan Connector (CPU_FAN1) 19 System Panel Header (PANEL1)
5 ATX Power Connector (ATXPWR1) 20 Floppy Connector (FLOPPY1)
6 Primary IDE Connector (IDE1) 21 Infrared Module Header (IR1)
7 Clear CMOS Jumper (CLRCMOS1) 22 Chassis Intrusion Header (CI1)
8 Chassis Fan Connector (CHA_FAN1) 23 Print Port Header (LPT1)
9 SATA2 Connector (SATAII_6 (PORT 5)) 24 SPDIF Out Connector (SPDIF_OUT1)
10 SATA2 Connector (SATAII_5 (PORT 4)) 25 Front Panel Audio Header (HD_AUDIO1)
11 SATA2 Connector (SATAII_4 (PORT 3)) 26 Internal Audio Connector (CD1)
12 SATA2 Connector (SATAII_3 (PORT 2)) 27 Power Fan Connector (PWR_FAN1)
13 Chassis Speaker Header (SPEAKER1)
Super
I/O
CMOS
BATTERY
ATXPWR1
AMD
760G
Chipset
PCI1
LAN
AUD IO
COD EC
1
CLR CMOS1
CPU _FAN 1
HD_ AUDIO 1
1
RoHS
16Mb
BIOS
AMD
SB710
Chipset
USB 4_5
1
PCIE2
960GC-GS FX
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
USB 2.0
T: USB0
B: USB1
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
FSB800
DDRII_1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
COM1
ATX1 2V 1
AM2/AM3/AM3+
SATAII _1 (POR T 0)
CI1
1
X
Fas t RAM
XFas t USB
X
Fas t LAN
PCIE1
PCI2
FSB800
DDRII_2 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
VGA1
IDE1
FLOPP Y1
CD1
SPD IF_O UT1
1
1
LPT 1
IR1
1
HDLE D RES ET
PLED PWRB TN
PANEL 1
1
USB 6_7
1
USB 8_9
1
PWR _FAN 1
CHA _FAN1
SATAII _2 (POR T 1)
SATAII _3 (POR T 2)
SATAII _4 (POR T 3)
SATAII _5 (POR T 4)
SATAII _6 (POR T 5)
SPE AKER 1
1
7
8
9
10
14
16
1112
13
17
19
20
2122
23 18
15
25
2
3
4
6
5
1
27
24
26
