ASRock 960gc-gs fx [17/52] Installing a dimm

DDR3_A1 DDR3_B1

(Black Slot) (Black Slot)

2 memory modules SS SS

2 memory modules DS DS

DDRII_1 DDRII_2

(Yellow Slot) (Yellow Slot)

2 memory modules SS SS

2 memory modules DS DS

notch

break

Installing a DIMM

Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

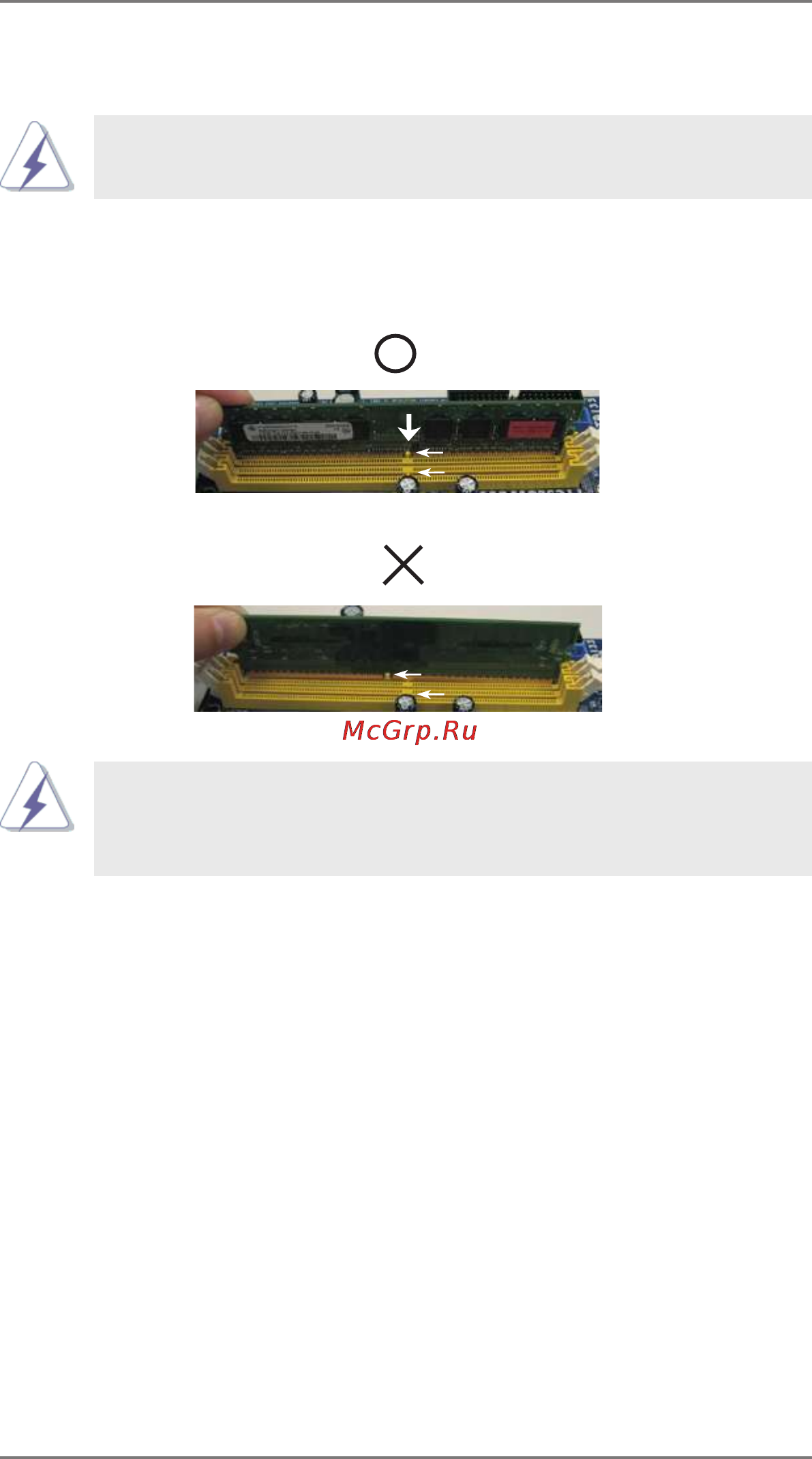

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

break on the slot.

The DIMM only ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated.

notch

break
