9
English
Z170 Extreme7+

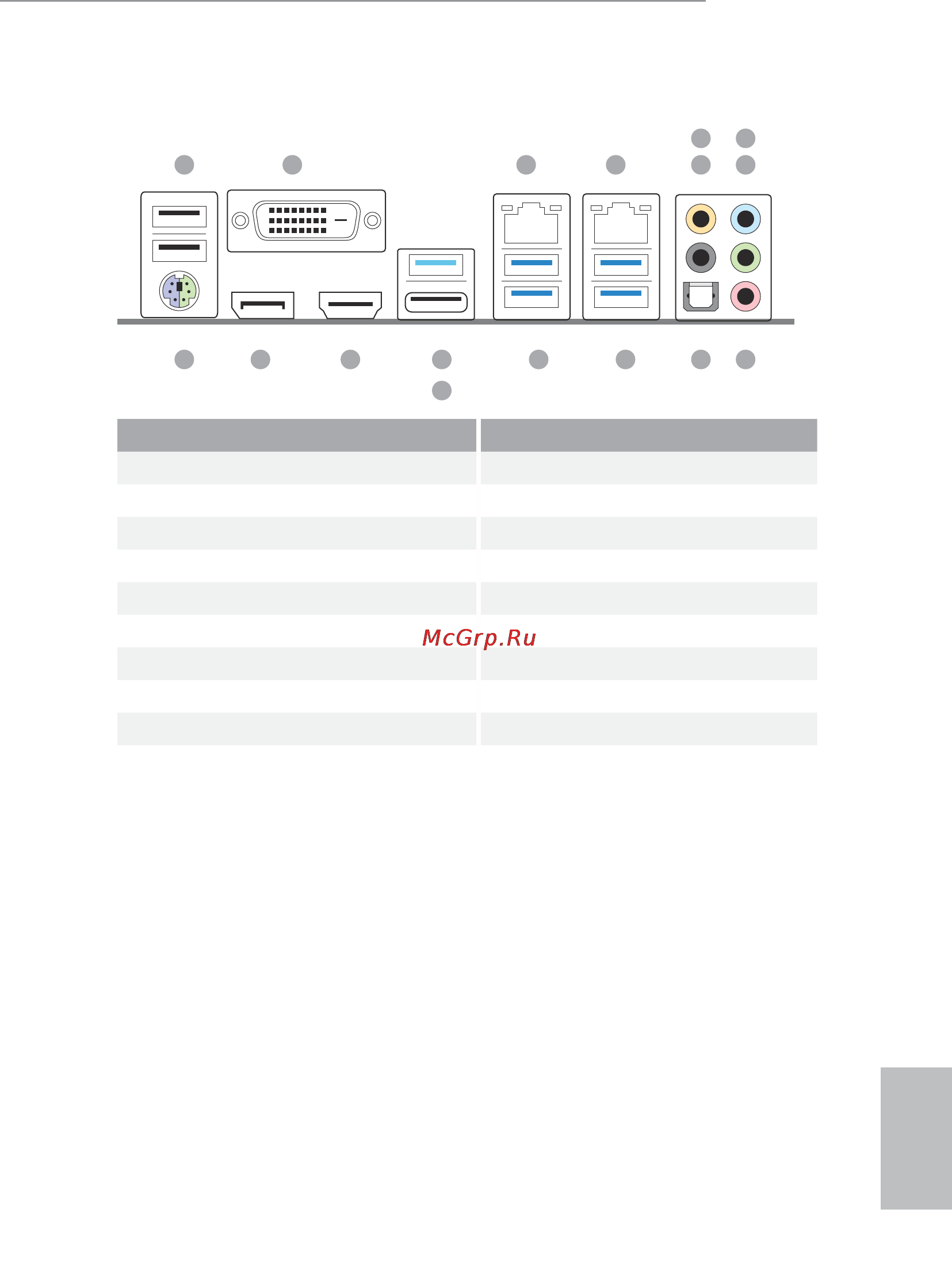

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 10 Optical SPDIF Out Port
2 DVI-D Port 11 USB 3.0 Ports (USB3_12)
3 LAN RJ-45 Port (Intel® I219V)* 12 USB 3.0 Ports (USB3_34)
4 LAN RJ-45 Port (Intel® I211AT)* 13 USB 3.1 Type-A Port (USB31_TA_1)
5 Central / Bass (Orange) 14 USB 3.1 Type-C Port (USB31_TC_1)
6 Rear Speaker (Black) 15 HDMI Port
7 Line In (Light Blue) 16 DisplayPort 1.2
8 Front Speaker (Lime)** 17 PS/2 Mouse/Keyboard Port
9 Microphone (Pink)
1
17 91013
14
12 111516
2 3 6
5
8
7
4
