ASRock z170 extreme7+ [83/99] Super io coniguration
![ASRock z170 extreme7+ [83/99] Super io coniguration](/views2/1159490/page83/bg53.png)
77
English
Z170 Extreme7+

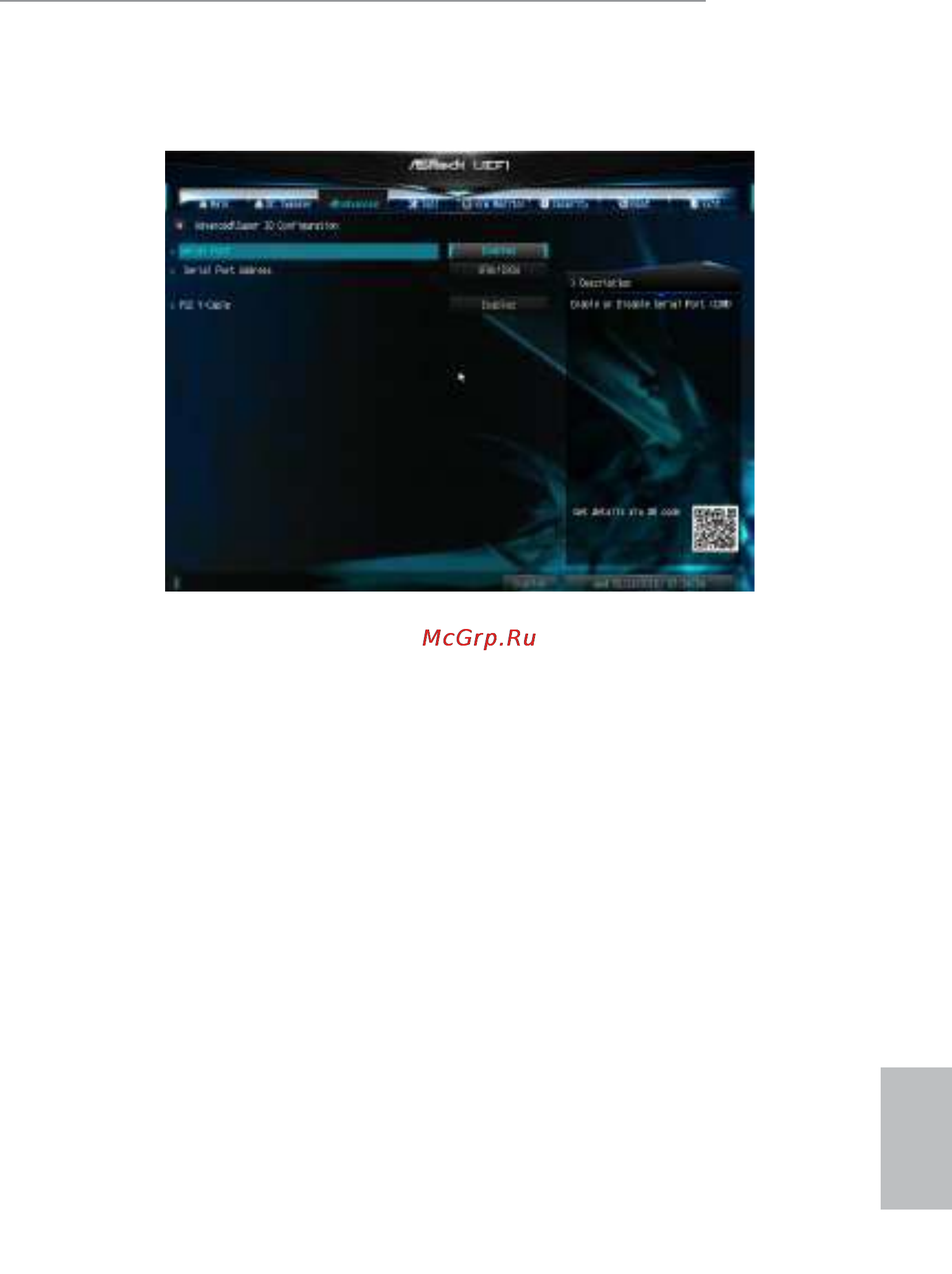

4.4.5 Super IO Conguration
Serial Port
Enable or disable the Serial port.
Serial Port Address
Select the address of the Serial port.
PS2 Y-Cable
Enable the PS2 Y-Cable or set this option to Auto.
