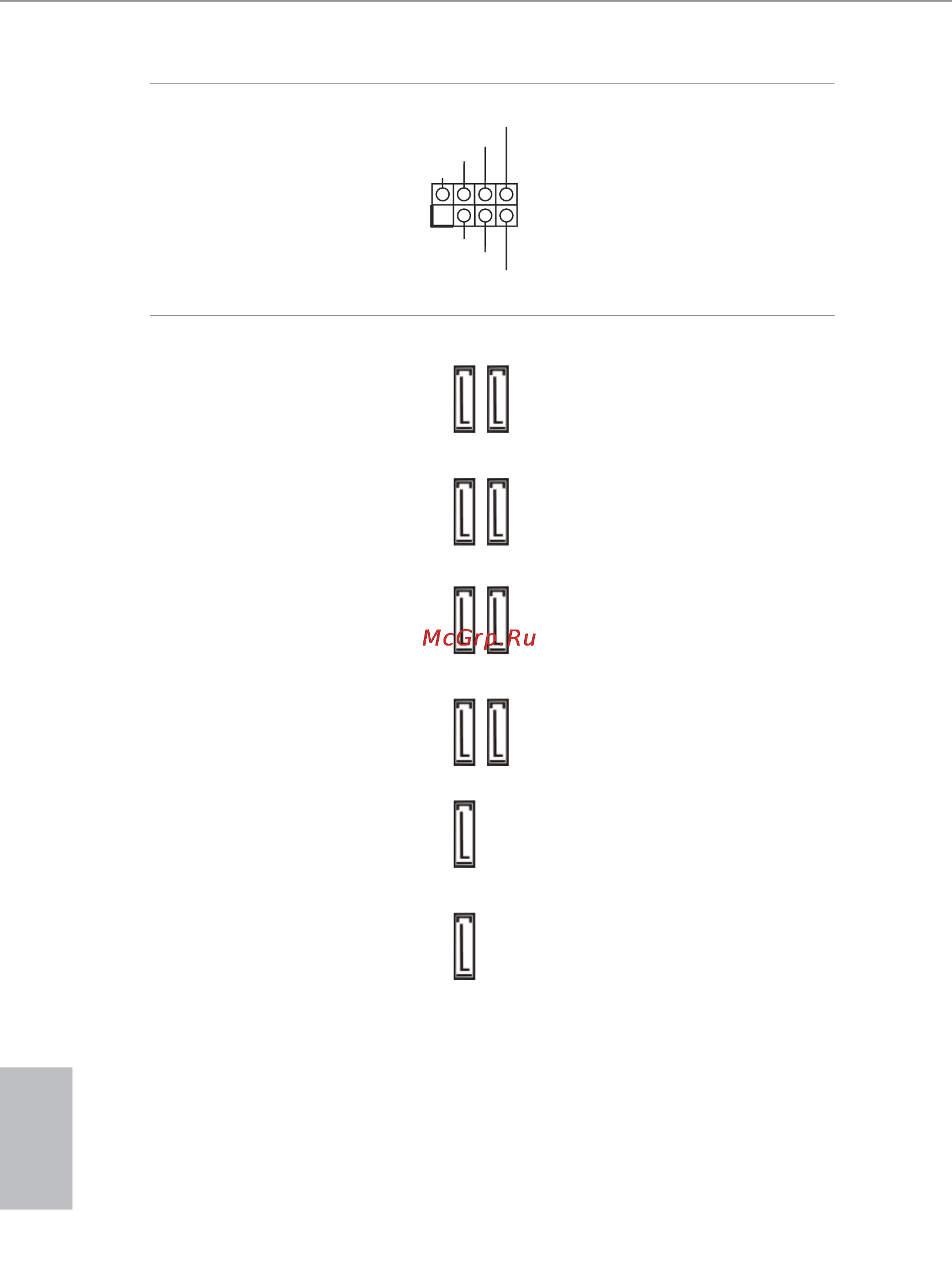

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.7, No. 24)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0_2:
see p.7, No. 15)
(SATA3_1_3:
see p.7, No. 16)
(SATA3_4:
see p.7, No. 21)
(SATA3_5:
see p.7, No. 22)
(SATA3_A1_A2:
see p.7, No. 20)
(SATA3_A3_A4:
see p.7, No. 19)
ese ten SATA3
connectors support SATA
data cables for internal
storage devices with up
to 6.0 Gb/s data transfer
rate. e SATA3_0,
SATA3_1 are shared with
the SATA_EXP0. e
SATA3_2, SATA3_3 are
shared with the SATA_
EXP1. e SATA3_4,
SATA3_5 are shared with
the SATA_EXP2.
To minimize the boot
time, use Intel® Z170
SATA ports (SATA3_0)
for your bootable devices.
1
+5V
DUMMY
PLED+
PLED+
PLED-
DUMMY
SPEAKER
SATA3_A3SATA3_4 SATA3_A1SATA3_5
SATA3_0SATA3_1
SATA3_A4SATA3_A2
SATA3_2SATA3_3
